Cream Storage Tank with Agitator And Bottom Emulsifier G-SD series SS storage tank

G-SD series chemical reactor / mixing & blending tank
heating jacket for steam / hot water / thermal insulation
top entry agitator and bottom emulsifier

Capacity:
Heating by:
Working pressure:
Wet Material:
Emulsifier:
Quantity:

500L / 1000L blending tank for hand wash gel / cream

  • Part 1. Similar product

Bottom emulsifier

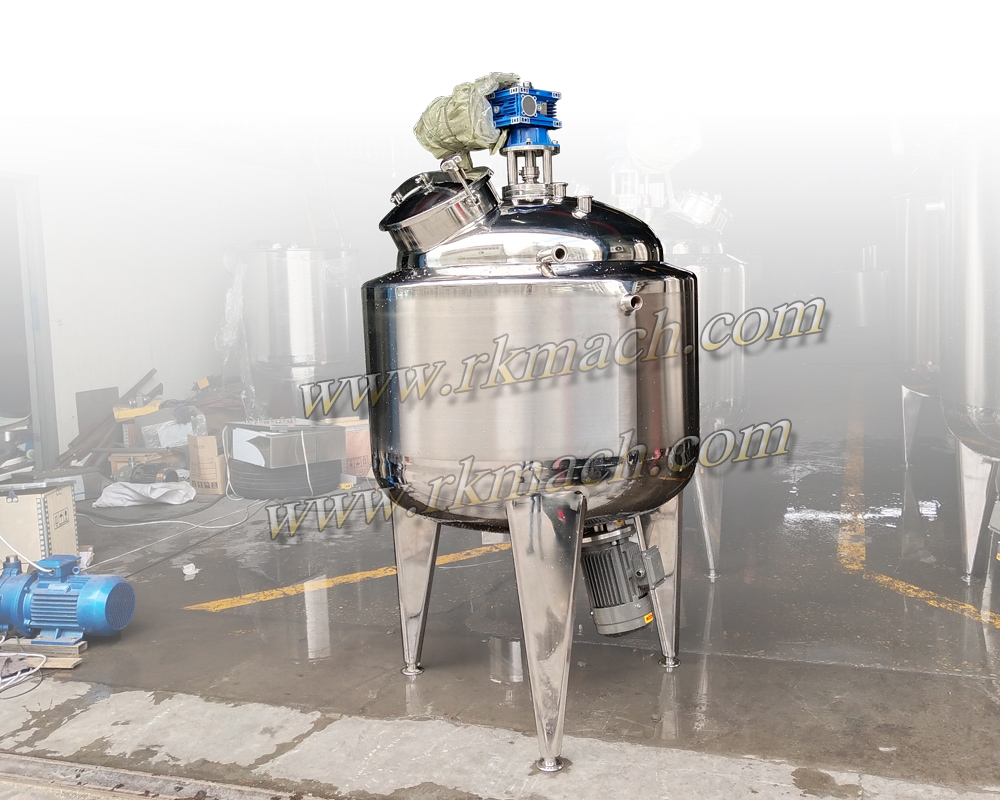

Bottom emulsifier

  • Part 2. Product structure

This tank can be made by stainless steel 304 / SS316L. With sealed top and sanitary manway on tank top. Two motors being used on this tank one for bottom homogenizer / emulsifier3000rpm speed, and the other is for top mount low speed agitator, 36rpm. Inlet and outlet nozzles to be clamp type.

Tips: explosion-proof  motors available under request.



  • Part 3 Main specification



S.N.

Item

G-SD T500L

G-SD T1000L


1

Working capacity

500 Liter

1,000 Liter


2

Full capacity

600 Liter

1,260 Liter


3

Working pressure

Room pressure

Room pressure


4

Design pressure

Room pressure

Room pressure


5

Contact Material

SS304

SS304


6

Bottom entry homogenizer

2.2kw 2 Polos, 3000rpm

4kw 2 Polos, 3000rpm


SS304 rotor and stator

SS304 rotor and stator


claw stator

claw stator


7

Blender

2.2kw, 4 polos, 36rpm

3kw, 4 polos, 36rpm



Anchor type mixer

Anchor type mixer


8

Voltage

380V 50Hz 3Phase

380V 50Hz 3Phase


9

Base support

SS304, for blender only

SS304, for blender only


10

Inlet port

2 Nos, Φ51, clamp

2 Nos, Φ51, clamp


11

Vent port

1 Nos, Φ51, clamp

With 0.22µm filter

1 Nos, Φ51, clamp

With 0.22µm filter


11

Drainage port

1 Nos, Φ51, clamp

1 Nos, Φ51, clamp


12

Polish

Inner mirror polish

outer mate

Inner mirror polish

outer mate


13

Leg material

SS304, 300mm to floor

SS304, 300mm to floor


14

Dimension

Tank body

Φ900×600mm

Φ1100×1000mm


Thickness

3mm

4mm


Overall size

Φ900×2100mm

Φ1100×2400mm


15

Price

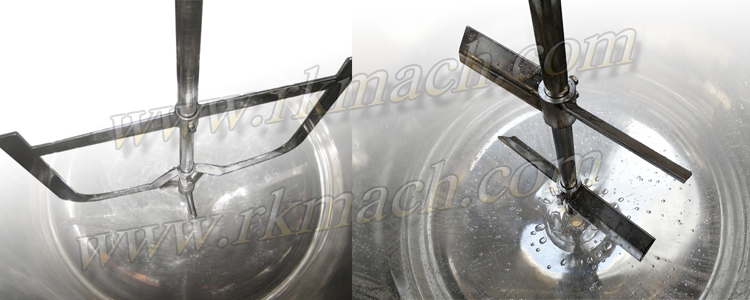

l  Anchor mixer & propeller mixer

anchor & propeller

l  Package – wooden case or nylon according to the loading method.

tank packing

l  Warranty:

12 months from the day goods arrived at the destination sea port.

l  Certificate – CE

Model G-SD in the CE certificate is the one we are going to offer to you.

CE certificate in next page.

CE certificate
