TYNL / YAC
Standard design
Wetted material: SS304 / SS316 / SS316ti
1.4571 / 0Cr18Ni12MoTi / 022Cr17Ni12Mo2
Stainless steel toggle with brass insert
Natural rubber gasket
Surface: unpolished, pickled
Options
Various surface quality (glass-bead blasted, pickled or polished up to Ra<0.4μm)
Neck length up to 200mm
Neck thickness up to 6mm
With swivel feature
With various limit or proximity switches
Neck shaped to match tank diameter
oval manway door manhole cover, 0~5bar pressure
inwards opening
Size | L1 | L2 | H | t1 | t | Max pre. |
390 x 490 | 390 | 490 | 175 | 3 | 4 | <0.5Mpa |
480 x 580 | 480 | 580 | 133/155 | 4 | 5 | <0.5Mpa |
550 x 450 | 550 | 450 | 80 | 4 | 5 | <0.5Mpa |
565 x 465 | 565 | 465 | 100 | 4 | 5 | <0.5Mpa |
580 x 480 | 580 | 480 | 133 | 4 | 5 | <0.5Mpa |

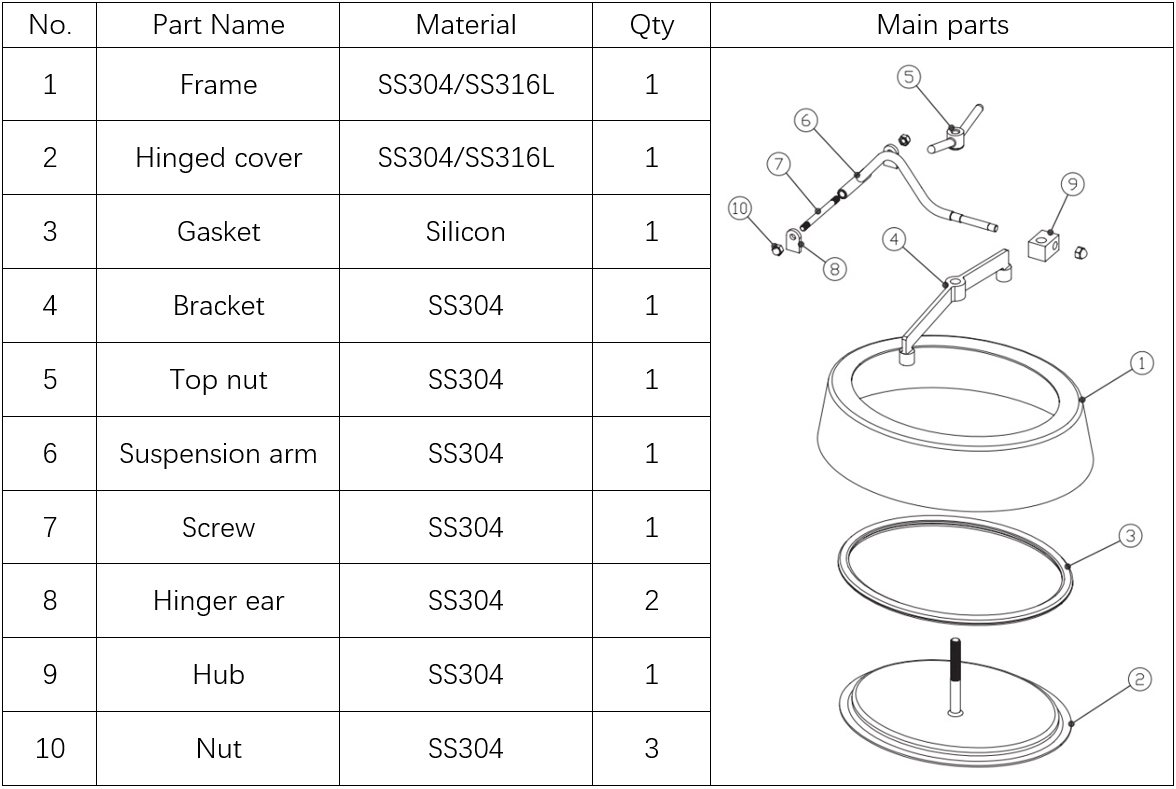

here are the main parts of this manway cover
Standard design
Wetted material: SS304 / SS316 / SS316ti
1.4571 / 0Cr18Ni12MoTi / 022Cr17Ni12Mo2
Stainless steel toggle with brass insert
Natural rubber gasket
Surface: unpolished, pickled
Options
Various surface quality (glass-bead blasted, pickled or polished up to Ra<0.4μm)
Neck length up to 200mm
Neck thickness up to 6mm
With swivel feature
With various limit or proximity switches
Neck shaped to match tank diameter
oval manway door manhole cover, 0~5bar pressure
inwards opening
Size | L1 | L2 | H | t1 | t | Max pre. |
390 x 490 | 390 | 490 | 175 | 3 | 4 | <0.5Mpa |
480 x 580 | 480 | 580 | 133/155 | 4 | 5 | <0.5Mpa |
550 x 450 | 550 | 450 | 80 | 4 | 5 | <0.5Mpa |
565 x 465 | 565 | 465 | 100 | 4 | 5 | <0.5Mpa |
580 x 480 | 580 | 480 | 133 | 4 | 5 | <0.5Mpa |
here are the main parts of this manway cover

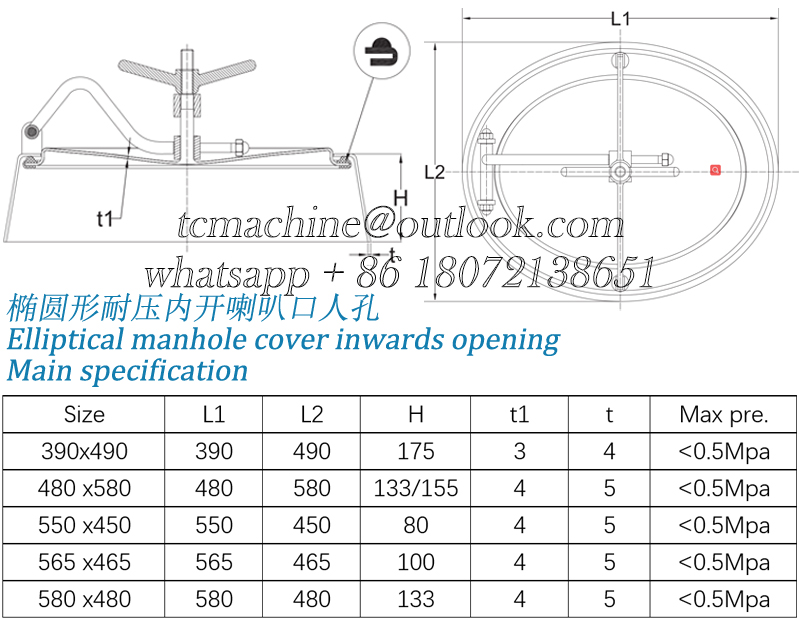

0~5bar pressure oval type manway door inwards opening drawing and sketch
0~5bar pressure oval type manway door inwards opening drawing and sketch

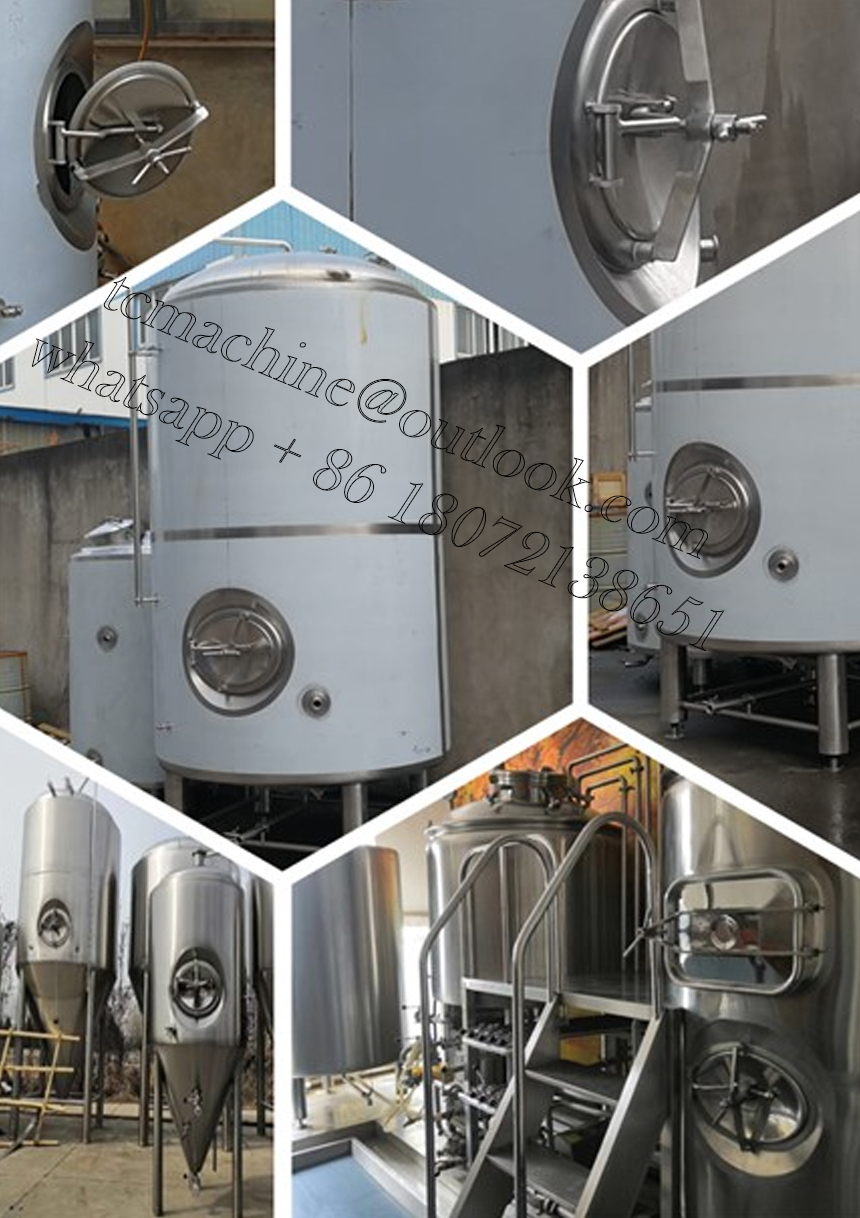

inwards opening oval manway door on fruit wine fermenters / beer fermentation tanks
inwards opening oval manway door on fruit wine fermenters / beer fermentation tanks
