Size: | |
---|---|
Material: | |
Working presure: | |
Availability: | |
Quantity: | |
TYN / YAC
oval manway door manhole cover, 0~3bar pressure
inwards opening
1.4301 / 06Cr19Ni10 / SUS304 / ASME SS 304
1.4404 / 022Cr17Ni12Mo2 / SUS316L / ASME SS304
Size | L1 | L2 | H | t | t1 | Max pre. |
310x215 | 310 | 215 | 70 | 4~6 | 2.5 | <0.3Mpa |
430x330 | 430 | 330 | 70 | 4~10 | 2.5 | <0.3Mpa |
530x430 | 530 | 430 | 70 | 4~10 | 3 | <0.3Mpa |
635x525 | 635 | 525 | 70 | 4~12 | 3 | <0.3Mpa |

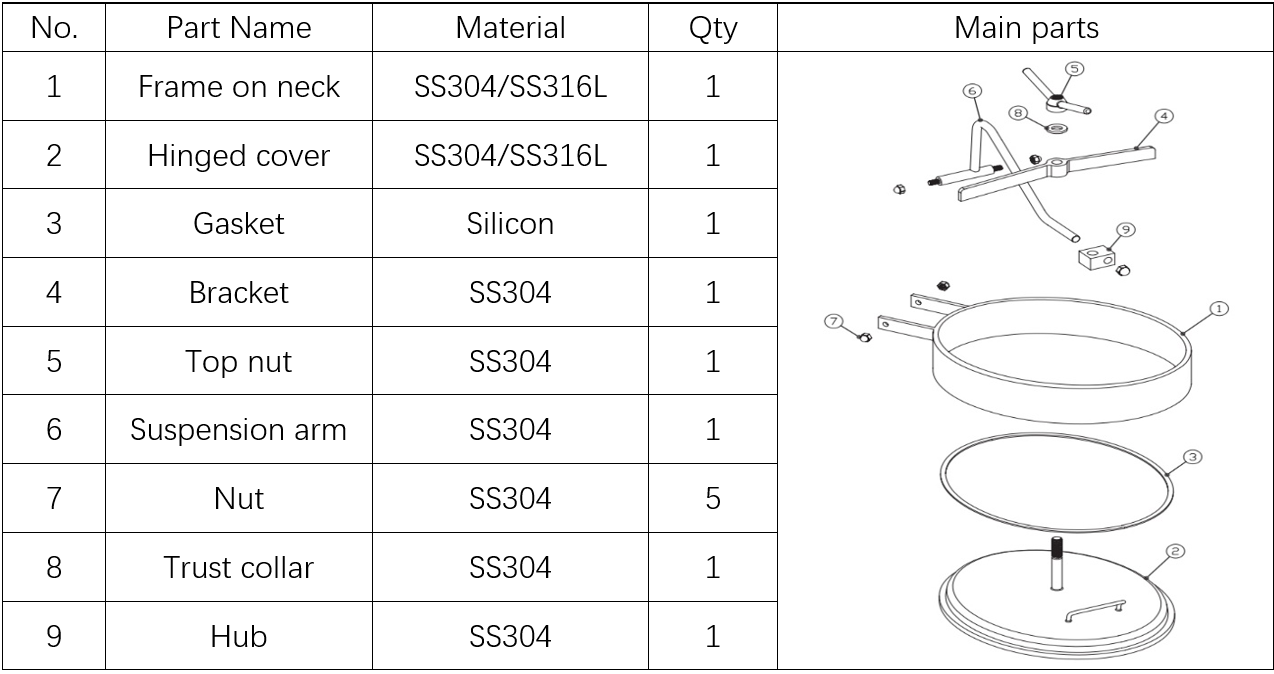

here are the main parts of this manway cover
oval manway door manhole cover, 0~3bar pressure
inwards opening
1.4301 / 06Cr19Ni10 / SUS304 / ASME SS 304
1.4404 / 022Cr17Ni12Mo2 / SUS316L / ASME SS304
Size | L1 | L2 | H | t | t1 | Max pre. |
310x215 | 310 | 215 | 70 | 4~6 | 2.5 | <0.3Mpa |
430x330 | 430 | 330 | 70 | 4~10 | 2.5 | <0.3Mpa |
530x430 | 530 | 430 | 70 | 4~10 | 3 | <0.3Mpa |
635x525 | 635 | 525 | 70 | 4~12 | 3 | <0.3Mpa |
here are the main parts of this manway cover

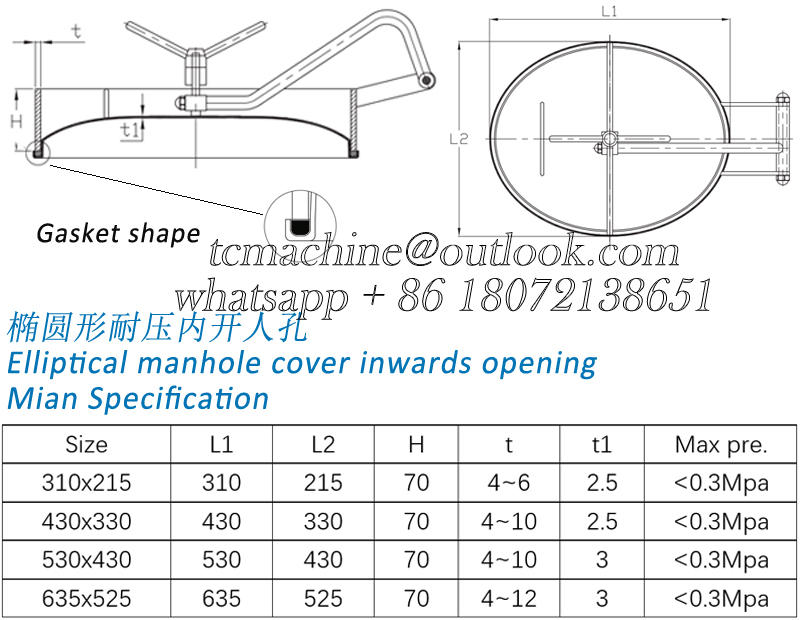

0~3bar pressure oval type manway door inwards opening drawing
0~3bar pressure oval type manway door inwards opening drawing

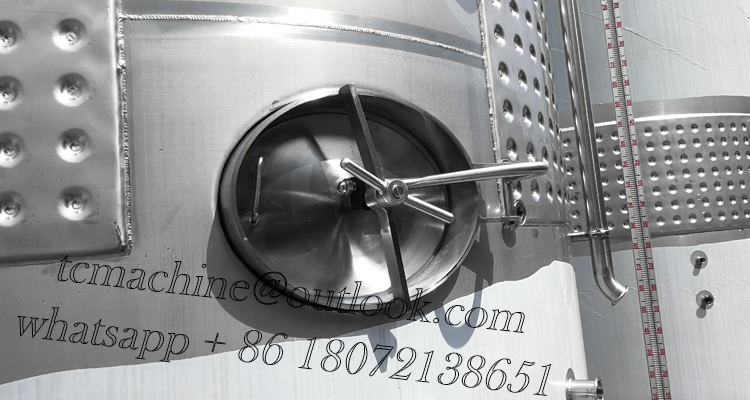

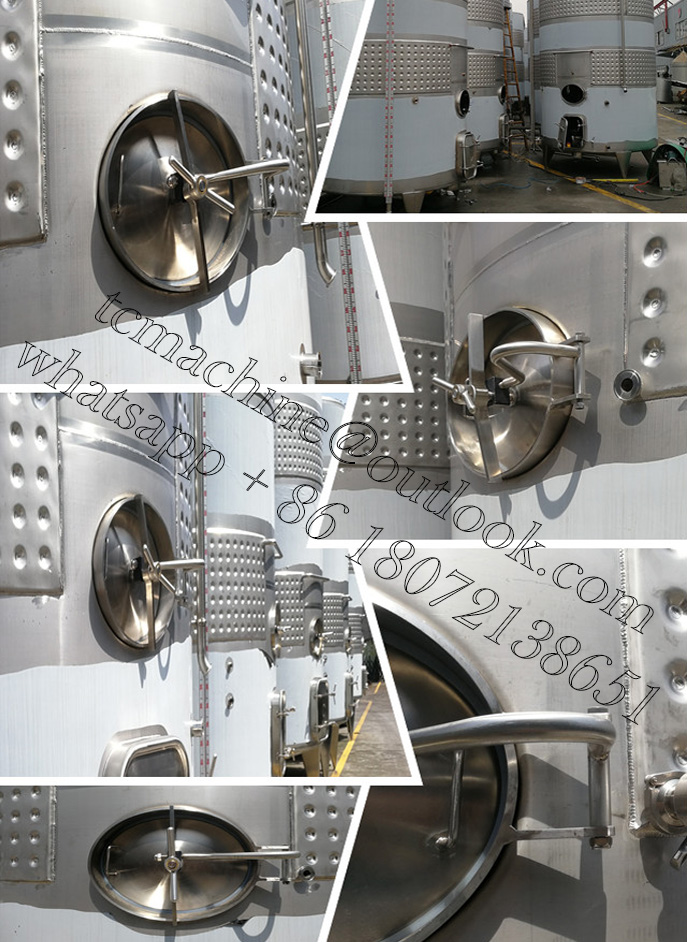

inwards opening oval manway door on fruit wine fermenters / beer fermentation tanks
inwards opening oval manway door on fruit wine fermenters / beer fermentation tanks
here is the video of a 530x330mm oval manhole cover on YouTube
You can also click this picture to see the video on YouTube directly.

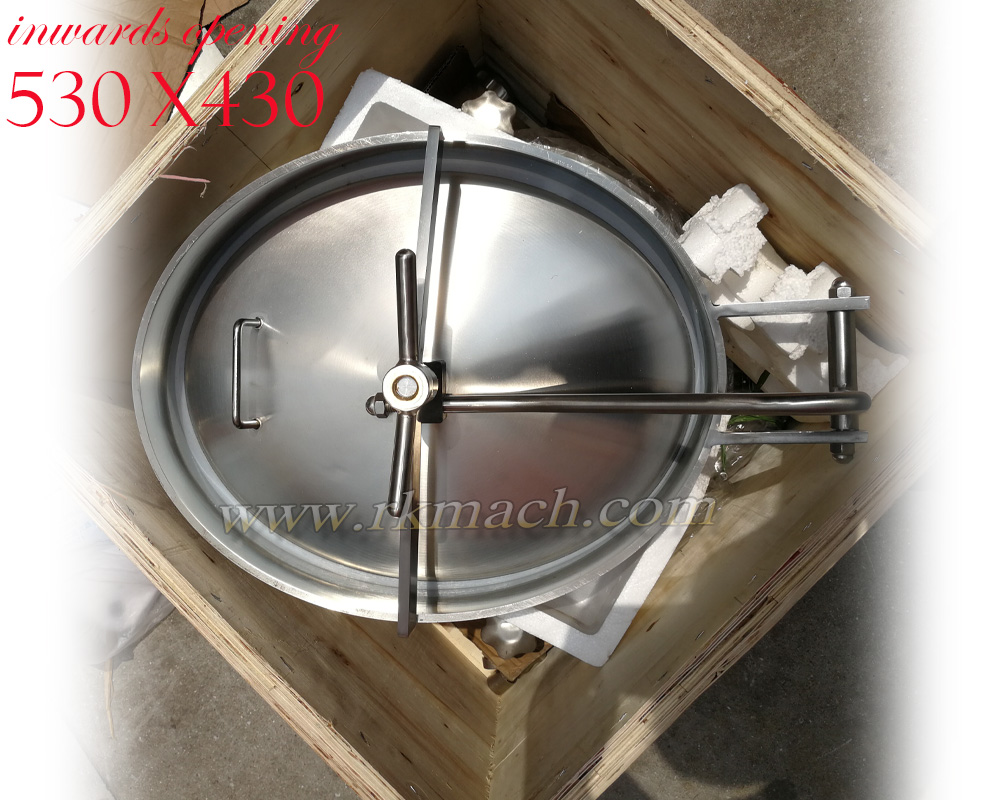

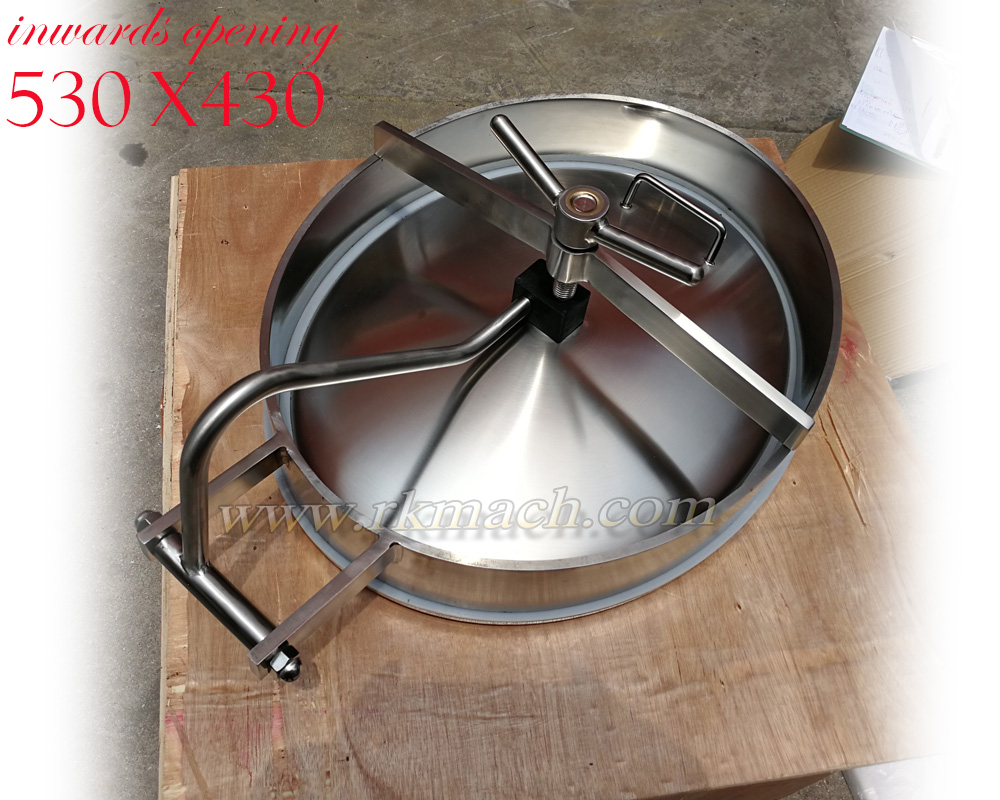

530x330mm stainless steel manway door
here is the video of a 530x330mm oval manhole cover on YouTube
You can also click this picture to see the video on YouTube directly.
530x330mm stainless steel manway door
