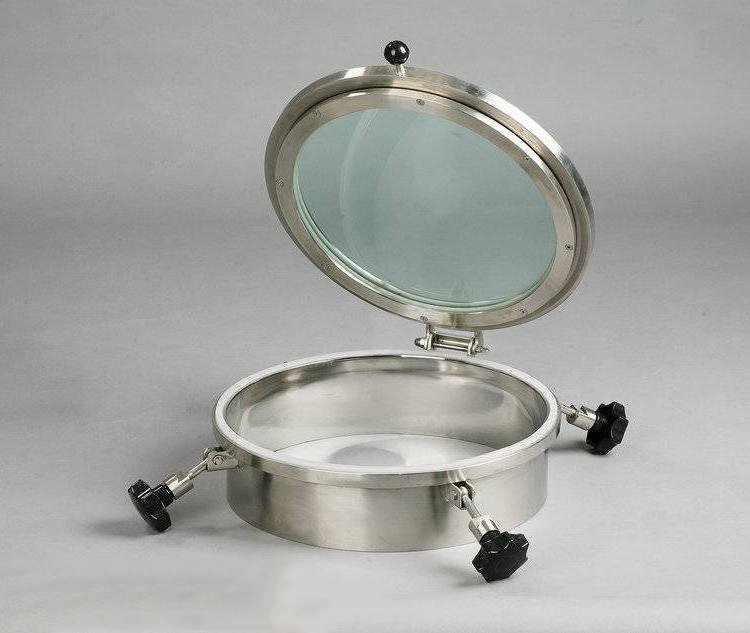

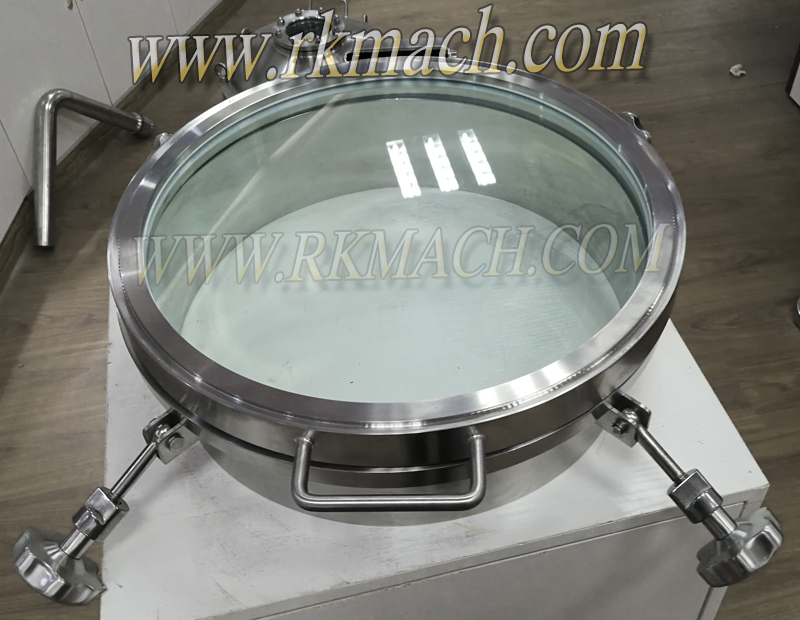

Round pressure cover with glass pane

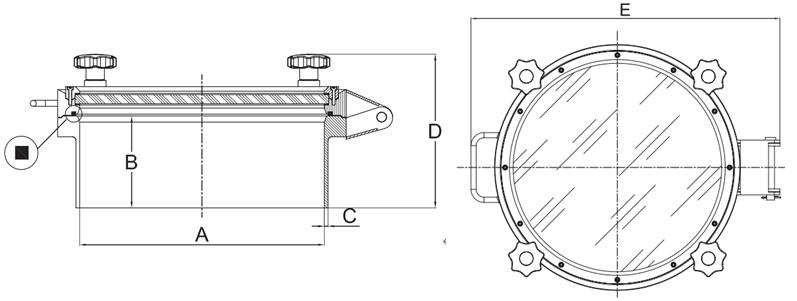

Main specification
Size | Material | Neck thickness | A mm | B mm | Max Pres. bar | Bolts QTY | Gasket material |
DN200 | SS304 | 3 mm | 206 | 100 | 2.0 | 4 | Silicone |
DN300 | SS304 | 3 mm | 306 | 100 | 2.0 | 4 | Silicone |
DN400 | SS304 | 3 mm | 406 | 100 | 2.0 / 3.0 | 4 / 5 | Silicone |
DN450 | SS304 | 3 mm | 456 | 100 | 2.0 / 3.0 | 4 /6 | Silicone |
DN500 | SS304 | 3 mm | 506 | 100 | 3.0 | 6 | Silicone |
DN550 | SS304 | 4 mm | 558 | 100 | 3.0 | 6 | Silicone |
DN600 | SS304 | 4 mm | 608 | 100 | 3.0 | 8 | Silicone |
Longer neck heights are available.1bar=14.5psi=0.1Mpa
Round pressure cover with glass pane
Main specification
Size | Material | Neck thickness | A mm | B mm | Max Pres. bar | Bolts QTY | Gasket material |
DN200 | SS304 | 3 mm | 206 | 100 | 2.0 | 4 | Silicone |
DN300 | SS304 | 3 mm | 306 | 100 | 2.0 | 4 | Silicone |
DN400 | SS304 | 3 mm | 406 | 100 | 2.0 / 3.0 | 4 / 5 | Silicone |
DN450 | SS304 | 3 mm | 456 | 100 | 2.0 / 3.0 | 4 /6 | Silicone |
DN500 | SS304 | 3 mm | 506 | 100 | 3.0 | 6 | Silicone |
DN550 | SS304 | 4 mm | 558 | 100 | 3.0 | 6 | Silicone |
DN600 | SS304 | 4 mm | 608 | 100 | 3.0 | 8 | Silicone |
Longer neck heights are available.1bar=14.5psi=0.1Mpa

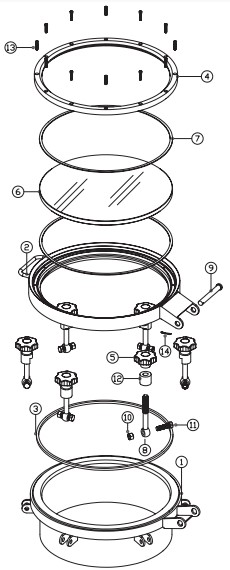

Main parts
Sketch | Item | Description | Material |
1 | Frame | SS304 | |
2 | Cover | SS304 | |
3 | Gasket | Silicone | |
4 | Flange | SS304 | |
5 | Handle | SS304 | |
6 | Sight glass | Tempered glass | |
7 | Seal | Silicone | |
8 | Swing bolt | SS304 | |
9 | Pin | SS304 | |
10 | Nut | SS304 | |
11 | Screw | SS304 | |
12 | Hub | SS304 | |
13 | Screw | SS304 | |
14 | Cotter pin | SS304 | |
Tips: | |||
1. Some details are subject to modification without notice in advance 2. Main construction material can be SS316L under request. |
