High Shear Homogenizer (vacuum)

batch type high shear emulsifier, homo mixer
used on vacuum mixing vessel / pressure vessel
220V / 380V / 415V voltage
contact part to be SS304 / SS316L

Motor Power:
Voltage:
Quantity:
  • 3000rpm / 3600rpm
  • 1.1KW~90KW
  • SS304 / SS316L
  • Vacuum ~ 0.4Mpa
  • 220V~415V customized

batch type high shear emulsifier, homo mixer

used on vacuum mixing vessel  / pressure vessel

220V / 380V / 415V voltage

contact part to be SS304 / SS316L


Specification

(please contact our sales team to get specification for other models of our high shear mixer)

No.

Description

Specification

Similar picture

1

Model

WRL3-120

WRL3-120A

vacuum emulsify mixer sketch

2

Motor power

3kw

4kw

3

Voltage

115V 60Hz single phase

220V 60Hz 3phase

380V 50Hz 3phase

415V 50Hz 3phase

4

Motor Flange diameter

250mm

5

Install type

B35

6

Rotation speed

3000rpm

7

Shaft length mm

700

750

8

Contact part material

SS304

9

Process capacity

100~200L

100~300L

10

Working mode

Batch   type

11

Unit price



12

Terms

FOB   Ningbo China

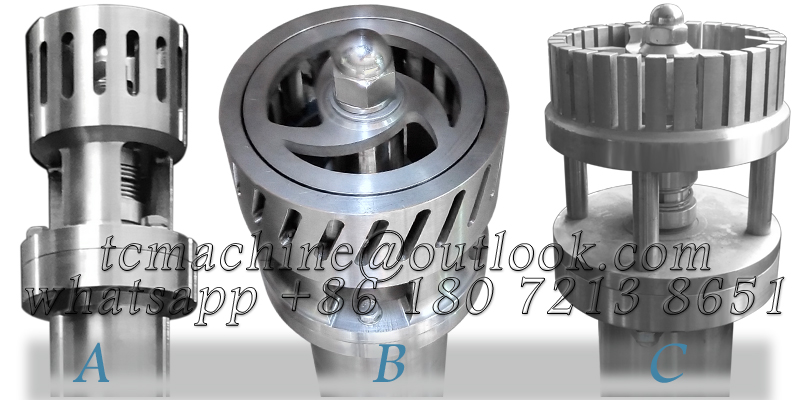

Optional emulsifier head

homo mixer head
