high shear homogenizer and dispersing mixer 2-in-1

TRSD series mixer is multifunctional mixers. One high shear homogenizing mixer working head and one dispersing mixing head are installed on the same mixing shaft. Together with the default downthrust propeller on the rotating shaft, this high shear mixer has 3 different mixing blade designs. it is ideal for the mixing of water, cream, gel, and painting.
Model:
Motor power:
Working Speed:
Wet material:
Voltage:
Availability:
Quantity:
  • TRSD

  • Ranking

TRSD High Shear Dispersing Homogenizer is a combination of high speed homogenizing mxier (mixing motor, shaft, down thrust propeller, working head and mounting flange) and a dispersing disc which is mounted on the high shear mixing shaft.

TRSD high shear homogenizing mixer application

To dispersing, shearing homogenizing and emulsifying in working load to get uniformly homogenizing and thoroughly emulsifying.

Installed on existing stainless-steel tank, vessel, IBC tote, plastic drum and barrels.

(Ranking machinery offer customizable stainless steel tanks / vessels together with high shear mixer.)

TRD S

Main parts included in the high shear mixer / homogenizer

① the electric / pneumatic driving motor for satisfactory operation under 220V~600V voltage

② the mounting flange for easy assembly on stainless steel tanks

③ the support shafts for working head and driving motor

④ a down thrust propeller on the main rotation shaft

⑤ the rotation shaft to hold the propeller and rotor

⑥ the rotor stator assembly (working head)

⑦ the dispersing disc (sawtooth mixing blade) on the rotation shaft



here are pictures of our TRSD high shear homogenizing mixer

TRDS shear mixer

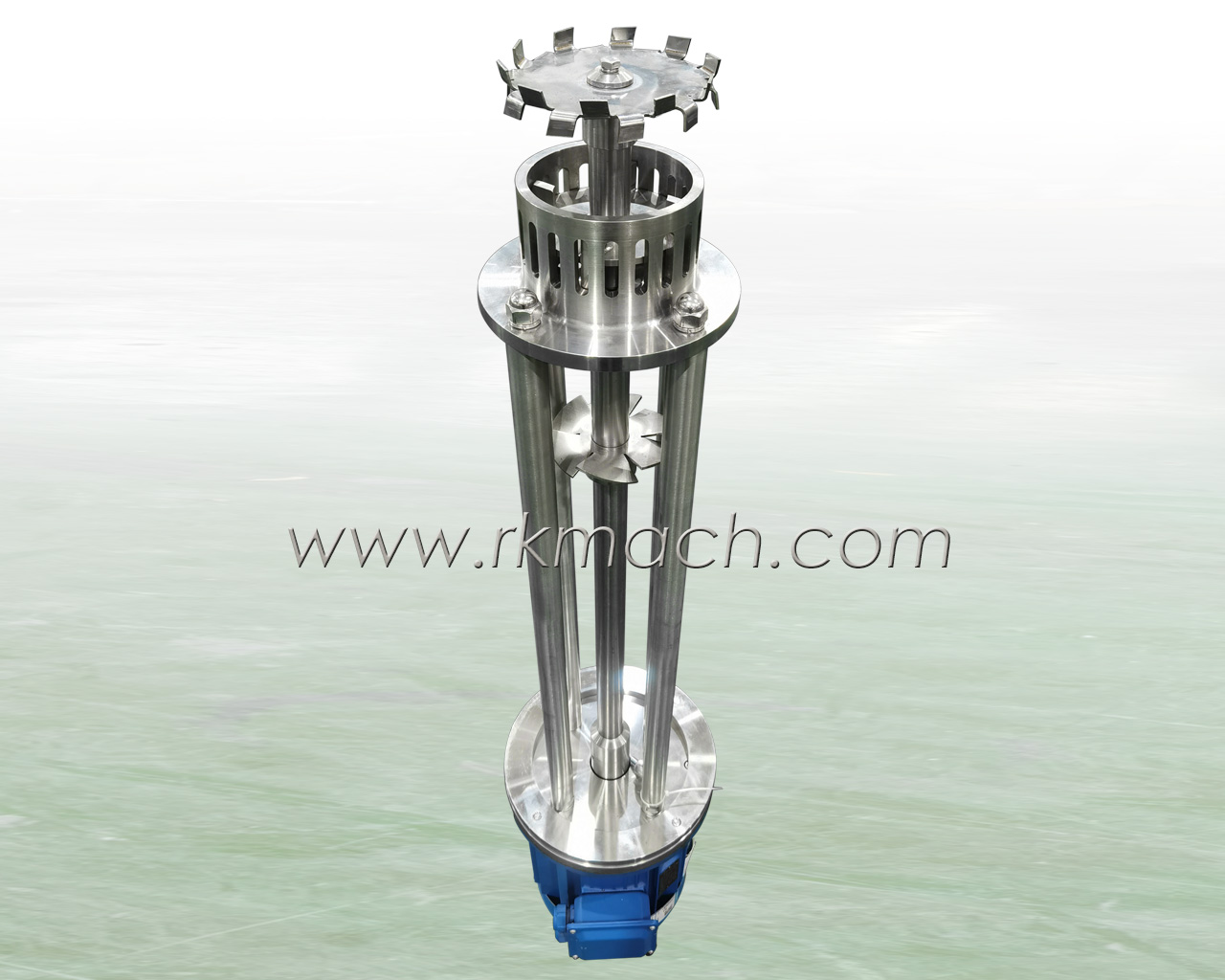

TRDS disc homo

Main specification of TRSD series high shear homogenizing dispersing mixer

tips:  shaft length and dispersing dsic size can be customzied to meet buyers mixing requst.


Model

TRSD-3

TRSD-4

TRSD-5.5TRSD-7.5TRSD-11TRSD-15

Voltage

220V 60hz 3Phase AC / 380V 50Hz 3phase

Mounting

Top mounting

Working mode

Batch type

Wet material

Stainless steel 304 / 316L

Motor poles

2

Speed

Synchronous RPM 3000 / 3600rpm

Protection

IP55 weatherproof enclosures / EX proof

Motor power

4HP

5.5HP

7.5HP10HP15HP20HP

Suitable for

100~200L

100~300L

200~600L
200~800L300~1000L400~1200L

Ranking machinery offer 4 homogenizing working heads. users can coose any of them to meet different homogenizing reqeust.

homogenizing mixer working head

Working heads and main application

high shear mixer sketch and working heads

any questions on the homogenizing working head and application range, please contact our sales team directly.
