BRS-X Bottom entry water-oil emulsion homogenizer

High efficiency Bottom Entry homogenizer for water oil emulsion
installed on bottom of stainless steel vessel
suitable for emulsion homogenizing
with drainage port
with circulation port (customized)
Quantity:
  • 3000rpm
  • 1.1KW~37KW
  • SS304 / SS316L
  • water cooling
  • 110V~415V customized

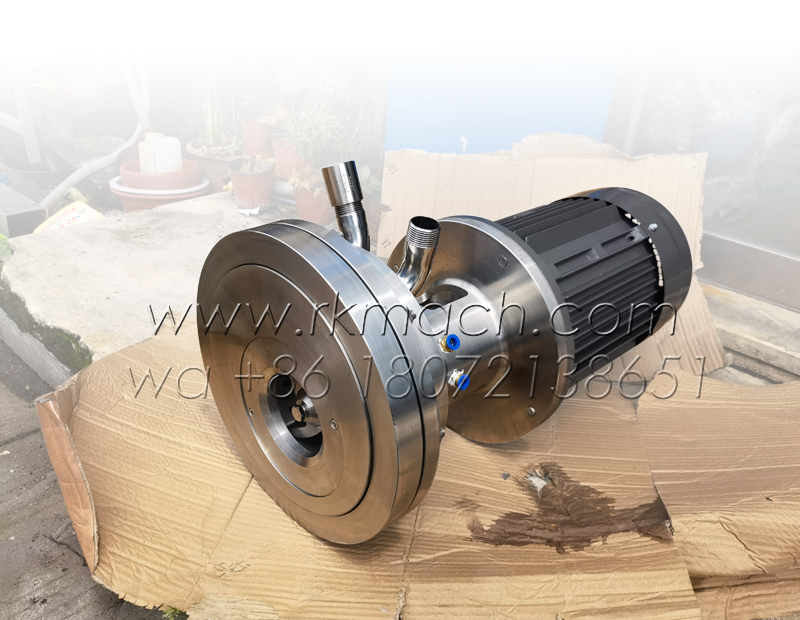

The BRS-X series high shear mixer is a tank bottom mounting emulsion homogenizer, installed on the bottom of stainless steel vessel.

It can be used together with top entry high shear mixer, scraper mixer and inline shear mixers to shorten the processing time and emprove the mixing efficiency.

BRS

main specification of bottom shear mixer

high shear mixer / emulsion homogenizer / oil water emulsifier with circulation port and drainage port

Model Power kw Speed Capacity liter Cooling by


2800 rpm





BRS-3X 3 50-100 exterior water / working load
BRS-4X 4 100~200 exterior water / working load
BRS-5.5X 5.5 200-600 exterior water / working load
BRS-7.5X 7.5 200~800 exterior water / working load
BRS-11X 11 500~1500 exterior water / working load
BRS-13X 13 500-1500 exterior water / working load
BRS-15X 15 600-1800 exterior water / working load
BRS-18.5X 18.5 600~2000 exterior water / working load
BRS-22X 22 1400 rpm 800~2500 exterior water / working load
BRS-30X 30 1000~3500 exterior water / working load
BRS-47X 45 3000~10000 exterior water / working load








BRS-X series high shear mixer / emulsion homogenizer / oil water emulsifier mounting sample

BRS-X installation
