Tank Bottom Entry High Shear Mixers

Bottom Entry High Shear homogenizer
installed on bottom of stainless steel vessel
suitable for emulsion homogenizing

Quantity:
  • 3000rpm
  • 1.1KW~90KW
  • SS304 / SS316L
  • water cooling
  • 110V~415V customized

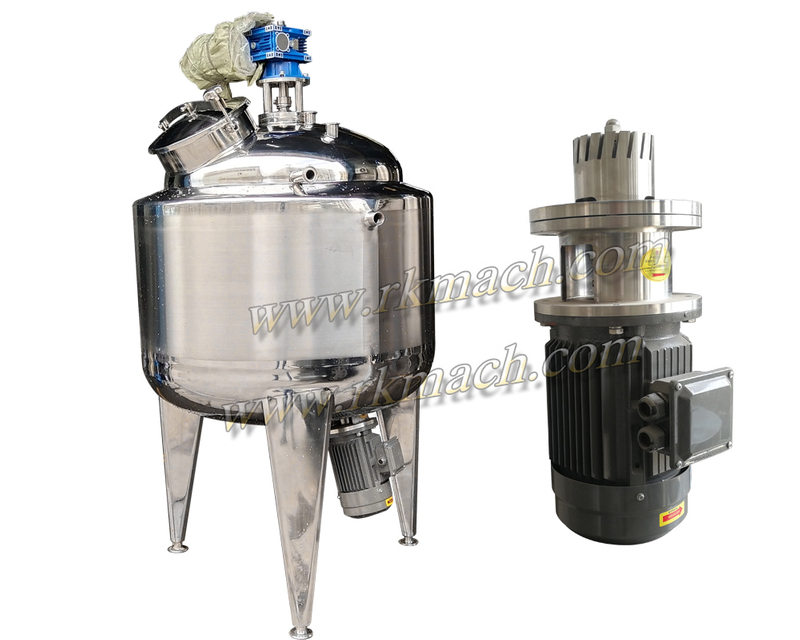

The high shear mixer is a tank bottom mounting type industrial homogenizer, installed at the bottom of stainless steel vessel. It can be used together with top entry high shear mxier, scraper mixer and inline shear mxiers to shorten the processing time and emprove the mixing efficiency.

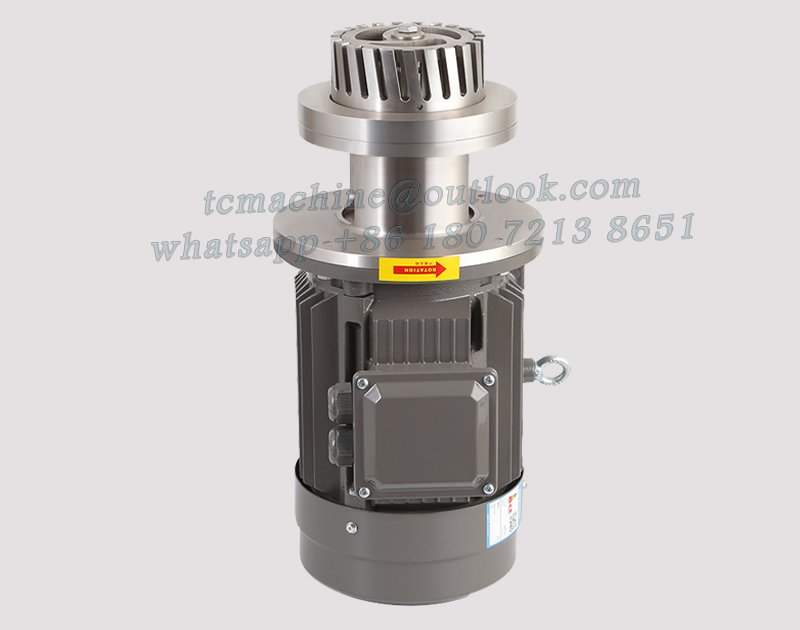

batch type emulsify mixer 04

main specification of bottom shear mxier

Model Power kw Speed Capacity liter Cooling by
BRS-90 1.5 2800 rpm 10~50 exterior water / working load
BRS-100 2.2 50~100 exterior water / working load
BRS-110 3 50-100 exterior water / working load
BRS-120 4 100~200 exterior water / working load
BRS-130 5.5 200-600 exterior water / working load
BRS-140 7.5 200~800 exterior water / working load
BRS-160 11 500~1500 exterior water / working load
BRS-165 13 500-1500 exterior water / working load
BRS-175 15 600-1800 exterior water / working load
BRS-180 18.5 600~2000 exterior water / working load
BRS-200 22 1400 rpm 800~2500 exterior water / working load
BRS-220 30 1000~3500 exterior water / working load
BRS-240 45 1500~5000 exterior water / working load
BRS-270 55 2000~8000 exterior water / working load
BRS-290 75 3000~10000 exterior water / working load

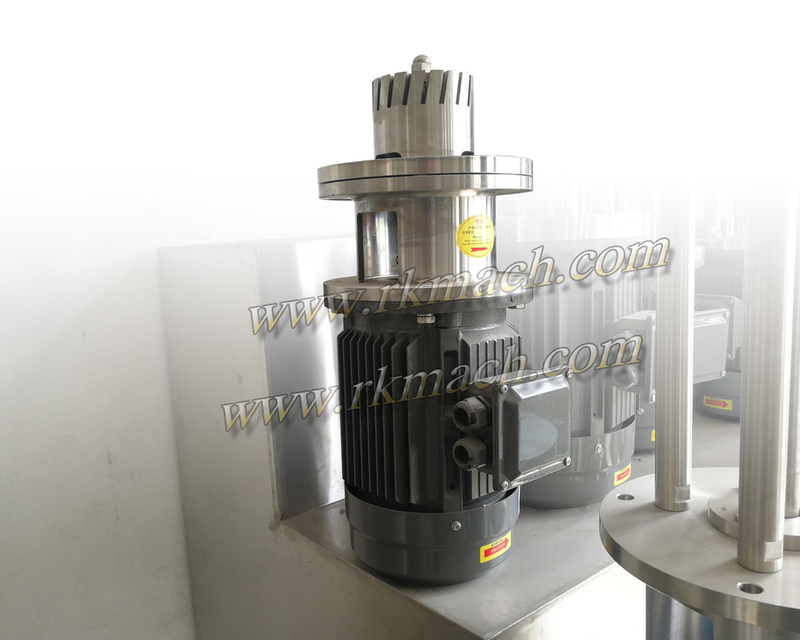

bottom emulsifying mixer 6
