| folding propeller size: | |
|---|---|
| Quantity: | |

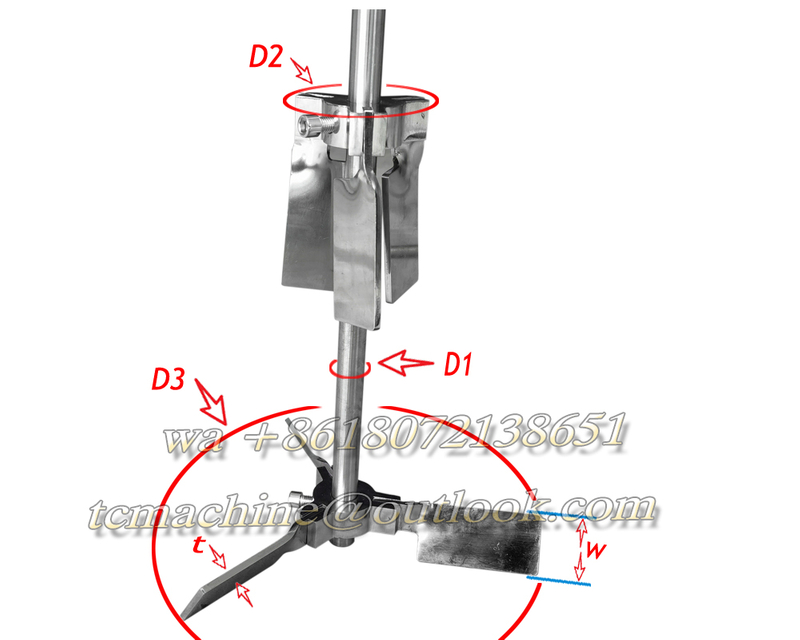

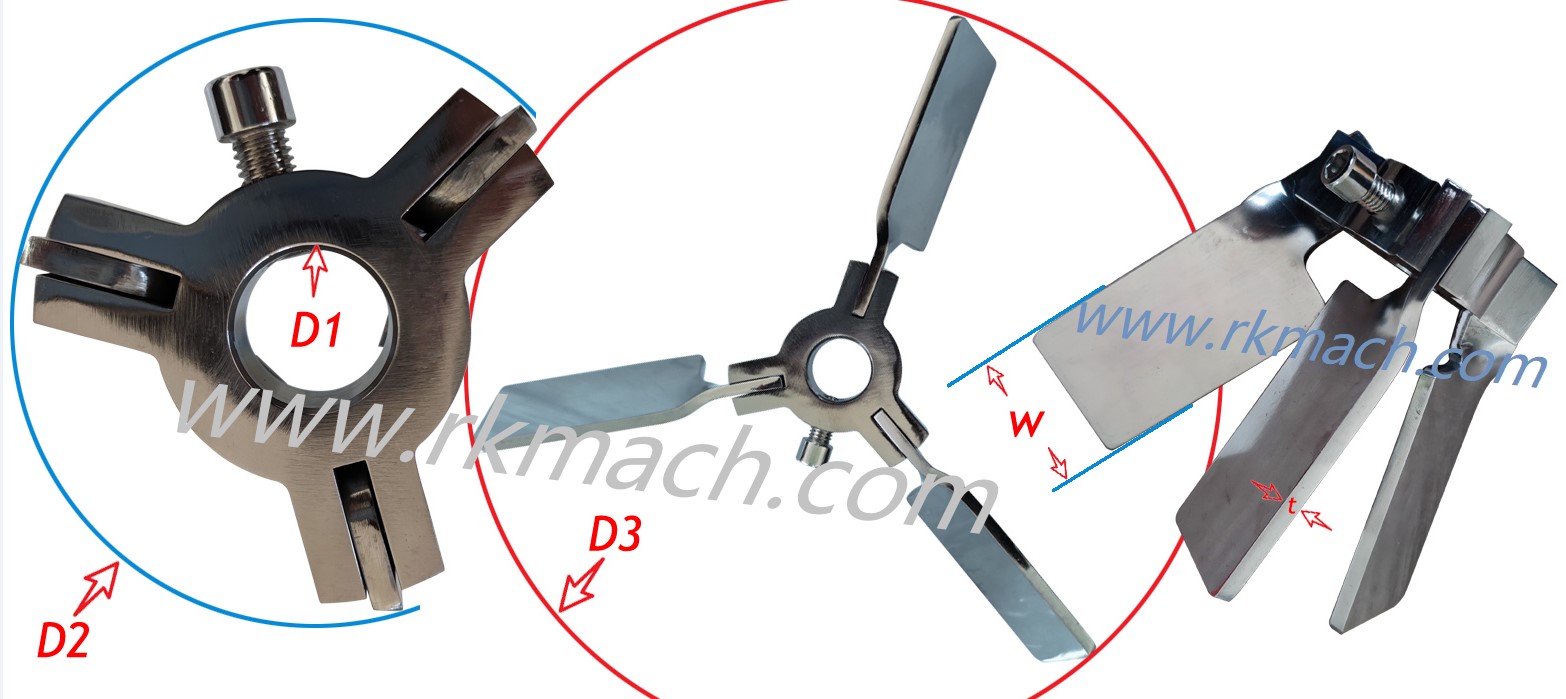

stainless steel Foldable agitator foldable blade folding blades used for IBC tanks
folding blade only, shaft, coupling, air driven motor are all available
Folding balde for IBC tanks main specification
Main specifciation
| No. | Model | Max diameter mm | Shaft diameter mm | Paddle width mm | Diameter after folding mm | Material | Pin slot |
| 1 | 100(8-16) | ||||||
| 2 | 120(8-16) | ||||||
| 3 | 150(12-20) | 150 | 12~20 | 25 | 50 | SS304 | customized |
| 4 | 200(12-20) | 200 | 12~20 | 25 | 50 | SS304 | customized |
| 5 | 250(12-20) | 250 | 12~20 | 25 | 50 | SS304 | customized |
| 250(20-25) | 250 | 20~25 | 45 | 90 | SS304 | customized | |
| 6 | 300(16-20) | 300 | 16~20 | 25 | 50 | SS304 | customized |
| 7 | 300(20-30) | 300 | 20~30 | 45 | 90 | SS304 | customized |
| 8 | 400(16-30) | 400 | 16~30 | 45 | 90 | SS304 | customized |
| 9 | 500(16-30) | 500 | 16~30 | 45 | 90 | SS304 | customized |
| 10 |
stainless steel Foldable agitator foldable blade folding blades used for IBC tanks
folding blade only, shaft, coupling, air driven motor are all available
Folding balde for IBC tanks main specification
Main specifciation
| No. | Model | Max diameter mm | Shaft diameter mm | Paddle width mm | Diameter after folding mm | Material | Pin slot |
| 1 | 100(8-16) | ||||||
| 2 | 120(8-16) | ||||||
| 3 | 150(12-20) | 150 | 12~20 | 25 | 50 | SS304 | customized |
| 4 | 200(12-20) | 200 | 12~20 | 25 | 50 | SS304 | customized |
| 5 | 250(12-20) | 250 | 12~20 | 25 | 50 | SS304 | customized |
| 250(20-25) | 250 | 20~25 | 45 | 90 | SS304 | customized | |
| 6 | 300(16-20) | 300 | 16~20 | 25 | 50 | SS304 | customized |
| 7 | 300(20-30) | 300 | 20~30 | 45 | 90 | SS304 | customized |
| 8 | 400(16-30) | 400 | 16~30 | 45 | 90 | SS304 | customized |
| 9 | 500(16-30) | 500 | 16~30 | 45 | 90 | SS304 | customized |
| 10 |
