Motor power: | |
---|---|
Contact part: | |
Voltage: | |
Availability: | |
Quantity: | |
High shear mixer for 380V 50Hz 3P AC voltage 22KW
Used for 1000L gel mixing and homogenizing
For the manufacturing of pharmacy, daily chemicals and food & beverage industry, especially cosmetic industry such as lipstick, facial cream, lotions, washing detergent, hand sanitizer and ointment .
To dispersing, shearing and cutting force in working load to get uniformly homogenizing and thoroughly emulsifying.
Installed on existing stainless-steel tank, vessel, IBC tote, plastic drum and barrels.

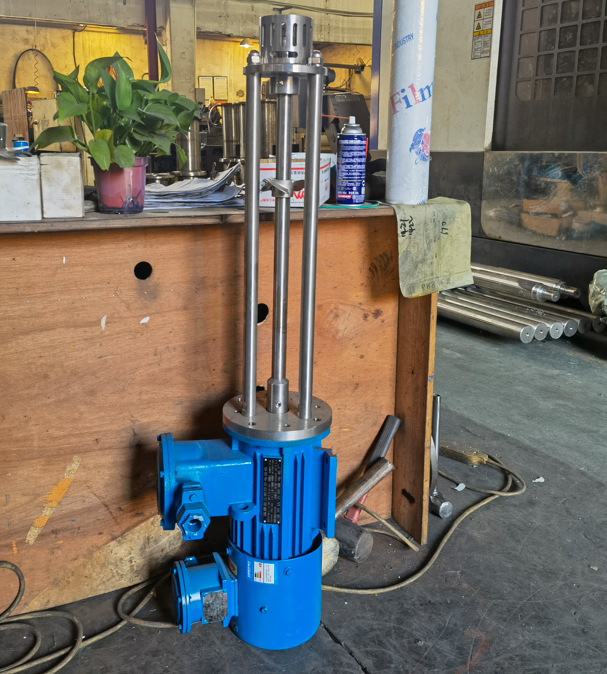

Main parts included in the high shear mixer / homogenizer
① the driving motor for satisfactory operation under 380V 50hz
② the mounting flange for easy assembly on existing tanks
③ the support shafts for working head and driving motor
④ a down thrust propeller on the main rotation shaft
⑤ the rotation shaft to hold the propeller and rotor
⑥ the rotor stator assembly (working head)
Main speciation and price
Model | TRS-22 | Similar image | Tips |
Voltage | 3800V 50hz 3Phase AC | the motor power can be 3HP to max 30HP made to order mixer shaft legnth is made to order | |
Mounting | Top mounting | ||
Working mode | Batch type | ||
Wet material | Stainless steel 304 | ||
Motor poles | 2 | ||
Working speed | 0~3000 rev./min | ||
Motor type | Non-explosion-proof type | ||
Motor power | 30HP | ||
Suitable for | 500~1000L gel / cream | ||

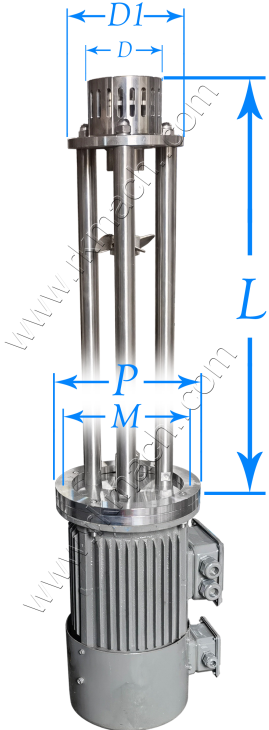

L | 1400 | ||
M | 300 | ||
P | 350 | ||
D | 180 | ||
D1 | 245 | ||
Over length | 2000 |
• All dimensions except those clearly marked are measured in millimeters
• Suitable for both low and high viscosity fluid like water, milk, oil, gel, cream, water power mixture.
• Users can choose from B5 flange mounted motor or B35 foot cum flanged motors.
• Ware part
Using shaft sleeve that is made from mineral fiber and epoxy resin. Compared with ordinary graphite bushing, it has better wear resistance, better lubricity less expansion coefficient and longer service life.
High shear mixer for 380V 50Hz 3P AC voltage 22KW
Used for 1000L gel mixing and homogenizing
For the manufacturing of pharmacy, daily chemicals and food & beverage industry, especially cosmetic industry such as lipstick, facial cream, lotions, washing detergent, hand sanitizer and ointment .
To dispersing, shearing and cutting force in working load to get uniformly homogenizing and thoroughly emulsifying.
Installed on existing stainless-steel tank, vessel, IBC tote, plastic drum and barrels.
Main parts included in the high shear mixer / homogenizer
① the driving motor for satisfactory operation under 380V 50hz
② the mounting flange for easy assembly on existing tanks
③ the support shafts for working head and driving motor
④ a down thrust propeller on the main rotation shaft
⑤ the rotation shaft to hold the propeller and rotor
⑥ the rotor stator assembly (working head)
Main speciation and price
Model | TRS-22 | Similar image | Tips |
Voltage | 3800V 50hz 3Phase AC | the motor power can be 3HP to max 30HP made to order mixer shaft legnth is made to order | |
Mounting | Top mounting | ||
Working mode | Batch type | ||
Wet material | Stainless steel 304 | ||
Motor poles | 2 | ||
Working speed | 0~3000 rev./min | ||
Motor type | Non-explosion-proof type | ||
Motor power | 30HP | ||
Suitable for | 500~1000L gel / cream | ||
L | 1400 | ||
M | 300 | ||
P | 350 | ||
D | 180 | ||
D1 | 245 | ||
Over length | 2000 |
• All dimensions except those clearly marked are measured in millimeters
• Suitable for both low and high viscosity fluid like water, milk, oil, gel, cream, water power mixture.
• Users can choose from B5 flange mounted motor or B35 foot cum flanged motors.
• Ware part
Using shaft sleeve that is made from mineral fiber and epoxy resin. Compared with ordinary graphite bushing, it has better wear resistance, better lubricity less expansion coefficient and longer service life.
Working head options
Ranking machinery offers High Shear Rotor-Stator mixers with a selection of stator heads to fine tune the mixer for your process and to handle a wide variety of working load.
A. Mesh / fine screen stator for fine emulsions.
B. Long hole (slotted) for fine dispersions and size reduction of solids
C. Round hole stator for dispersing application
D. Claw type stator offers more shearing force, for high viscosity and heavy duty working condition.
Working head options
Ranking machinery offers High Shear Rotor-Stator mixers with a selection of stator heads to fine tune the mixer for your process and to handle a wide variety of working load.
A. Mesh / fine screen stator for fine emulsions.
B. Long hole (slotted) for fine dispersions and size reduction of solids
C. Round hole stator for dispersing application
D. Claw type stator offers more shearing force, for high viscosity and heavy duty working condition.

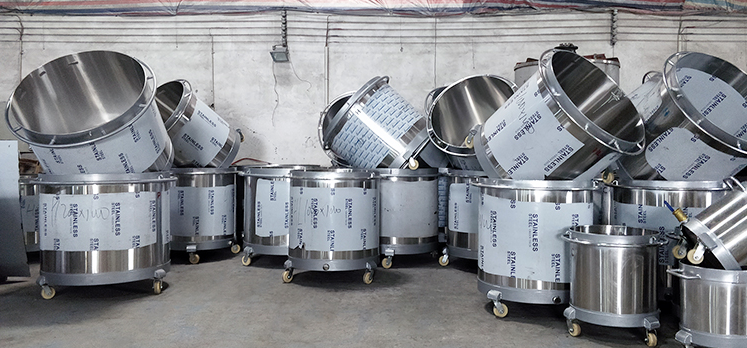

The 1000Liter movable tank (made to order)
Diameter 1200mm, inner tank depth 1000mm, full capacity 1100Liter, with movable castors
With 2inch diameter clamp connection drainage valves 3 Nos or each tank
The 1000Liter movable tank (made to order)
Diameter 1200mm, inner tank depth 1000mm, full capacity 1100Liter, with movable castors
With 2inch diameter clamp connection drainage valves 3 Nos or each tank
Here is a small scale high shear mixer for cream on our youtube page
You can copy this link to your browser to view the video
https://youtu.be/9qSqRpwjF0k
Here is a small scale high shear mixer for cream on our youtube page
You can copy this link to your browser to view the video
https://youtu.be/9qSqRpwjF0k
