| Model: | |
|---|---|
| Tube lengh: | |
| Gasket: | |
| Quantity: | |
HP-EX2-V
≤ 25,000cps / ≤ 10,000cps
0~625rpm
6bar / 87psi
45lpm / 26lmp
6m
 HP-EX2-V-10KV HPEX2 series barrel pumps are designed to transfer a variety of materials from 55 gallon drums and tanks. The pump tube which is made stainless steel will be placed into the drum or barrel verticallyduring the working process. HP-EX2-V10KV is have a flow rate of 45L/min（about12 GPM）for max viscosity ten thousand CPS(10,000cps) viscosity. Flow rate is variable from 0~45 liter per minutes. The other hot sell model is HP-EX2-V25KV, suitable for liquids with max twenty-five thousand CPS (25,000cps) viscosity, and 0~26L/min (about 7GPM) flow rate. Both HP-EX2-V10KV and HP-EX2-V-25KV are recommended for intermittent duty use only. That means a 10 minutes interval for cooling off will be necessary after 30 minutes working period. |

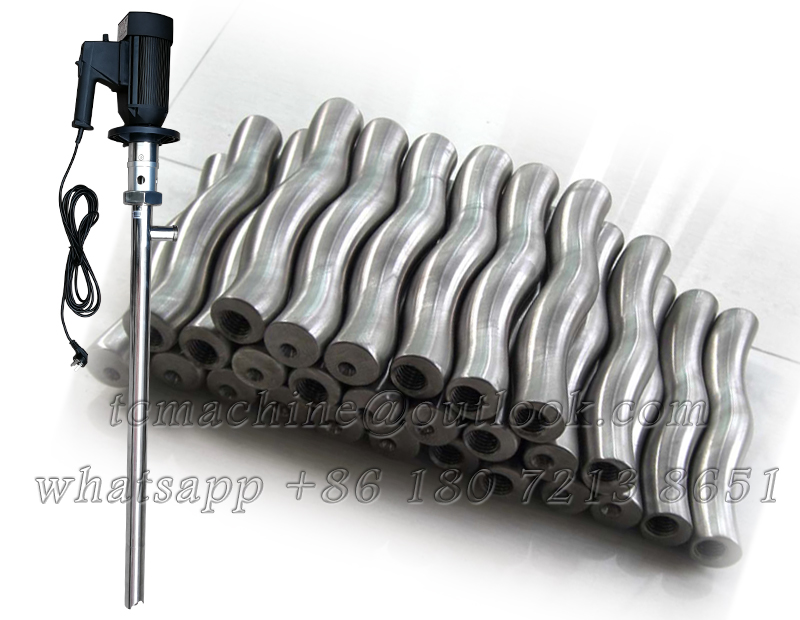

 Stator and rotor HP-EX2-VV-10KV and HP-EX2-25KV both adobt rotor and stator structure, both are positive displacement pumps and should never be operated against shut-off elements such as nozzles, valves, etc. Failure to comply may result in excessive pressure build resulting in serious injury and pump damage. Its designed output pressure is 6bar / 87psi. |

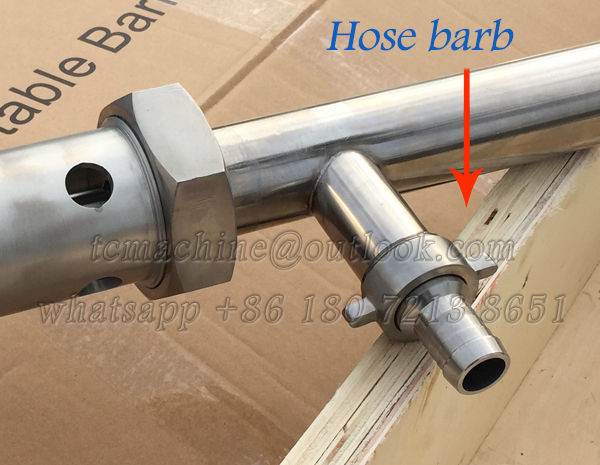

 Hose barb on HP-EX2-V-10KV and 25KV model, the standard outlet will be 1 insh hose barb. the left picture is the standard hose barb view. clamp type hose barb is available under requst. |
Specification
No. | Items | Description & specification | |
1 | Model | HP-EX2-V-10KV | HP-EX2-V-25KV |
2 | Max viscosity | 10,000cps | 25,000cps |
3 | Flow rate | 45L/min, 12gallon per minutes,12gpm | 26L/min, 7gallon per minutes, 7gpm |
4 | Output pressure | 6 bar | 6 bar |
5 | Motor type | electric driven | electric driven |
6 | Power supply | 110V~415V customized | 110V~415V customized |
7 | Motor power | 825W | 825W |

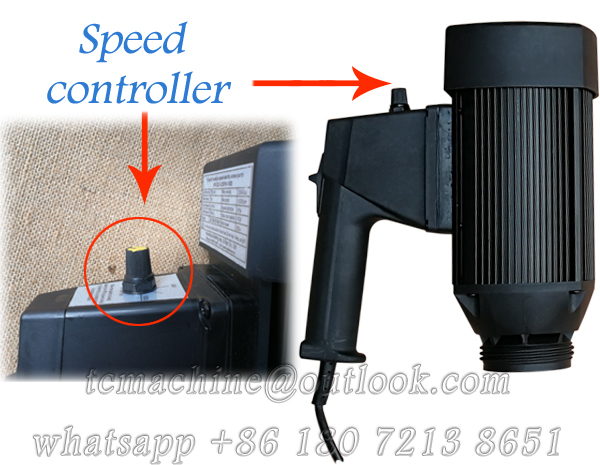

8 | Potation speed | 0~625 rpm adjustaboe speed | 0~625 rpm adjustaboe speed |
9 | Pump tube | 1m (1.2m avaliable under request) | 1m (1.2m avaliable under request) |
10 | Pump tube size | φ51 | φ51 |
11 | Pump tube material | Stainless steel 316L | Stainless steel 316L |
12 | Outlet tube | φ25 with hose barb | φ25 with hose barb |
13 | Rotor Material | Stainless steel 316L | Stainless steel 316L |
14 | Rotor seal material | NBR / KFM / PTFE optional | NBR / KFM / PTFE optional |
15 | Working mode | uncontinuous working | uncontinuous working |

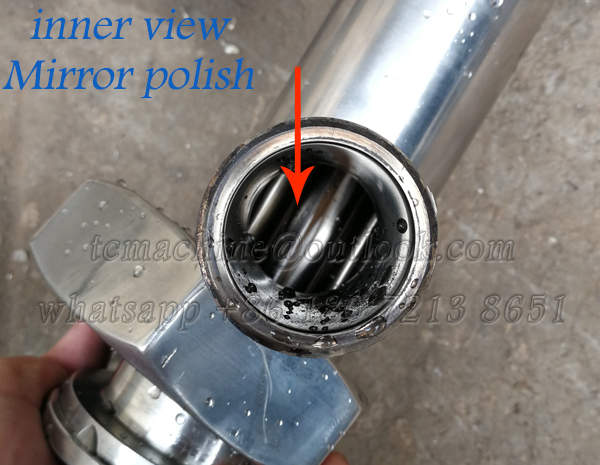

 mirror polish pump tube

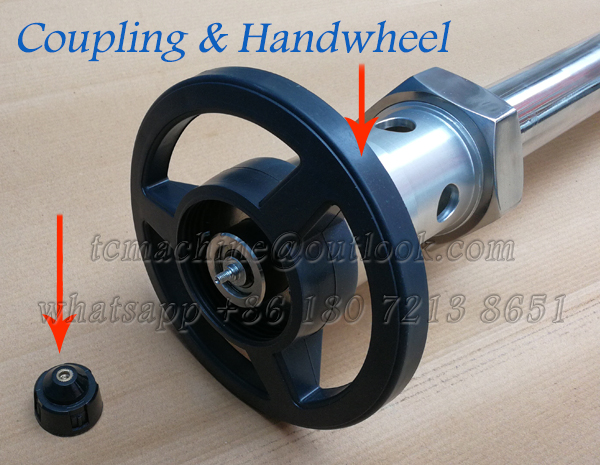

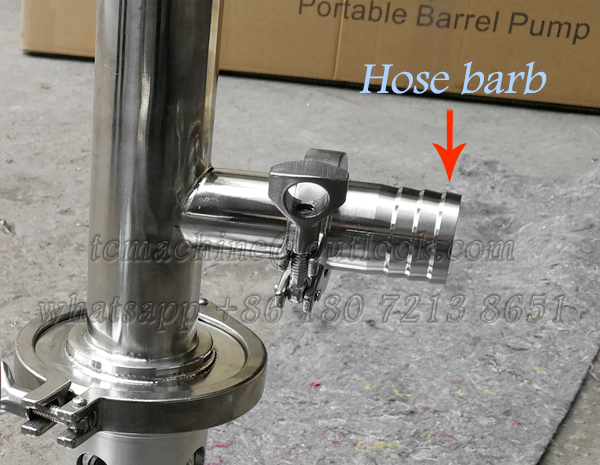

|  handwhlle and coupling |  Customized clamp type hose barb |
