G-D: | |
---|---|
Availability: | |
Quantity: | |
Product structure (CUSTOMIZED TO MEET BUYER'S REQUEST)
none jacketed / jacketed mixing / blending tank /homogenizing tank, homo mixer
sauce heating tank, steam cooker for the sauce / gel / cream / emulsion mixing, blending, homogenizing and dispersion
* made by stainless steel 304 / SS316.
* with open top and hinged covers on tank top.

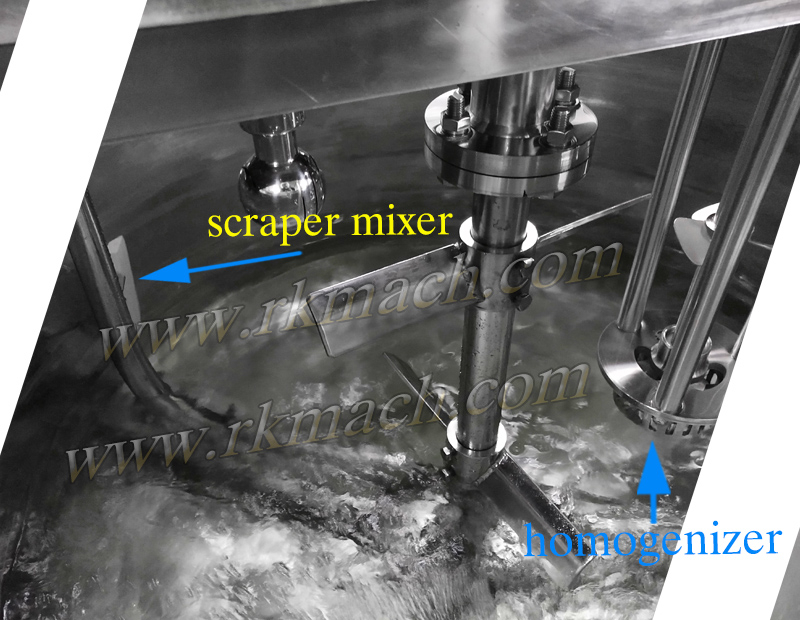

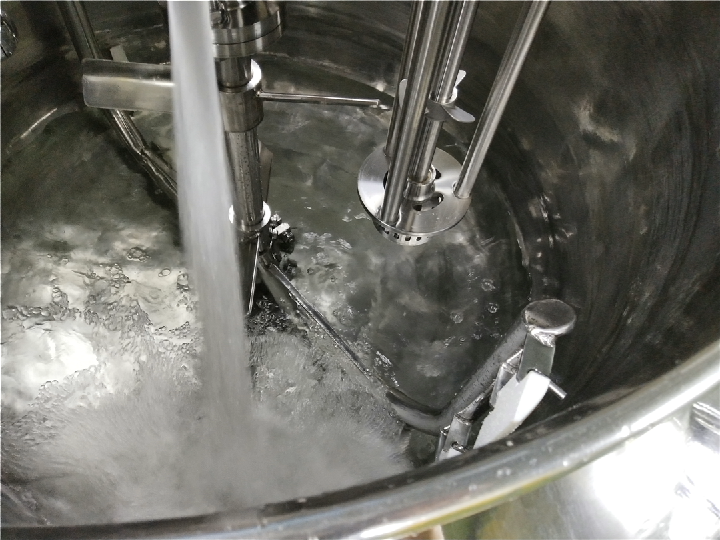

* one top mounting high shear mixer for homogenizing, 3000rpm speed,
(explosion-proof high shear mixers available under request)
(variable speed 0~3000rpm high shear mixer with speed controller available under reqeust)

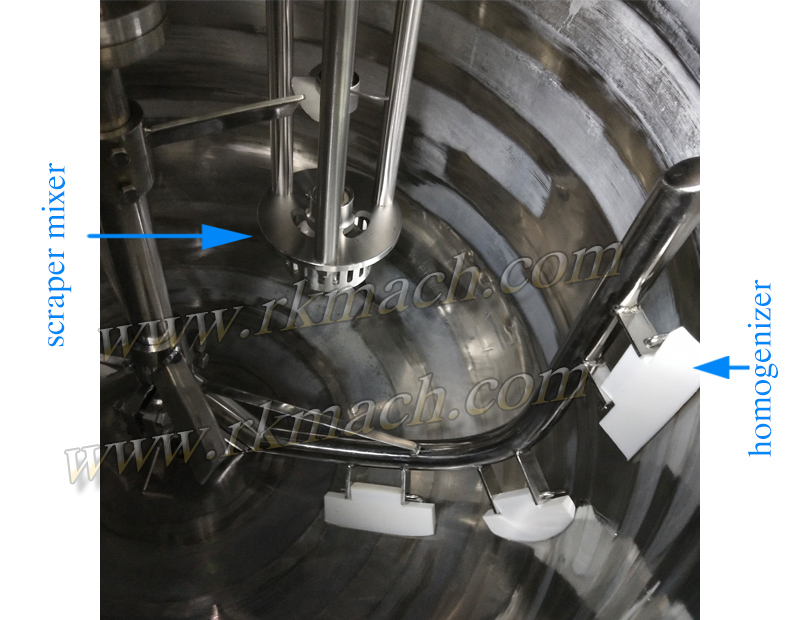

* one center mounting geared motor with low speed mixing propeller
(explosion-proof agitator available under request)
(variable speed 0~100rpm. 0~200rpm, 0~960rpm mixer mixer with speed controller available under reqeust)
* Inlet and outlet nozzles to be clamp type.
* high viscosity or low viscosity pump for emptying available under requst
* inner surface adopts mirror polish, no dead Angle
* PTFE lined inner surface available under buyer's reqeust
l Optional structure

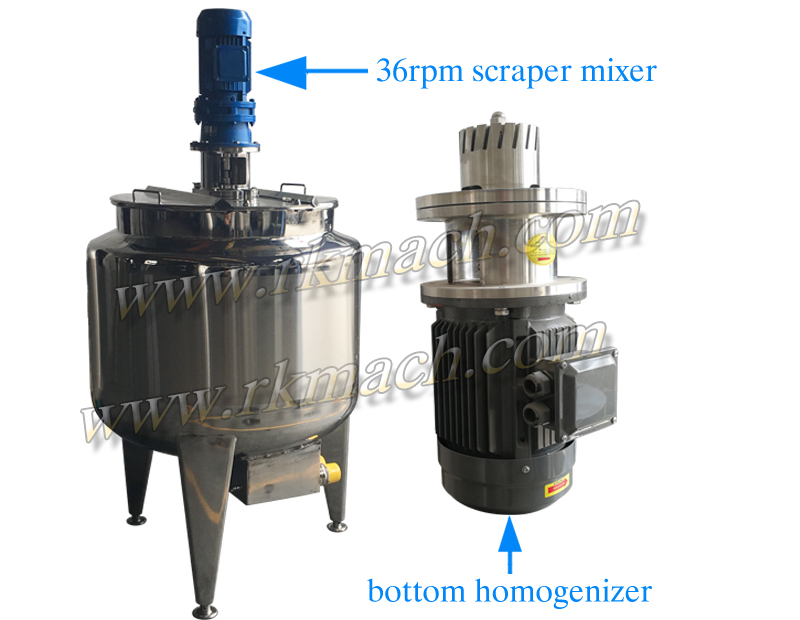

It can be heated or cooled, vacuum or high pressure type, or equipped with bottom mounting high shear mixer.
in inline shear mixer /emuslifying pump ffor mixing tanks are also in our business scope
Product structure (CUSTOMIZED TO MEET BUYER'S REQUEST)
none jacketed / jacketed mixing / blending tank /homogenizing tank, homo mixer
sauce heating tank, steam cooker for the sauce / gel / cream / emulsion mixing, blending, homogenizing and dispersion
* made by stainless steel 304 / SS316.
* with open top and hinged covers on tank top.
* one top mounting high shear mixer for homogenizing, 3000rpm speed,
(explosion-proof high shear mixers available under request)
(variable speed 0~3000rpm high shear mixer with speed controller available under reqeust)
* one center mounting geared motor with low speed mixing propeller
(explosion-proof agitator available under request)
(variable speed 0~100rpm. 0~200rpm, 0~960rpm mixer mixer with speed controller available under reqeust)
* Inlet and outlet nozzles to be clamp type.
* high viscosity or low viscosity pump for emptying available under requst
* inner surface adopts mirror polish, no dead Angle
* PTFE lined inner surface available under buyer's reqeust
l Optional structure
It can be heated or cooled, vacuum or high pressure type, or equipped with bottom mounting high shear mixer.
in inline shear mixer /emuslifying pump ffor mixing tanks are also in our business scope

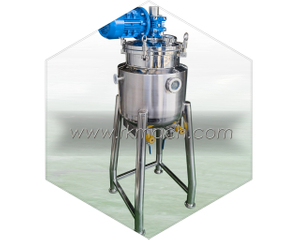

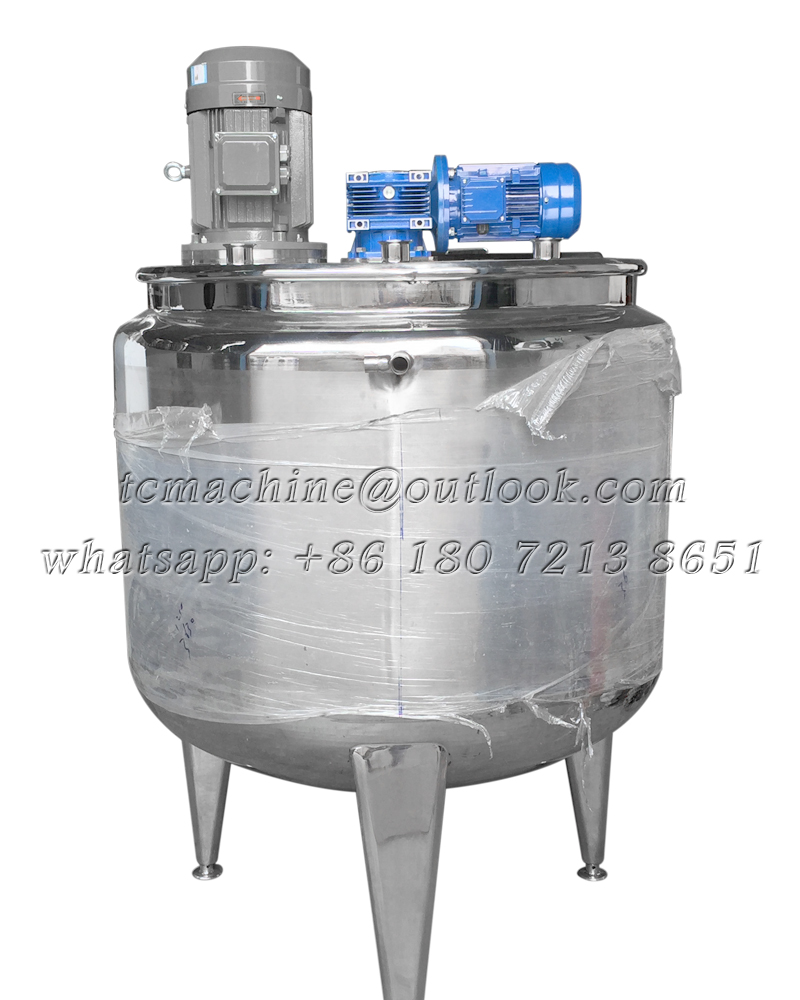

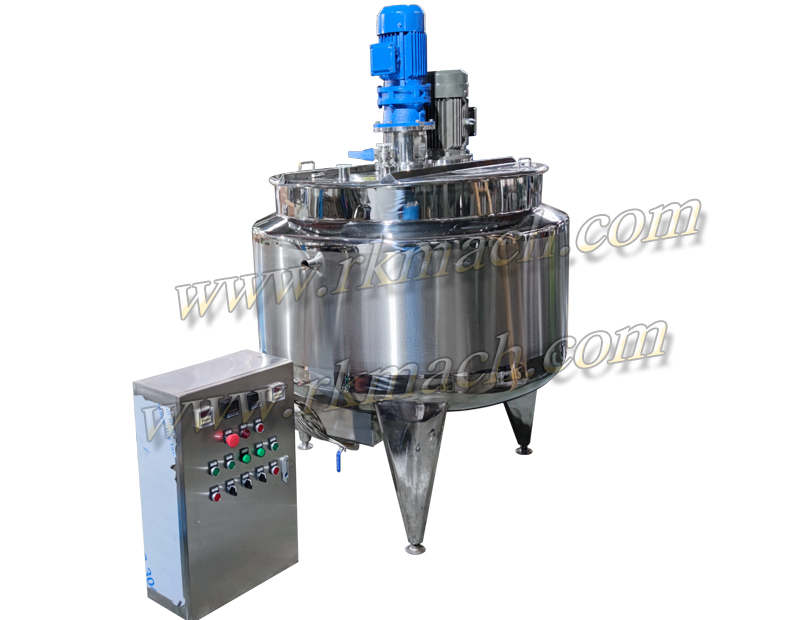

Similar product image
CUSTOMIZED TO MEET BUYER'S REQUEST
Similar product image
CUSTOMIZED TO MEET BUYER'S REQUEST
Main specification for 500 Liter & 1000 ltrs mixing tank
hand sanitizer gel blending tank
S.N. | Item | Description | Description | |
1 | Working capacity | 500 Liter | 1,000 Liter | |
2 | Full capacity | 600 Liter | 1,245 Liter | |
3 | Working pressure | Room pressure | Room pressure | |
4 | Design pressure | Room pressure | Room pressure | |
5 | Contact Material | SS304 | SS304 | |
6 | Homogenizer | 2.2kw 2 Polos, 3000rpm | 4kw 2 Polos, 3000rpm | |
SS304 rotor and stator | SS304 rotor and stator | |||
650mm long shaft | 750mm long shaft | |||
7 | Blender | 2.2kw, 4 polos, 36rpm | 3kw, 4 polos, 36rpm | |
Anchor type mixer | Anchor type mixer | |||
8 | Voltage | 380V 50Hz 3Phase | 380V 50Hz 3Phase | |
9 | Base support | SS304, for blender only | SS304, for blender only | |
10 | Inlet port | 2 Nos, Φ51, clamp | 2 Nos, Φ51, clamp | |
11 | Vent port | 1 Nos, Φ51, clamp With 0.22µm filter | 1 Nos, Φ51, clamp With 0.22µm filter | |
11 | Drainage port | 1 Nos, Φ51, clamp | 1 Nos, Φ51, clamp | |
12 | Polish | Inner mirror polish outer matte | Inner mirror polish outer mate | |
13 | Leg material | SS304, 300mm to floor | SS304, 300mm to floor | |
14 | Dimension | Tank body | Φ900×600mm | Φ1200×750mm |
Thickness | 3mm | 4mm | ||
Overall size | Φ900×2100mm | Φ1200×2480mm | ||
15 | Tips | tank dimension and motor size for high shear mxier and low speed mixer can be different. wall thickness and working pressure can be customized under reqeust. |
Mixing tank specification listed in this page may not suitable for your liquid processing.
Technical parameters are subject to change for different mixing requirements.
Please contact our sales team for more explanation.
Main specification for 500 Liter & 1000 ltrs mixing tank
hand sanitizer gel blending tank
S.N. | Item | Description | Description | |
1 | Working capacity | 500 Liter | 1,000 Liter | |
2 | Full capacity | 600 Liter | 1,245 Liter | |
3 | Working pressure | Room pressure | Room pressure | |
4 | Design pressure | Room pressure | Room pressure | |
5 | Contact Material | SS304 | SS304 | |
6 | Homogenizer | 2.2kw 2 Polos, 3000rpm | 4kw 2 Polos, 3000rpm | |
SS304 rotor and stator | SS304 rotor and stator | |||
650mm long shaft | 750mm long shaft | |||
7 | Blender | 2.2kw, 4 polos, 36rpm | 3kw, 4 polos, 36rpm | |
Anchor type mixer | Anchor type mixer | |||
8 | Voltage | 380V 50Hz 3Phase | 380V 50Hz 3Phase | |
9 | Base support | SS304, for blender only | SS304, for blender only | |
10 | Inlet port | 2 Nos, Φ51, clamp | 2 Nos, Φ51, clamp | |
11 | Vent port | 1 Nos, Φ51, clamp With 0.22µm filter | 1 Nos, Φ51, clamp With 0.22µm filter | |
11 | Drainage port | 1 Nos, Φ51, clamp | 1 Nos, Φ51, clamp | |
12 | Polish | Inner mirror polish outer matte | Inner mirror polish outer mate | |
13 | Leg material | SS304, 300mm to floor | SS304, 300mm to floor | |
14 | Dimension | Tank body | Φ900×600mm | Φ1200×750mm |
Thickness | 3mm | 4mm | ||
Overall size | Φ900×2100mm | Φ1200×2480mm | ||
15 | Tips | tank dimension and motor size for high shear mxier and low speed mixer can be different. wall thickness and working pressure can be customized under reqeust. |
Mixing tank specification listed in this page may not suitable for your liquid processing.
Technical parameters are subject to change for different mixing requirements.
Please contact our sales team for more explanation.
