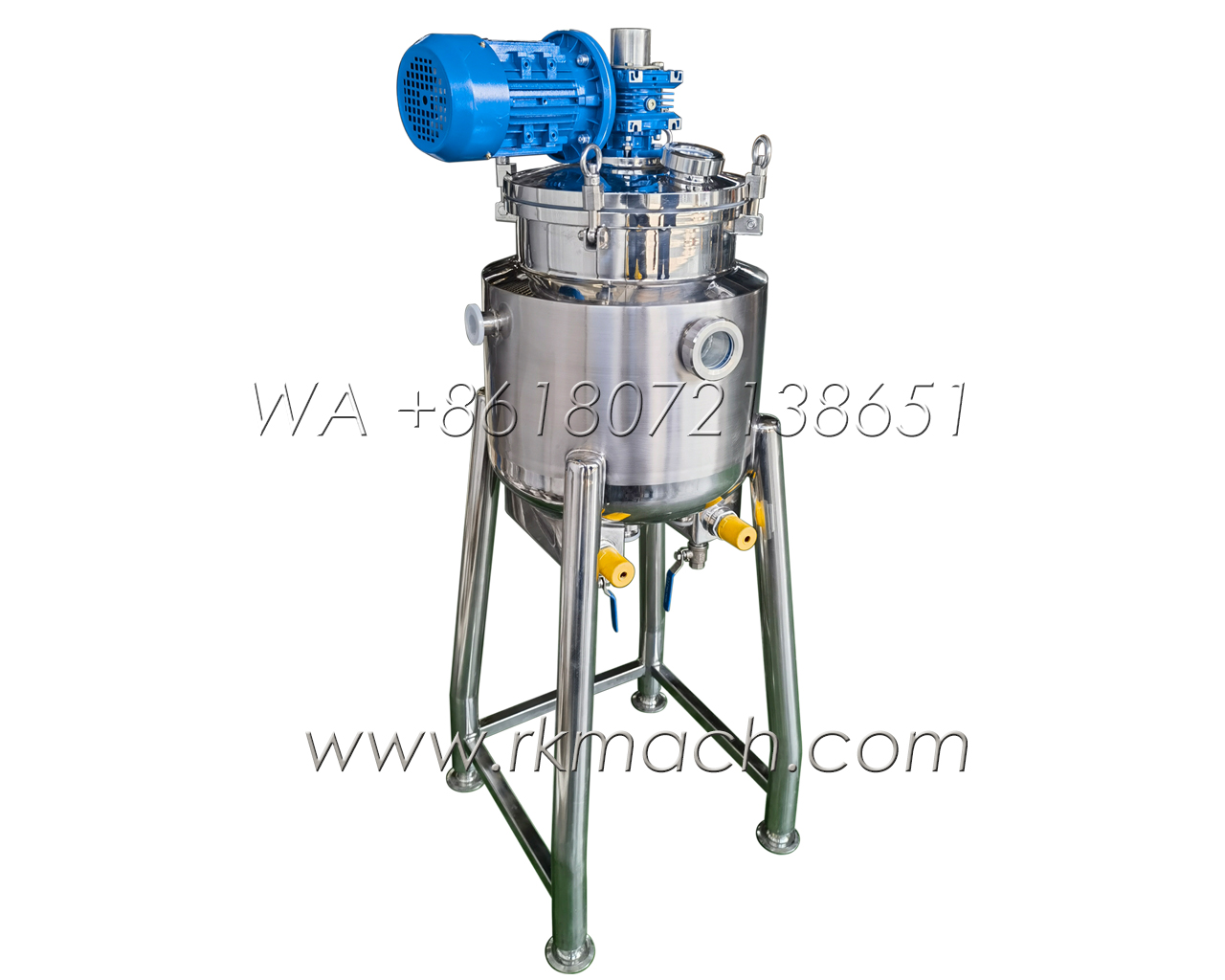

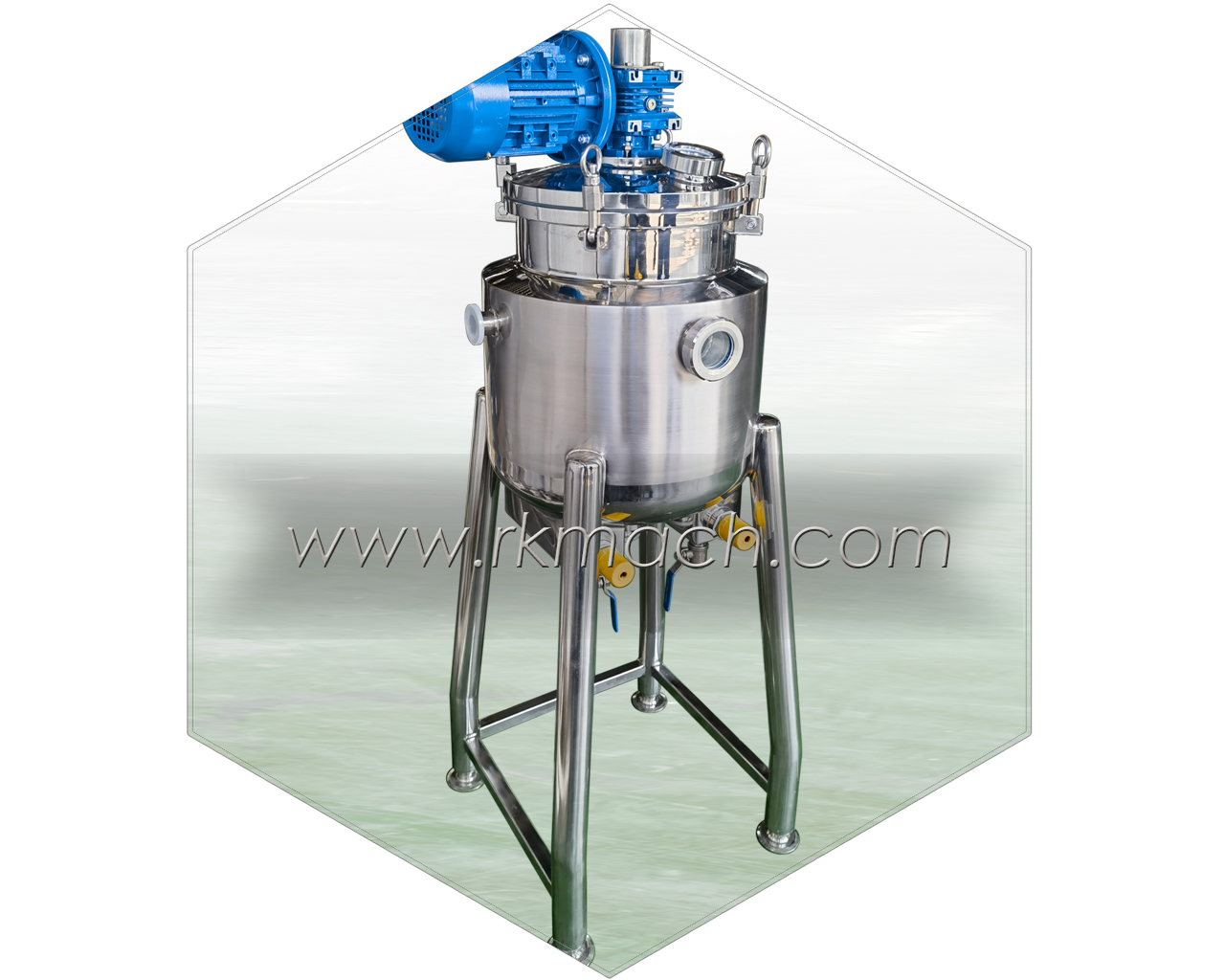

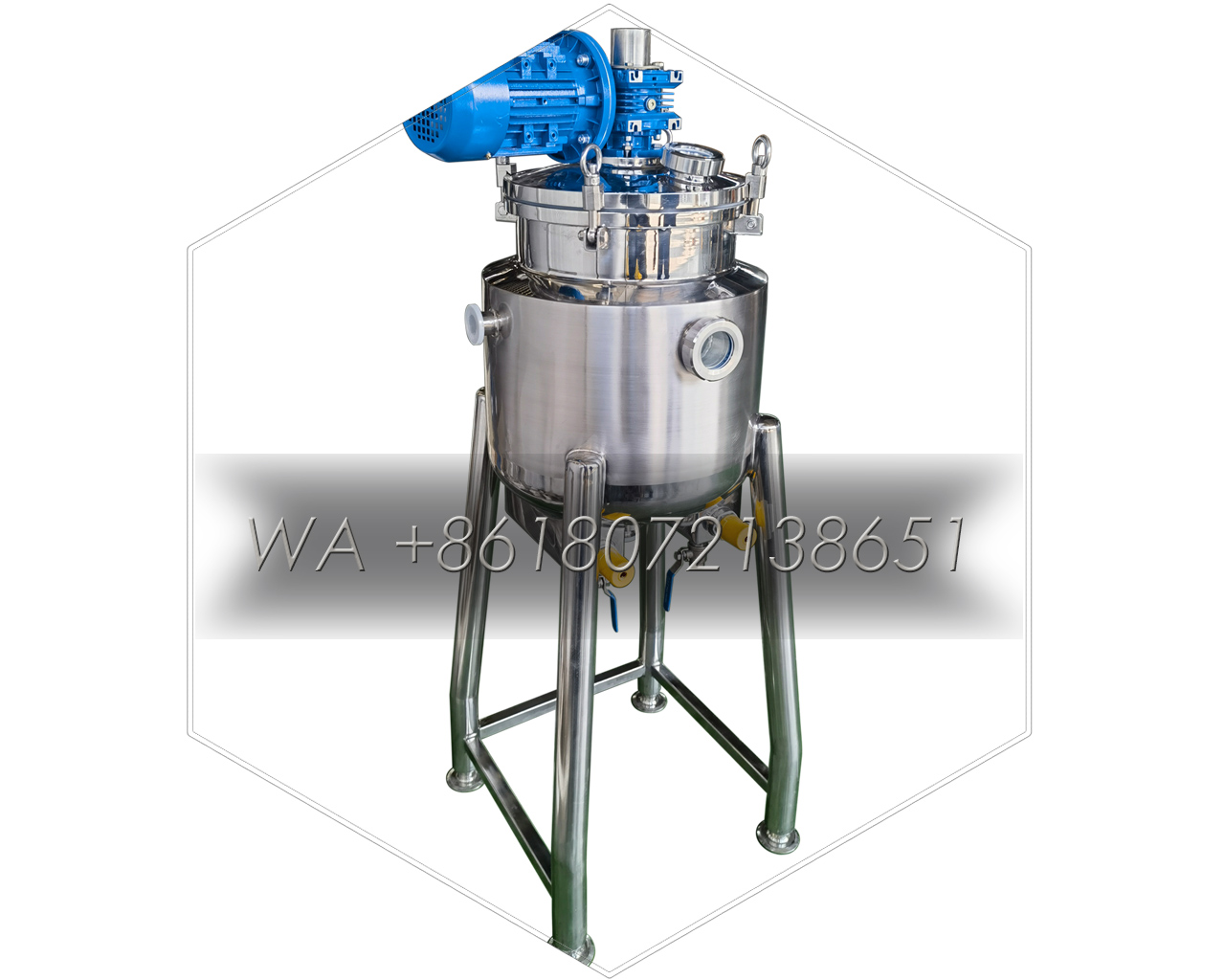

G-FL series Tank / Reactor / Kettle Description
1）Ranking Machinery offer stainless steel tanks / reactors / kettles in different structures and features to meet the needs of customers from different countries and industries. This page mainly introduce you ranking team's G-FL seriese mixing tank and list out some of our hot sell models' technical datesheet.
2）Tank capacity can be offered as small as 20Liter, as big as 20,000Liter. This page will focuse on small scale mixing tanks and reaction vessles from 20Liter to 500Liter.
3）The mixing tanks and vessels listed in this page are heated by build-in electric heaters.
4）Please feel free to make your requests. Our sales staff and technical team will be responsible for meeting your requirements
|

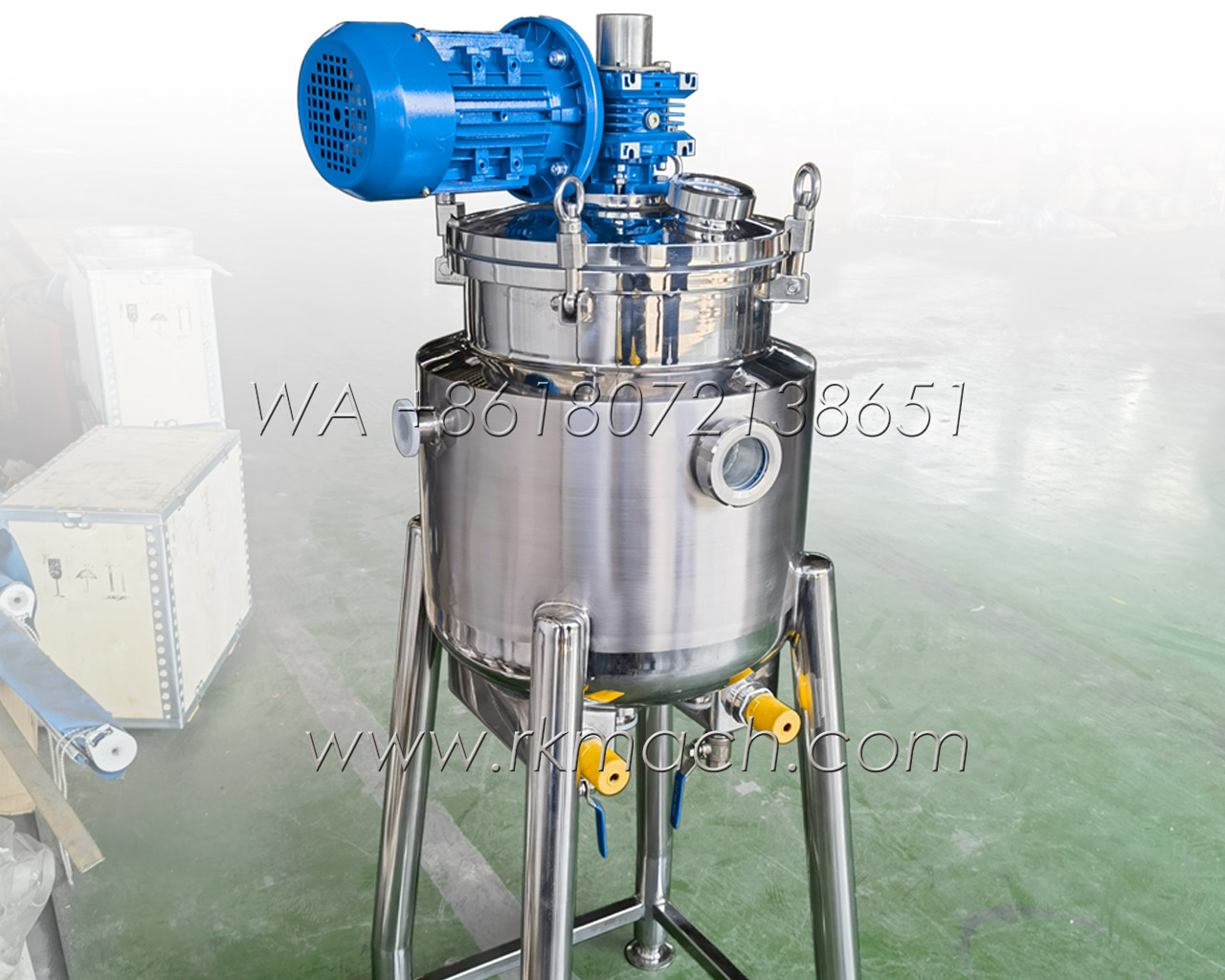

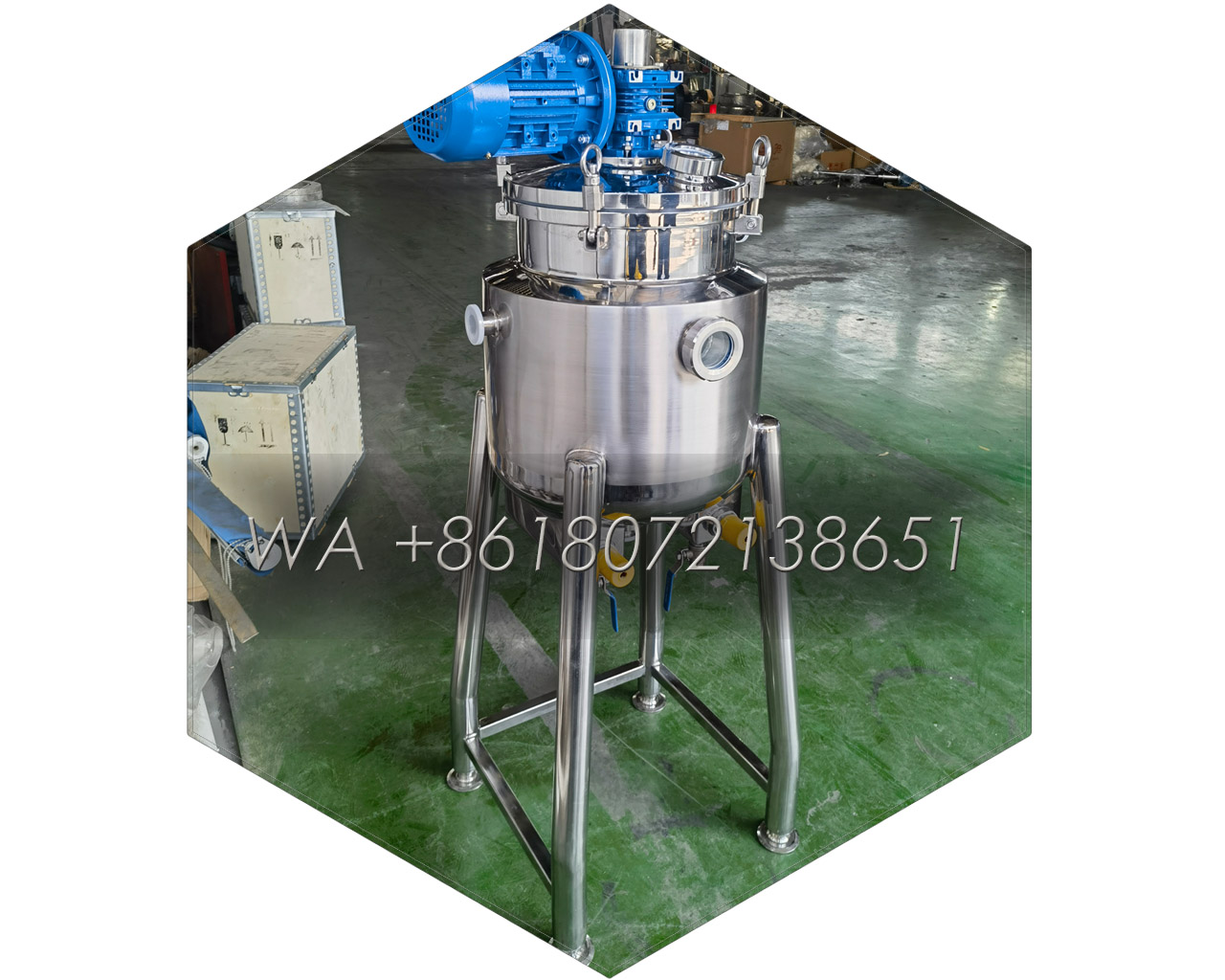

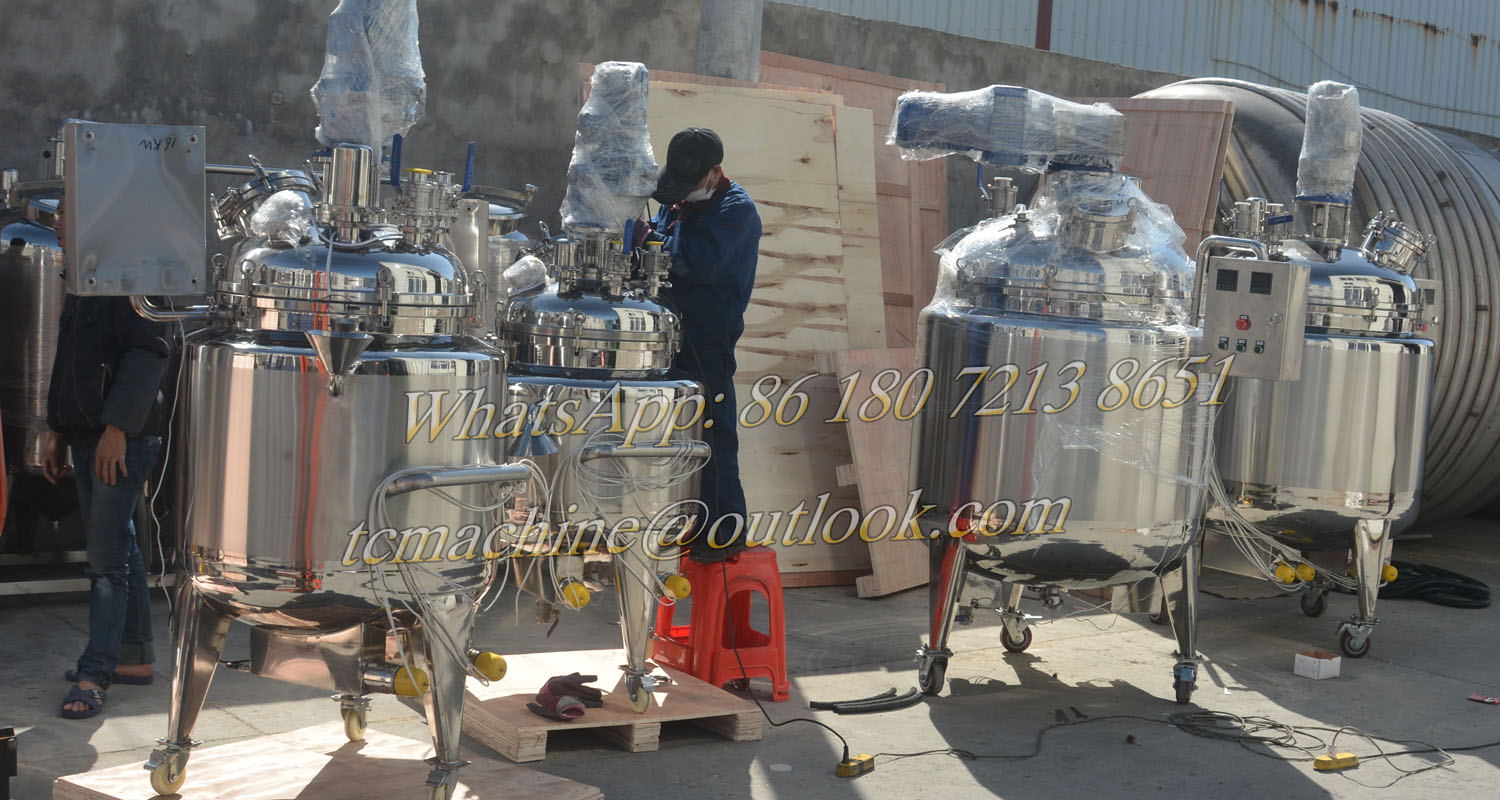

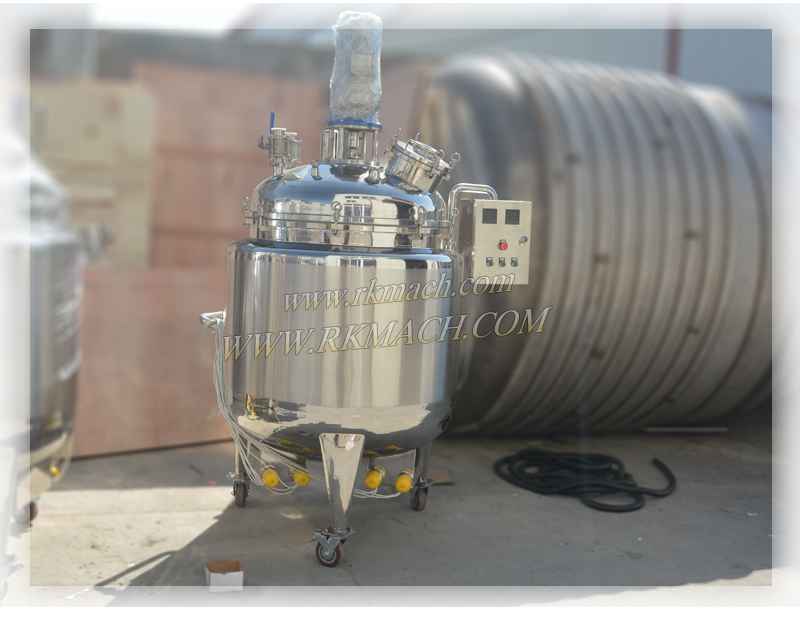

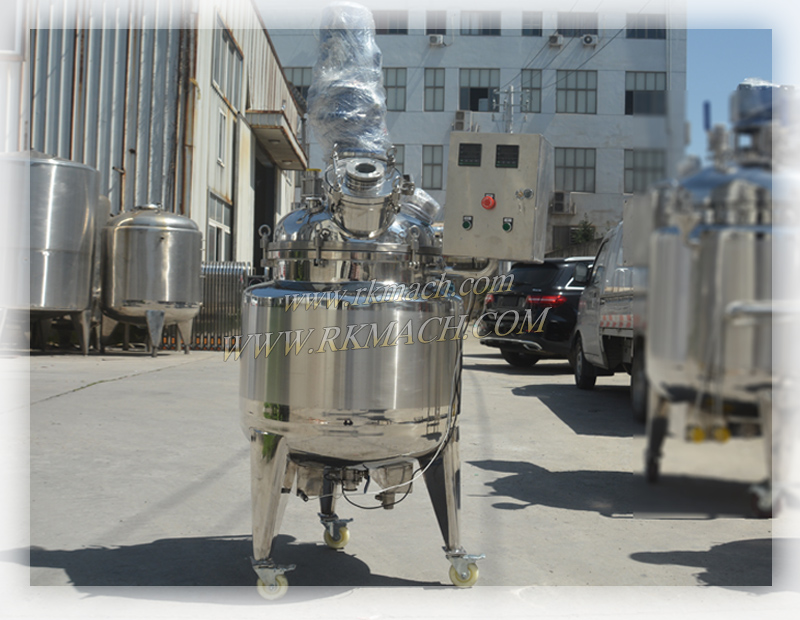

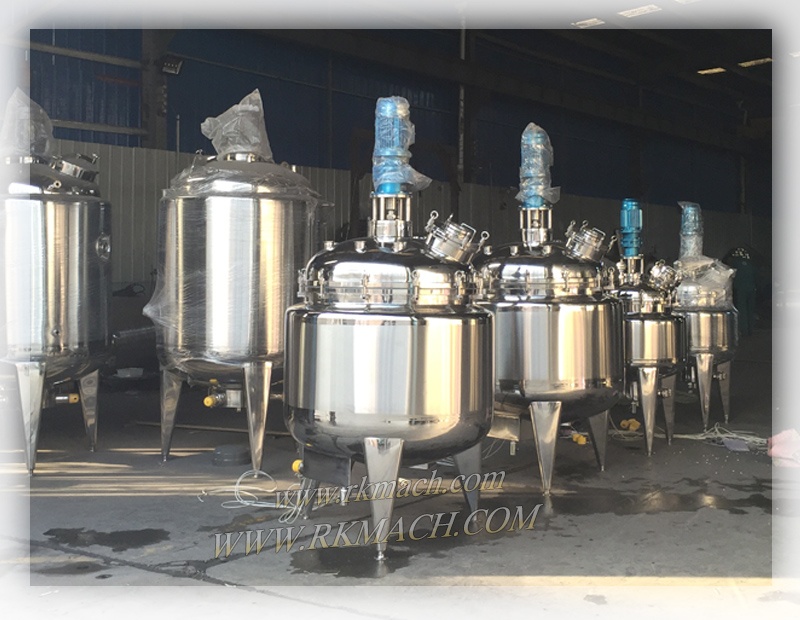

G-FL series mixing tanks customer case
|
Comment & FAQ
1. How big and how small tank capacity you can offer?
A: All stainless steel tanks offered by Ranking Machinery are customzied. the smallest one we can produce is 20Liter, the biggest one we have ever produced is 150,000Liter (for China dosmestic user)
2. What kind of functions you can offer?
A: Ranking Machinery offer tanks with a varity of functions like cooling, heating, mixing, dispersing, homogenizing, emulsifying etc. Buyers can also get basic or programbled functions like time control, temperature control, pressure control, and PH detection and control.
3. What kind of gear reducer you use on your ss tanks?

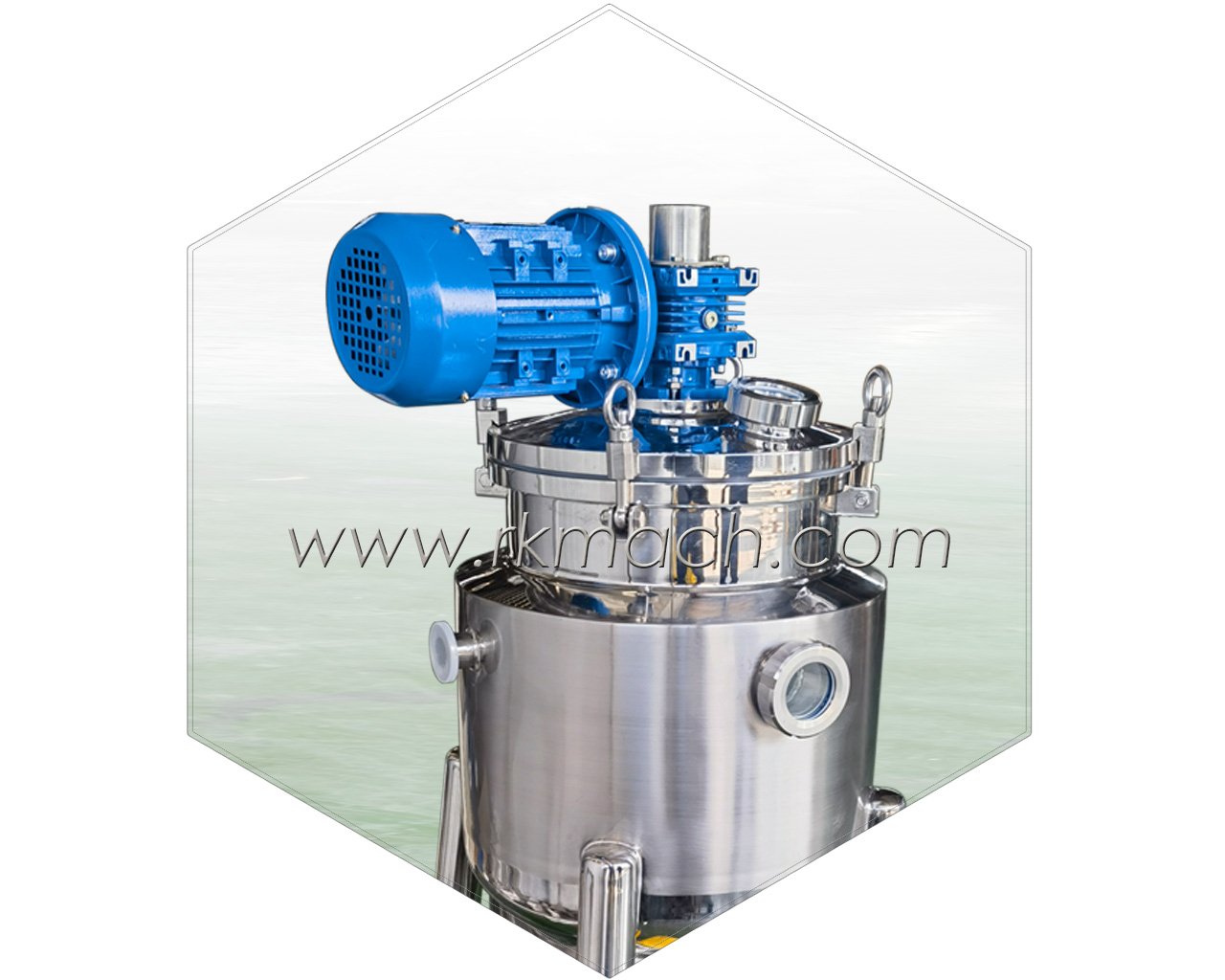

A: Ranking Machinery prefer to use gear reducers like Parallel-axis reducer, helical gear reducer, coaxial reducer, and worm gear reducer.
4. What is your lead time?
A: 20~40 days' lead time for common products.
|
Production Process

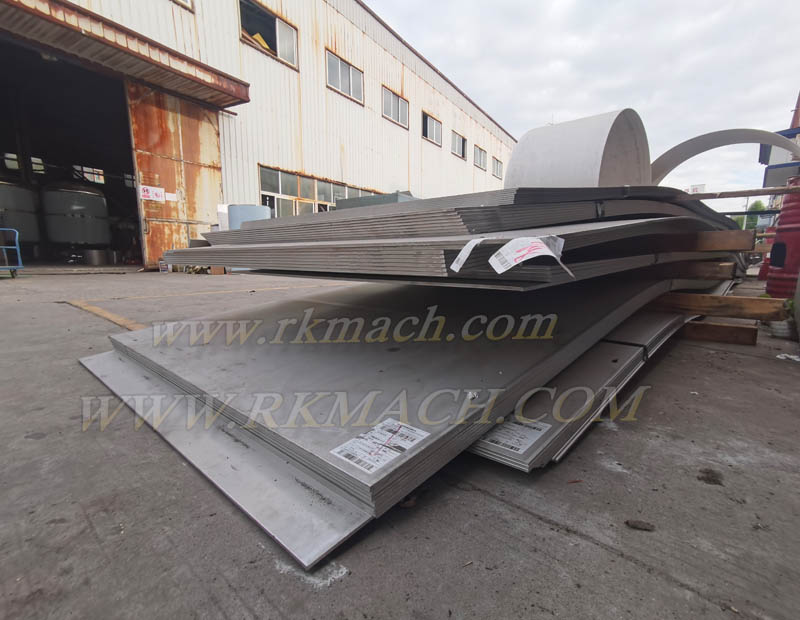

01 Prepare stainless steel sheet

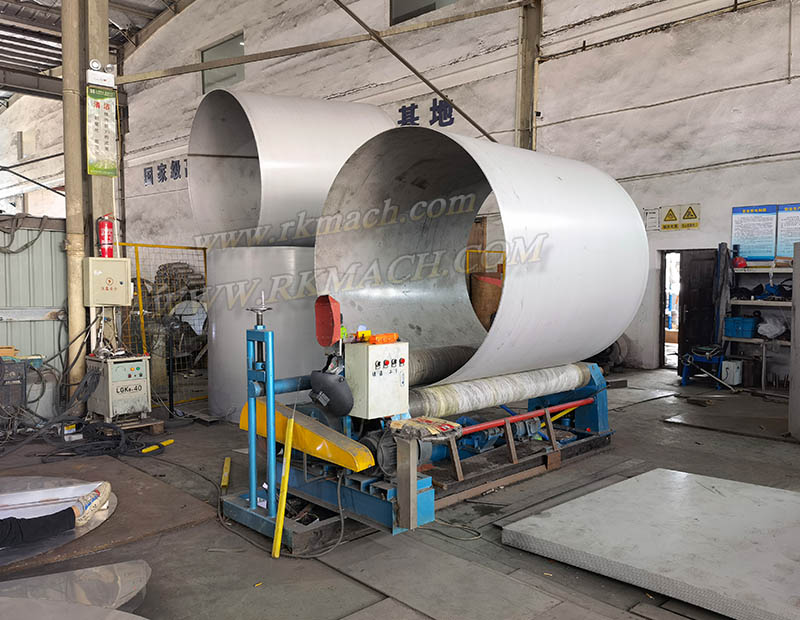

02 Roll the steel plate tobe cylindrical

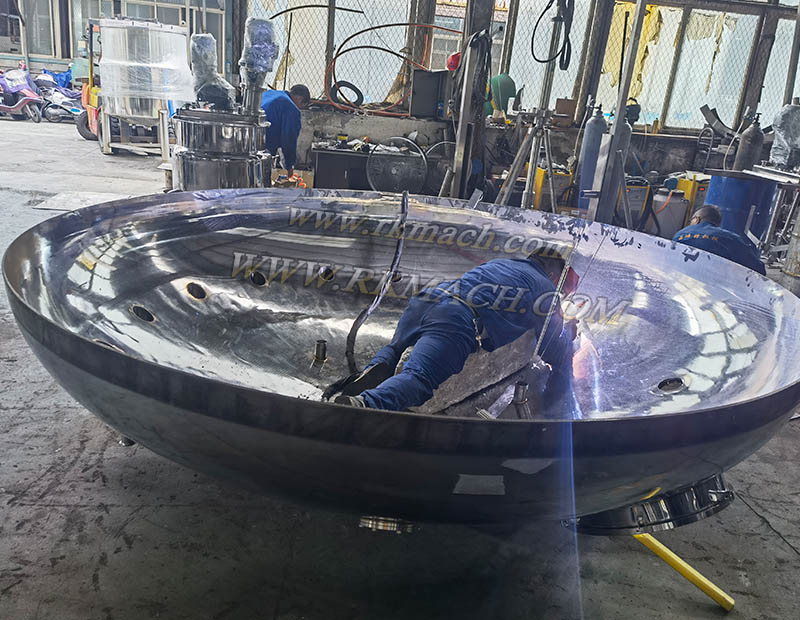

03 Make openings on tan heads
04 Welding dish head / jacketed etc realted parts on cylindrical body
05 Assembly and testing of functional modules

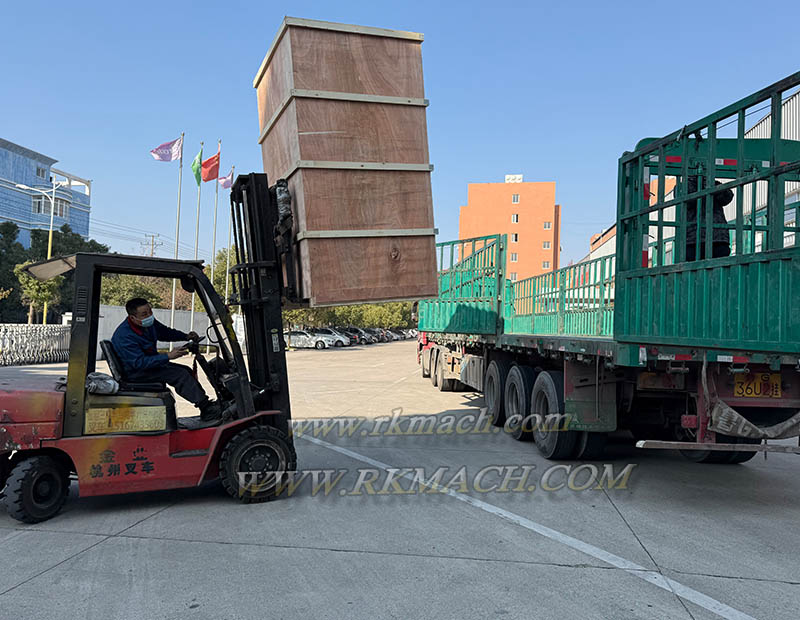

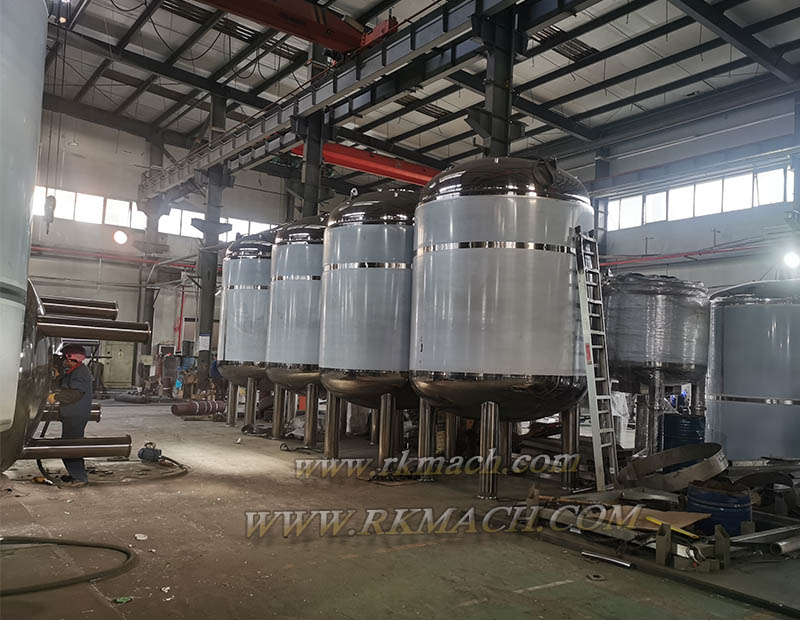

06 Wash the finished tanks before packing and prepare delivery
|
G-FL series tank Data Sheet
| S.N. | Model | G-FL 50L | G-FL 100L | G-FL 200L | G-FL 500L | ... |
| 1 | working capacity | 50 Liter | 100 Liter | 200 Ltr | 500L | |
| 2 | Working pressure | room pressure | ||||
| 3 | Design pressure | room pressure | ||||
| 4 | Contact Material | stainless steel 304 / SS316L | ||||
| 5 | Agitator Motor power | 0.55kw | 0.75kw | 1.1kw | 1.5kw | |
| 6 | Voltage | 208V~240V 60Hz 3phase / 380V~415V 50Hz 3phase | ||||
| 7 | Inner tank dia. x H mm | φ300x300 | φ500x500 | φ700x500 | φ1000x500 | |
| 8 | Jacket dia. | φ400 | φ600 | φ800 | φ1100 | |
| 9 | Thermal-protective material | made by PU foam, no less than 50mm thhickness | ||||
| 10 | Outer Clading dia. | φ500 | φ700 | φ900 | φ1200 | |
| 11 | Wall thickness | 3mm to 18mm, made to order | ||||
| 12 | Ports on tank | φ38 - 2 nos for water inlet φ38 - 1 nos for spare φ25 - 1 nos for cleaning solution other ports made to order | ||||
| 13 | Agitator mixing speed options | 25 / 36 / 60 / 100 /120 / 180 / 200 / 360 rpm or variable speed control | ||||
| 14 | Homogenizing speed options | 3000rpm / 3600rpm fixed or 0~3000rpm adjustable speed with Variable-frequency Drive or 0~3600rpm with Variable-frequency Drive | ||||
| 15 | Heating power | 4~8kw | 6~12kw | 6~24kw | 8~32kw | |
|
Product details

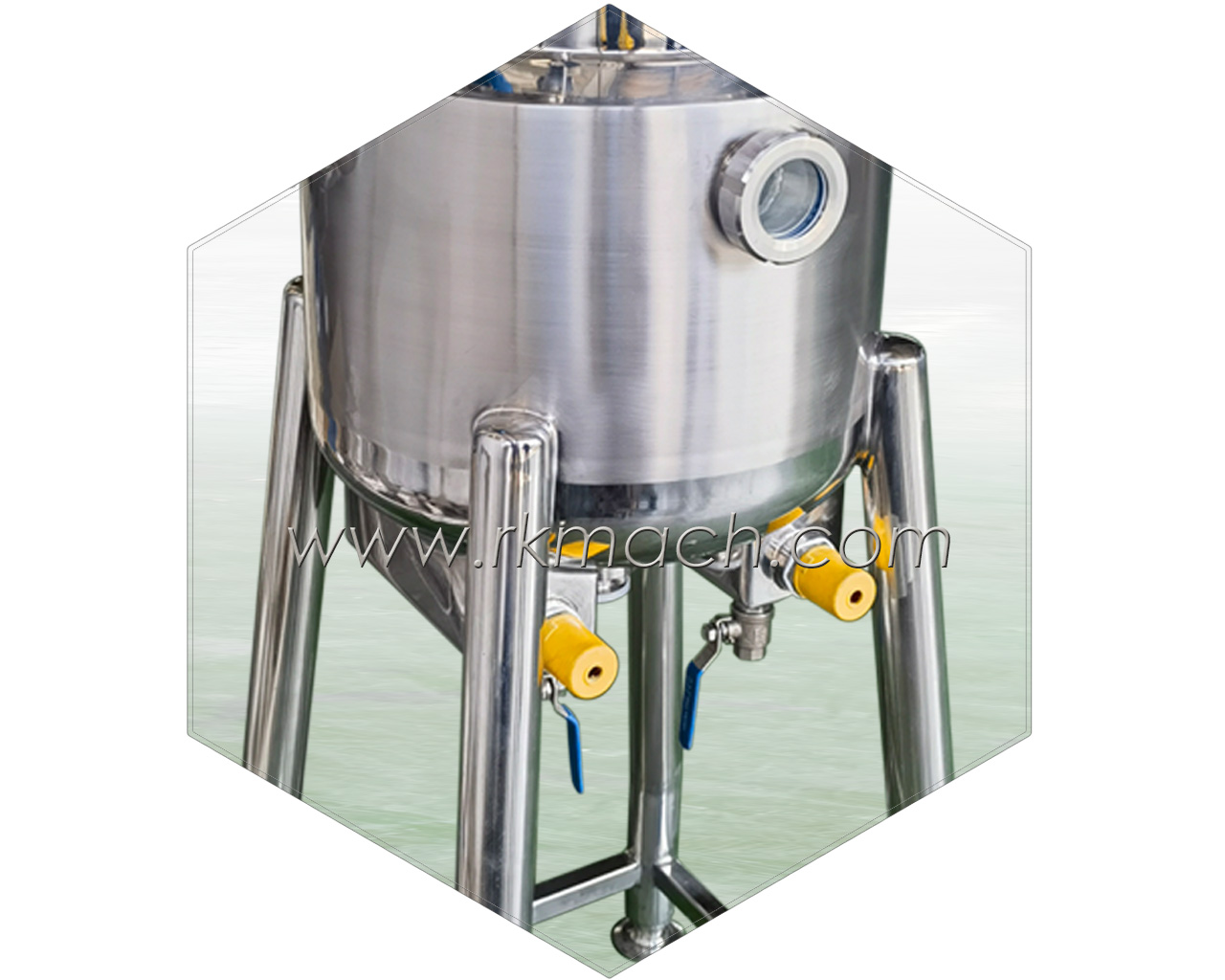

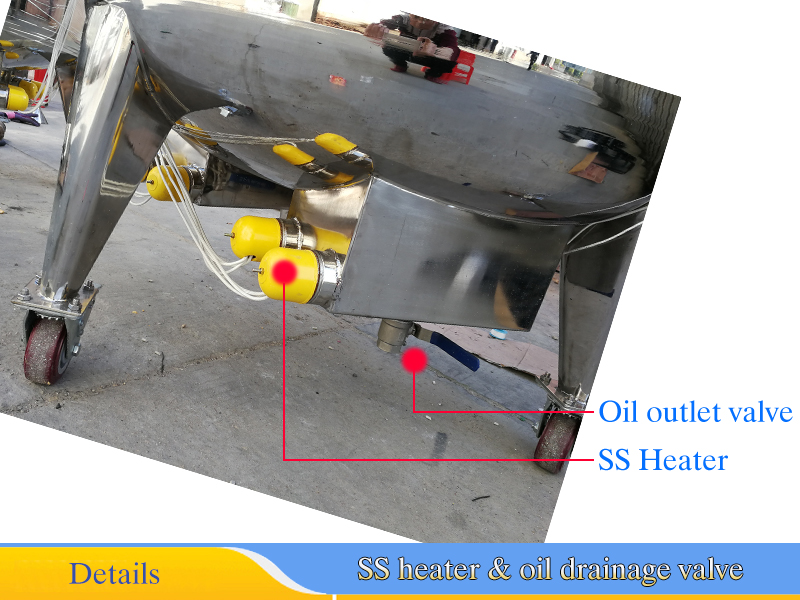

Optimized design for heating elements

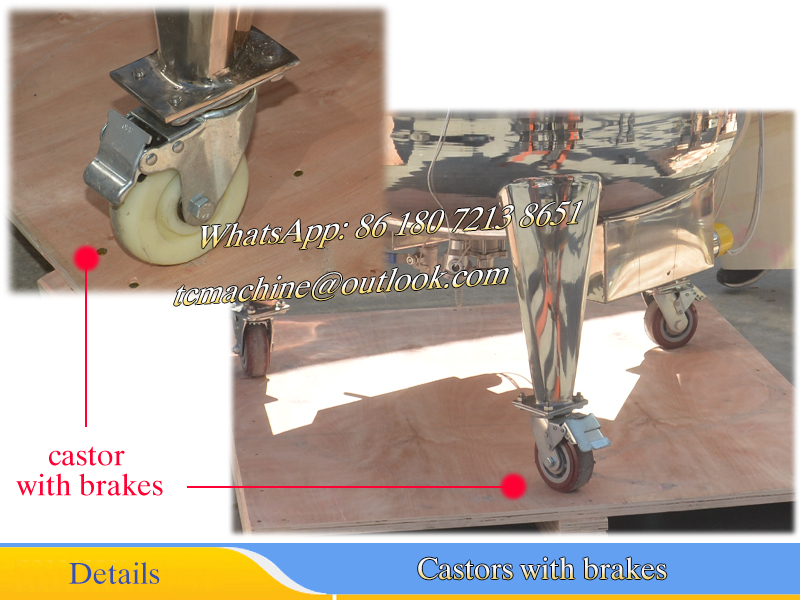

optional universal wheels for easy movement

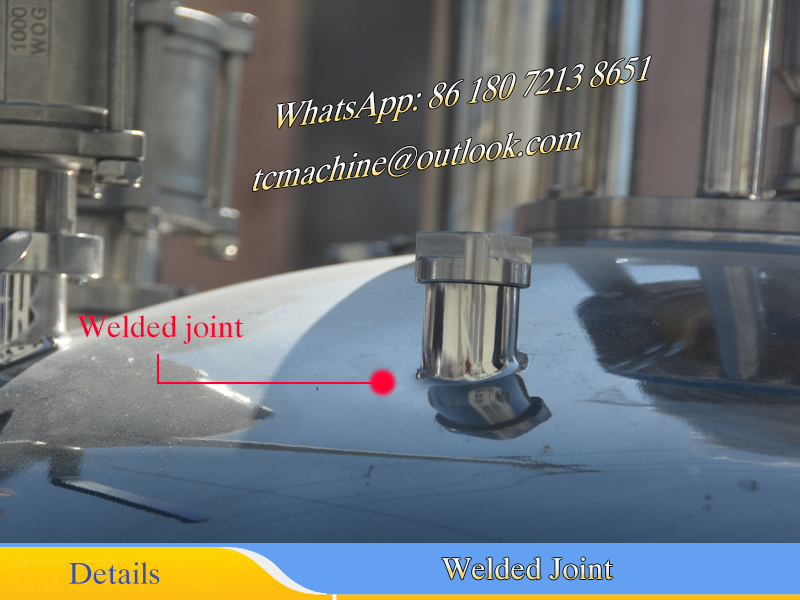

Finely polished weld seams to ensure there are no blind spots
|
Testing Quality
1）No only for the G-FL seriese mixing / homogenizing tanks listed in this page but all produts that offered by RANKING MACHINER will imspected carefully before packing.
2）Welding seams on both inside and outside of the tank wall will be checked, geared motor and the output speed will be checked, mechanical seals will be
