Sealed top mixing tank reactor W/O heating cooling jacket & thermal insulation

Model:
G-SD T series
G-SD E series
Capacity:
300 Liter
500L
800L
1000L
1500L
2000L
3000L
5000L
other capacity
Heating by:
steam / hot water
build in heaters
Mixing system:
cuCustomized
Availability:
Quantity:
Inquire Add to Basket

Main structures
Sketch

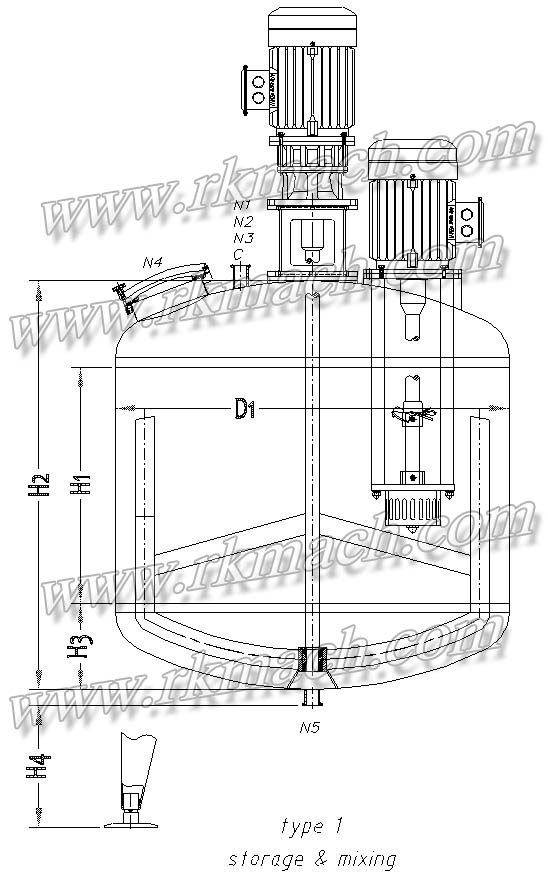

 Type A - storage & mixing
mailto:tcmachine@outlook.com Main Functions
1 Storage  √
2 Blending  √
3 Emulsifying  √
4 Bottom homogenizing  ×
5 Thermal insulation  ×
6 Heating by

steam    ×

 hot water    ×

electric    ×
7 Cooling by  ×
8 Customized capacity  √


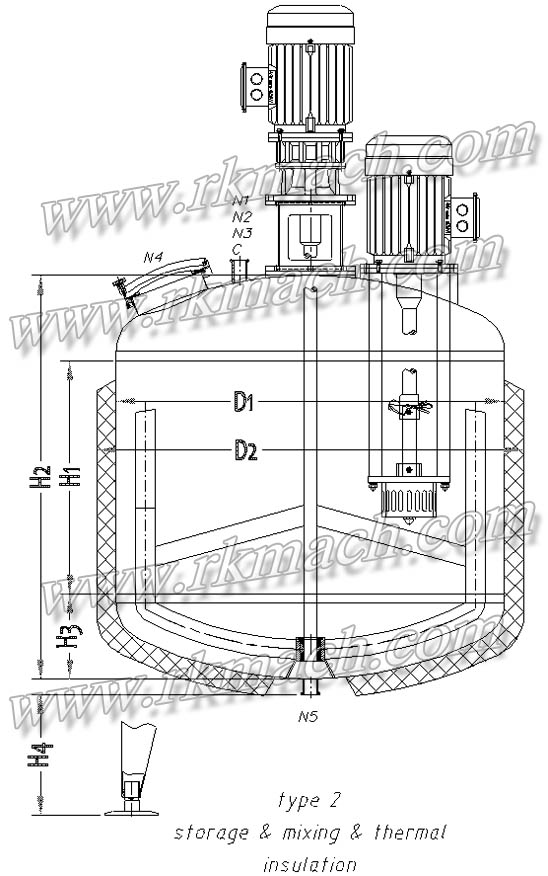

Type B - storage & mixing & thermal insulation
 Sketch
Main Functions
 insulated mixing tank
1 Storage  √
2 Blending  √
3 Emulsifying  √
4 Bottom homogenizing  ×
5 Thermal insulation √
6 Heating by

steam    ×

 hot water    ×

electric    ×
7 Cooling by  ×
8 Customized capacity  √


Sketch

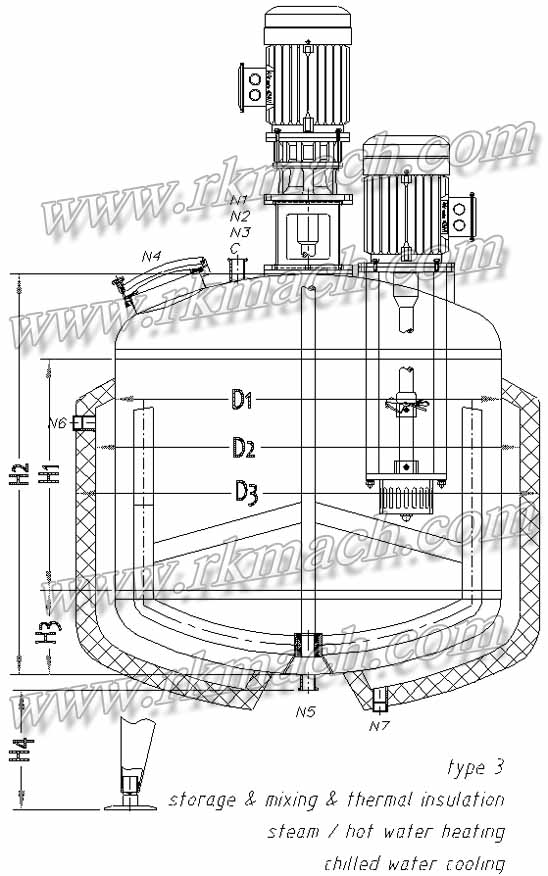

 Type C - storage & mixing & heating / cooling jacket
steam jacketed mixing tank Main Functions
1 Storage  √
2 Blending  √
3 Emulsifying  √
4 Bottom homogenizing  ×
5 Thermal insulation  ×
6 Heating by

steam    √

 hot water    √

electric    ×
7 Cooling by chilled water √
8 Customized capacity  √


Type D - storage & mixing & thermal insulation & bottom homogenizing
 Sketch
Main Functions
 high shear mixer for liquid soap
1 Storage  √
2 Blending  √
3 Emulsifying  √
4 Bottom homogenizing  √
5 Thermal insulation √
6 Heating by

steam    √

 hot water    √

electric    ×
7 Cooling by chilled water √
8 Customized capacity  √


Main Specification for G-SD T series tank body

for example:

a tank diameter D1= 1000mm, vertical welding line H1 = 750mm, full capacity of this tank is = 826Liter

D1=1200mm, H1=1000mm, full capacity = 1530Liter

(Tank thickness can be customized between 3mm to 20mm)



H1  in mm
No.

D1

in mm

6007501000120015001800200024003000
1600226269340396481566622735905
26502703204034695696687358671067
370031837647254966578085710111242
475037143754763676890198911661431
58004285036297308801031113213331634
685049157671883110011171128515121852
790055865381293911301321144817032085
8950631737914105612681481162319062332
910007088261023118014151651180821222593
1010507929221138131215711831200423512870
11110088110241261145117372022221225923162
12115097611321392159919112223243028463469
131200107712471530175620952434266131133792
141250118413681675192122892657290233934130
151300129814971829209424922890315636874483
161350141716321990227627063135342139944853
171400154417752159246729293391369943155238
181450167719252337266831633658398946495640
191500181720822524287734073937429149986058
201550196422472718309636624228460553606492
211600211824192922332439274530493257376943
221650227926003134356242034845527361287411
231700244827883356381044915171562565337895
241750262429853586406747895511599269548397
251800280831903826433550995862637173898916
261850300034044076461354206226676478399452
2719003200362643354902575266037170830410005
2819503409385746035201609769937590878410576
2920003625409748825510645373958024928011165
3020503950444552705930692079108571989111871
31210041884708557462667305834590371042312501
32215044364980588866147703879295181097113149


Main Specification for G-SD E series tank body

for example:

a tank diameter D1= 1000mm, vertical welding line H1 = 750mm, full capacity of this tank is = 890Liter

D1=1200mm, H1=1000mm, full capacity = 1640Liter

(Tank thickness can be customized between 3mm to 20mm)



H1 in mm
No.

D1

in mm

6007501000120015001800200024003000
1600240283353410495580636749919
26502883374204875866867528851084
370034039849457168680287910331264
4750398464574663795928101611931458
58004615366627629131064116513661667
685053061575787010401211132415511892
790060470085998611771368149517492131
8950685792969111113231536167819612387
910007728901086124414791715187221862657
1010508669961212138616451905207824252944
11110096611091346153618222107229726773247
121150107312291489169620082320252729433566
131200118813571640186622062545277132233902
141250130914931800204524132782302735184254
151300143816371969223426333031329638274624
161350157417892147243328633292357841515010
171400171919502335264331053566387444905414
181450187121192532286233583853418348445835
191500203222972739309336234153450652136273
201550220124842956333439004466484355986730
211600237926813183358641894792519459987205
221650256628873421384944905132556064157698
231700276231023670412448055485593968478209
241750296733273929441051315853633472968739
251800318135634199470854716234674377619288
261850340538084480501858246630716882439856
2719003639406447735340619070417608874210443
2819503883433150775674657074668064925811050
2920004136460853936021696479068535979111676
30205045004995582064807470846191211044112421
31210047805299616568587897893696291101413092
322150507156156523724983389427101531160613784
