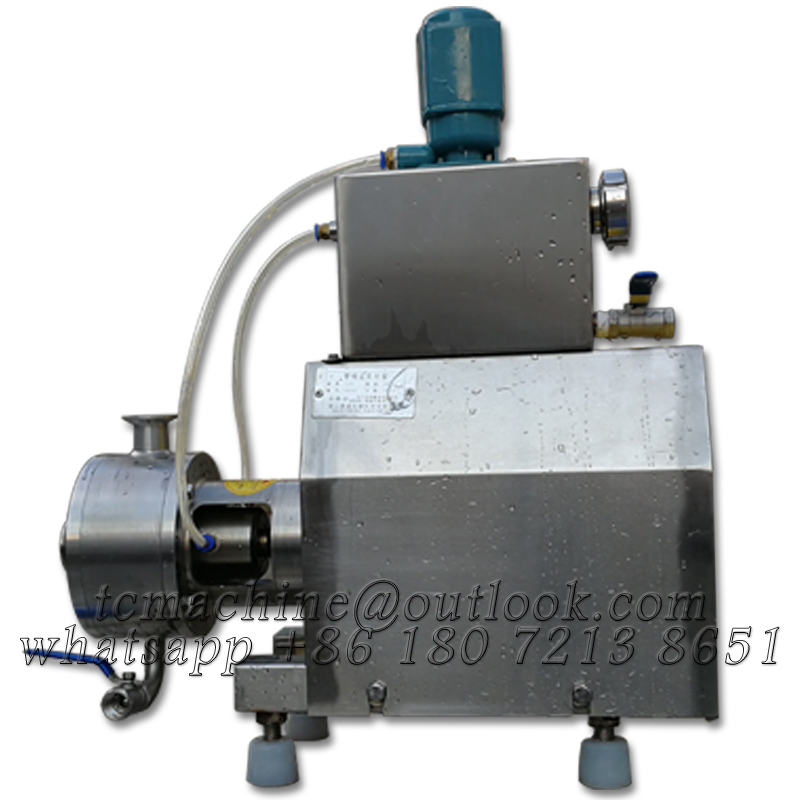

High Shear In-Line Mixer / emulsion pump

inline shear mixer, emulsion homogenizing pump,
contact part to be SS304 / SS316L,
suitable for 220V~415V voltage
1.5kw~30kw available,
single stage and multi stage
with cooling water storage tank
with cooling water circulation pump

IML-1:	1.5kw 2.2kw 3kw 4kw 5.5kw 7.5kw 11kw 15kw 18.5kw 22kw 30kw
Availability:

Quantity:



Inquire Add to Basket

Model:
ILM-1-2.2
Material:
1
Flow rate:
2000L/H
Lift head:
2m
Cooling:
water cooling
Voltage:
1

Sanitary Inline continuous Mixer/Emulsifier is designed as high speed, high shear mixer and emulsifier for emulsion processing. Constructed of SS304 / SS316L, Inline shear mixer is mainly composed of internal rotor-stator, housing, shafting, motor and base. Water cooling unit, powder hopper, circulation pipeline and trolley are optional.

rotor and stator

The unique designed rotor-stator assembly provide optimal throughout and flow. In addition, the shear rates generated ensure droplet and particles size reduction down to 5μm with excellent distribution.

Inline Shear Mixer in-line shear mixer in line shear mixer inline emulsifier inline high shear mixer high shear inline mixer Sanitary Inline continuous Mixer emulsion pump emulsify pump Inline continuous Emulsifier

Send your message to this supplier

To: Tonny

Product Category

PROFESSIONAL SOLUTION FOR YOU

Related Products

Inline High Shear Dispersing Emulsion Pump

3 stage inline continuous mixer with castor

3-stage on line mixer emulsifier

single stage inline continuous mixer with castor

Model	ILM-1-1.5	ILM-1-2.2	ILM-1-3	ILM-1-4	ILM-1-5.5	ILM-1-7.5	ILM-1-11	ILM-1-15
Motor power	1.5	2.2	3	4	5.5	7.5	11	15
Voltage (3phase AC)	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V
Rotation speed	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm
Flow rate m³/h	0~2	0~2	0~3	0~4	0~5	0~8	0~11	0~13
Wet material	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L
Inlet size	φ25	φ38	φ51	φ51	φ51	φ63	φ63	φ76
Outlet size	φ25	φ38	φ51	φ51	φ51	φ63	φ63	φ76
Connection	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union
Overall dimension	380×300 ×550	380×30 0×550	420×35 0×650	450×36 0×650	500×38 0×650	500×40 0×700	600×45 0×700	700×50 0×800

Model	ILM-1-1.5	ILM-1-2.2	ILM-1-3	ILM-1-4	ILM-1-5.5	ILM-1-7.5	ILM-1-11	ILM-1-15
Motor power	1.5	2.2	3	4	5.5	7.5	11	15
Voltage (3phase AC)	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V	110V 220V 380V 415V
Rotation speed	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm
Flow rate m³/h	0~2	0~2	0~3	0~4	0~5	0~8	0~11	0~13
Wet material	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L	SS304/316L
Inlet size	φ25	φ38	φ51	φ51	φ51	φ63	φ63	φ76
Outlet size	φ25	φ38	φ51	φ51	φ51	φ63	φ63	φ76
Connection	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union	clamp flange thread union
Overall dimension	380×300 ×550	380×30 0×550	420×35 0×650	450×36 0×650	500×38 0×650	500×40 0×700	600×45 0×700	700×50 0×800

Motor power	Voltage		Material		Trolley	Cooling unit	Hopper	Circulation pipe	Sight glass
Motor power	380V	220V	SS304	SS316L	Trolley	Cooling unit	Hopper	Circulation pipe	Sight glass
1.5kw	√	√	√	√	√	√	√	√	√
2.2kw	√	√	√	√	√	√	√	√	√
3kw	√	√	√	√	√	√	√	√	√
4kw	√	√	√	√	√	√	√	√	√
5.5kw	√	√	√	√	√	√	√	√	√
7.5kw	√	√	√	√	√	√	√	√	√
11kw	√	√	√	√	√	√	√	√	√
15kw	√	√	√	√	√	√	√	√	√
...
