Inline High Shear Dispersing Emulsion Pump

three-stage inline dispersing emulsifying mixer,
sanitary design, contact material to be SS3104 / SS316L,
inlet and outlet are quick-connect structure.
The working chamber is equipped with three-set of stator and rotor,
Model:
Motor Power:
Voltage:
Wetted material:
Optional :
Availability:
Quantity:
Similar Words: Inline Mixer, Inline High Shear Mixer, High Shear Pump, Inline Disperser, Inline Homogenizing Mixer

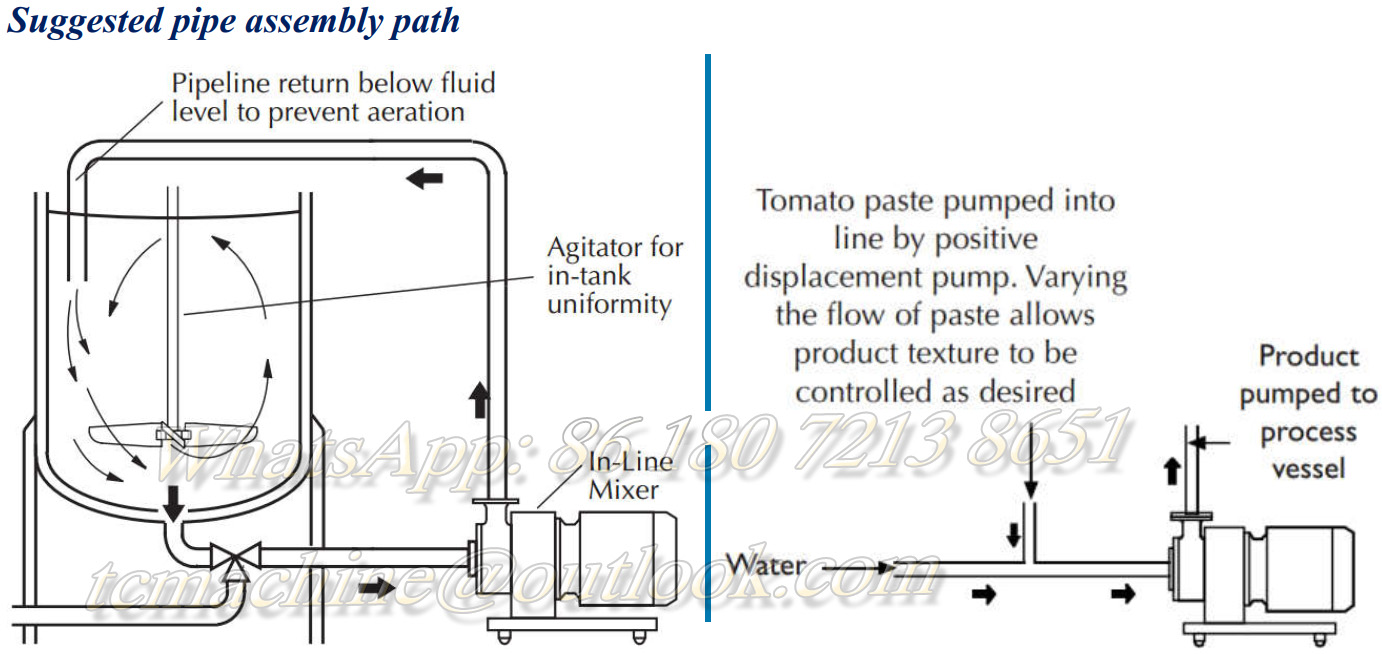

This inline emulsion mixer is a high shear mixer for inline or continuous operation with special designed motor-base. In the Inline emulsifying process, this high shear mixer is installed outside the tank. Emulsion or mixture from the holding tank / mixing tank / chemical reactor  flow to the inline shear mxier, pass through the rotor-stator sets and got homogenized. the mixture will finally flow back to the holding tank / mixing tank / chemical raction vessel. That means, during the homogenizing process, mixture will pass thorugh a closed circuit during the tank and inline shear pump.This makes it easy to be built into an existing production line with common inlet/outlet connections. To deal with liquid with low viscosity, the inline mixer can pump the liquid without an additional pump. That is why it is also called High Shear Pump. The mixer can be used to deal with the product in a single pass or with several circulations to make the product better.


inline shear mixer pipeline

Multi-stage Stator and Rotor

The multi-stage (usually two-stage and three-stage) inline mixer has two / three sets of stator/rotor systems to enhance its shearing performance. The extra long motor-base desing is mainly used to enhance the stability during the shearing process.This design dramatically reduce processing time, and in some cases only one pass through of the mixture can lead to satisfied products.


2-stage inline shear mxier (model ILM-2X) comes with two low lift head, but the other two-stage inline mixer (model ILM-2X) comes with high lift head.

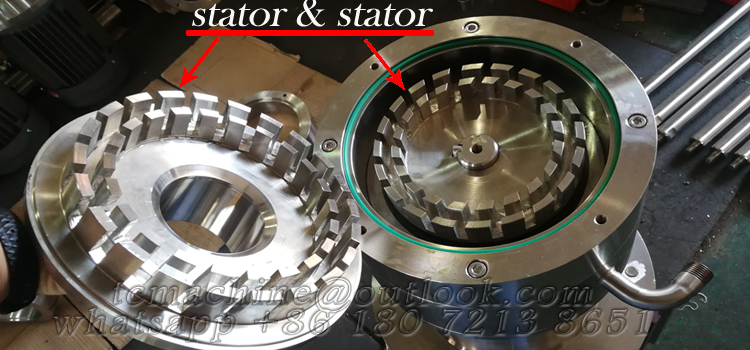

Depending on the materials to be processed and customer requirements, for each stator/rotor, there can be only one row, or multi-row of teeth. Besides, Ranking Machinery provides coarse, medium and fine teeth to achieve different shearing intensity.

rotor and stator 750x350


Inline Emulsifier Mixers Applications
Inline Emulsifier Mixers offered by Ranking Machinery model ILM-3X / ILM-2X / ILM-HX are all widely used by a variety of industries in different stages of the processing. They are highly efficient to save a lot of energy and time compared with traditional inline shear mxier and many other mixing methods.


- Food & Beverage

Reconstituted milk, Salad dressing, Mayonnaise, Ice cream, Cheese, Yogurt, Fruit juice


- Pharmaceutics & Biology

Drug synthesis, Vaccine, Fat emulsion, Injectable suspension, Veterinary medicine, Cell extraction


- Cosmetics & Daily Care

Detergent, Body gel, Shampoo, Cream, Lotion, Tooth paste, Soap


- Chemicals & Oil Industry

Synthetic rubber, Resin, Bitumen, Silicon oil, Dye, Pigment, Coating, Ink, Nano material


High shear mixer / inline shear mixer / emulsion pump Main Specification

here below is the specification table of our high shear inline mixer / emulsion pump. The most hot sell ones are

  • 4kw high shear inline mixer model ILM-3X-4,

  • 5.5kw in-line shear mixer model ILM-3X-5.5

  • 7.5kw high shear emulsifier model ILM-3X-7.5

  • 11 kw and 15kw high shear mixer model ILM-3X-11

with two-stage or 3-stage stator rotor assembly

ModelILM-3X-2.2ILM-3X-3ILM-3X-4ILM-3X-5.5ILM-3X-7.5ILM-3X-11ILM-3X-15

Motor power

2.2345.57.51115

Voltage

(3phase AC)

110V

220V

380V

415V

110V

220V

380V

415V

110V

220V

380V

415V

110V

220V

380V

415V

110V

220V

380V

415V

110V

220V

380V

415V

110V

220V

380V

415V

Rotation speed3000rpm3000rpm3000rpm3000rpm3000rpm3000rpm3000rpm
Flow rate m³/h0~20~30~40~50~80~110~13
Wet materialSS304/316LSS304/316LSS304/316LSS304/316LSS304/316LSS304/316LSS304/316L
Inlet sizeφ38φ51φ51φ51φ63φ63φ76
Outlet sizeφ38φ51φ51φ51φ63φ63φ76
Connection

clamp

flange

thread

union

clamp

flange

thread

union

clamp

flange

thread

union

clamp

flange

thread

union

clamp

flange

thread

union

clamp

flange

thread

union

clamp

flange

thread

union

Overall dimension

880×30

0×550

950×35

0×650

950×36

0×650

1100×38

0×650

1200×40

0×700

1350×45

0×700

1400×50

0×800
