Model: | |
---|---|
Material: | |
Voltage: | |
Availability: | |
Quantity: | |
Rotary lobe pumps are widely used in a variety of industries including, pulp and paper, chemical, food, beverage, pharmaceutical, and biotechnology due to its ultra-low shear feeding.
sanitary lobe pump are self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 150,000CP.
Rotary lobe pumps are widely used in a variety of industries including, pulp and paper, chemical, food, beverage, pharmaceutical, and biotechnology due to its ultra-low shear feeding.
sanitary lobe pump are self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 150,000CP.
The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the rotary lobe pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.
The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the rotary lobe pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.
Tri lobe Name: tri-lobe Material: stainless steel 304 / 316L Tri-lobe are fixed between the front coverand the pump housing. All the lobes that we offered are made of SS304 and SS316L based on user's reqeust. All the lobes are sanitary polished and corrosion resistance. tri-lobe is the most commen lobes in rotary lobe pump of both low viscosity and high viscosity fluid |
Single wing lobe
Single lobes are used to the rotary pumps for thick fluid such as yogurt with fruit berry. The Single lobe allowing lobe pump to handle solids such as cherries or olives without damage. They are also used to handle slurries, pastes, and a wide variety of other liquids |
Bi-wing lobe Name: bi-wing lobe bi-wing lobes are used for the transfer of suspension liquid with particles or fruit pulps. this special designed lobe will protect the pulp and particles in the processing fluid from damage. if the particle or pulp content is high, single lobe maybe a better choice |
Name: mechanical seal Quantity: 2 Nos |
Tri lobe Name: tri-lobe Material: stainless steel 304 / 316L Tri-lobe are fixed between the front coverand the pump housing. All the lobes that we offered are made of SS304 and SS316L based on user's reqeust. All the lobes are sanitary polished and corrosion resistance. tri-lobe is the most commen lobes in rotary lobe pump of both low viscosity and high viscosity fluid |
Single wing lobe
Single lobes are used to the rotary pumps for thick fluid such as yogurt with fruit berry. The Single lobe allowing lobe pump to handle solids such as cherries or olives without damage. They are also used to handle slurries, pastes, and a wide variety of other liquids |
Bi-wing lobe Name: bi-wing lobe bi-wing lobes are used for the transfer of suspension liquid with particles or fruit pulps. this special designed lobe will protect the pulp and particles in the processing fluid from damage. if the particle or pulp content is high, single lobe maybe a better choice |
Name: mechanical seal Quantity: 2 Nos |

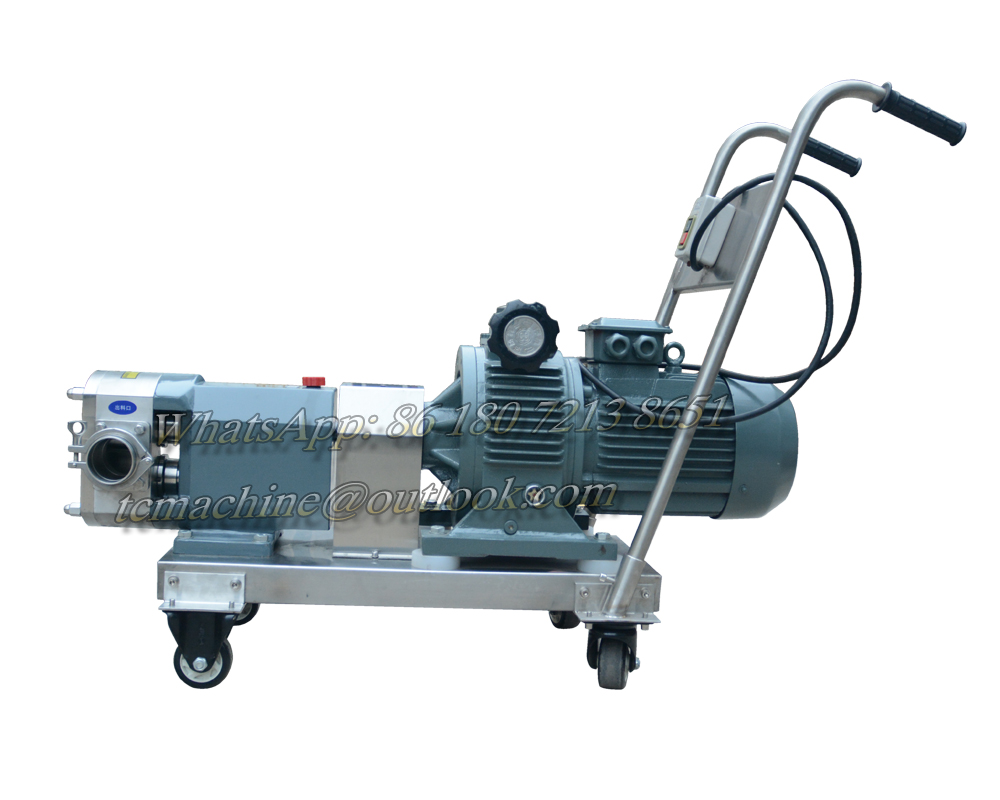

Main specification of our lobe pumps (wheels are optional)
Model | Z-3 | Z-6 | Z-8 | Z-12 | Z-20 | Z-30 | Z-36 | Z-52 | |
Wetted material | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | |
Unit price | 1460 | 1680 | 1950 | 2480 | 2700 | 2980 | 3280 | 4060 | |
Displacement L/100rpm | 3 | 6 | 8 | 12 | 20 | 30 | 36 | 52 | |
Speed control | variable | variable | variable | variable | variable | variable | variable | variable | |
Speed range rpm | 200~500 | 200~500 | 200~500 | 200~500 | 200~500 | 200~400 | 200~400 | 200~400 | |
Flow rate L/H | 300-800 | 650-1600 | 850-2100 | 1300-3200 | 2100-5400 | 3200-6400 | 3800-7600 | 5600-11000 | |
Motor power kw | 0.55 | 0.75 | 1.5 | 2.2 | 3 | 4 | 4 | 5.5 | |
Orifice Size mm | Φ25×1.5 | Φ25×1.5 | Φ25×1.5 | Φ32×1.5 | Φ38×1.5 | Φ50.8×1.5 | Φ50.8×1.5 | Φ50.8×1.5 | |
Connection type | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | |
Seal material | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | |
Size | L | 710 | 780 | 850 | 980 | 1000 | 1050 | 1100 | 1250 |
H | 290 | 390 | 400 | 450 | 450 | 480 | 490 | 580 | |
H1 | 150 | 170 | 170 | 185 | 190 | 220 | 220 | 260 | |
W | 150 | 190 | 190 | 220 | 250 | 270 | 270 | 270 | |
W1 | 240 | 240 | 280 | 330 | 330 | 350 | 360 | 480 | |
Tips | The specification listed here only for reference. Orifice size and connection type in this table are clamp type. flange and thread type ones are alao avaliable. |
Main specification of our lobe pumps (wheels are optional)
Model | Z-3 | Z-6 | Z-8 | Z-12 | Z-20 | Z-30 | Z-36 | Z-52 | |
Wetted material | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | SS316 | |
Unit price | 1460 | 1680 | 1950 | 2480 | 2700 | 2980 | 3280 | 4060 | |
Displacement L/100rpm | 3 | 6 | 8 | 12 | 20 | 30 | 36 | 52 | |
Speed control | variable | variable | variable | variable | variable | variable | variable | variable | |
Speed range rpm | 200~500 | 200~500 | 200~500 | 200~500 | 200~500 | 200~400 | 200~400 | 200~400 | |
Flow rate L/H | 300-800 | 650-1600 | 850-2100 | 1300-3200 | 2100-5400 | 3200-6400 | 3800-7600 | 5600-11000 | |
Motor power kw | 0.55 | 0.75 | 1.5 | 2.2 | 3 | 4 | 4 | 5.5 | |
Orifice Size mm | Φ25×1.5 | Φ25×1.5 | Φ25×1.5 | Φ32×1.5 | Φ38×1.5 | Φ50.8×1.5 | Φ50.8×1.5 | Φ50.8×1.5 | |
Connection type | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | |
Seal material | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | Alloy | |
Size | L | 710 | 780 | 850 | 980 | 1000 | 1050 | 1100 | 1250 |
H | 290 | 390 | 400 | 450 | 450 | 480 | 490 | 580 | |
H1 | 150 | 170 | 170 | 185 | 190 | 220 | 220 | 260 | |
W | 150 | 190 | 190 | 220 | 250 | 270 | 270 | 270 | |
W1 | 240 | 240 | 280 | 330 | 330 | 350 | 360 | 480 | |
Tips | The specification listed here only for reference. Orifice size and connection type in this table are clamp type. flange and thread type ones are alao avaliable. |
