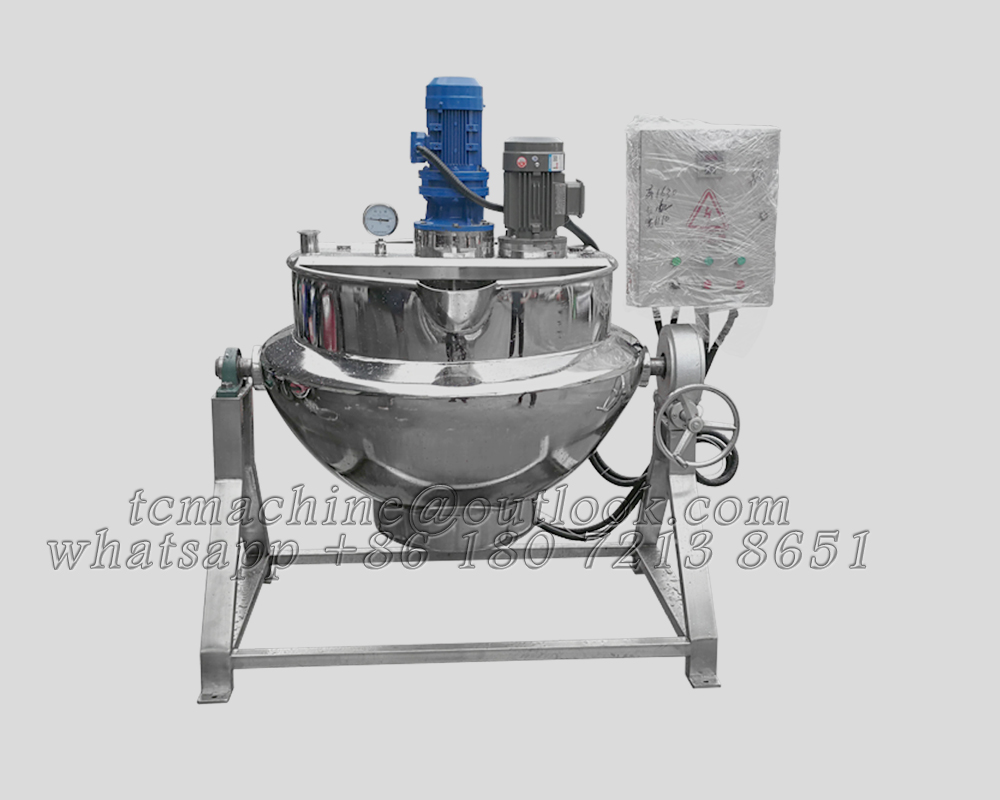

500Liter electric heating jacketed kettle with high shear mxier
Main specification
Items | K-TM-500 | ||
Power supply | 220V 60Hz 3phase 380V 50Hz 3phase | ||
Pot | Diameter mm | Φ1100 | |
Depth mm | 850 | ||
Insulation | 2 inch | ||
Material & Thickness | Inner wall | SS316L 3mm | |
Oil jacket | SS304 3mm | ||
Outer wall | SS304 1.5mm | ||
Full capacity L | 560 | ||
Heating oil needed | No more than 80Liter (gap between inner wall and jacket is 104 liter) | ||
Pipe Size | 3/4” | ||
Stirring power kw | 1.5kw | ||
Mixing speed | 36rpm | ||
Electrical Heating Power kw | 24kw (8kw×3Nos) | ||
Heat transfer area M2 | 2.0 | ||
Design temperature ℃ | 300 | ||
Max working temperature ℃ | 280 | ||
Design pressure MPa | 0.095 | ||
Max working pressure MPa | Normal | ||
Maximum tillable Angle | 90° | ||
Overall dimensions | Length mm | 1810 | |
Width mm | 1410 | ||
Height mm | 2115 | ||
Volume | M3 | 5.4 (after packing) | |
Weight | N.W. / G.W. kg | 485 / 530 | |
FOB Ningbo China | |||
Accessories |
