refrigerated bulk milk tank direct expansion horizontal oval type 1T ~ 15T
keywords: direct expansion milk cooling tank, horizontal milk cooler, 3T 4T 5T fresh milk cooling tank, 6T 8T 10T milk cooling tank manufacture.2T refrigerated bulk milk tank price, 1T direction expansion milk cooling tank | |

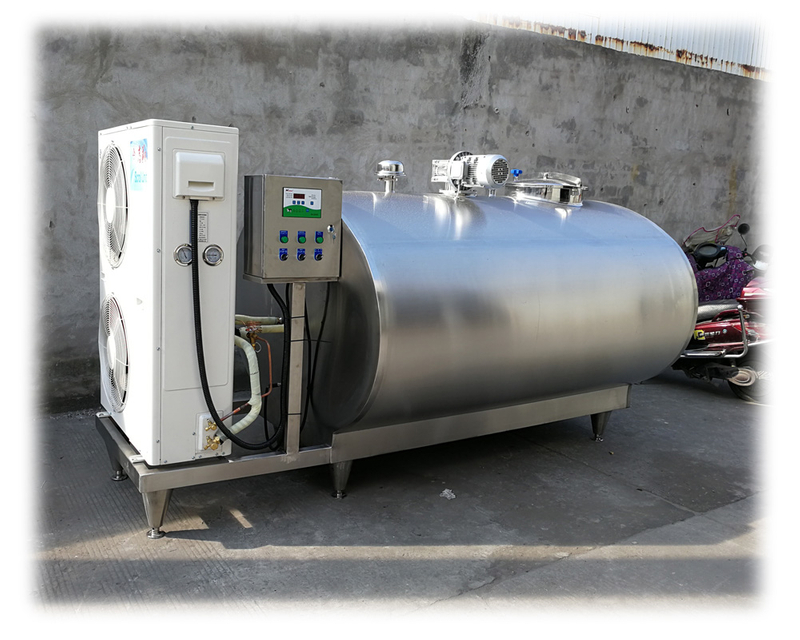

1~15T direct expansion milk cooling tanks are milk tanks for faster cooling of fresh milk and many dairy products. Made of SS304, being durable in quality, superior in performance, our direction expansion type milk cooling tanks are available in the capacity of 1000 Liter to 15,000 Liter with various configuration to meet various requirements from all over the world. This page minly introduce our direct expansion type horizontal oval milk cooler with 1T~15T capacity. It is mainly used on farm and dairy plant. | |

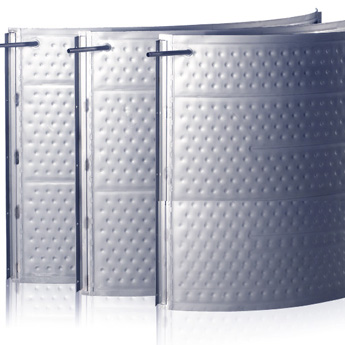

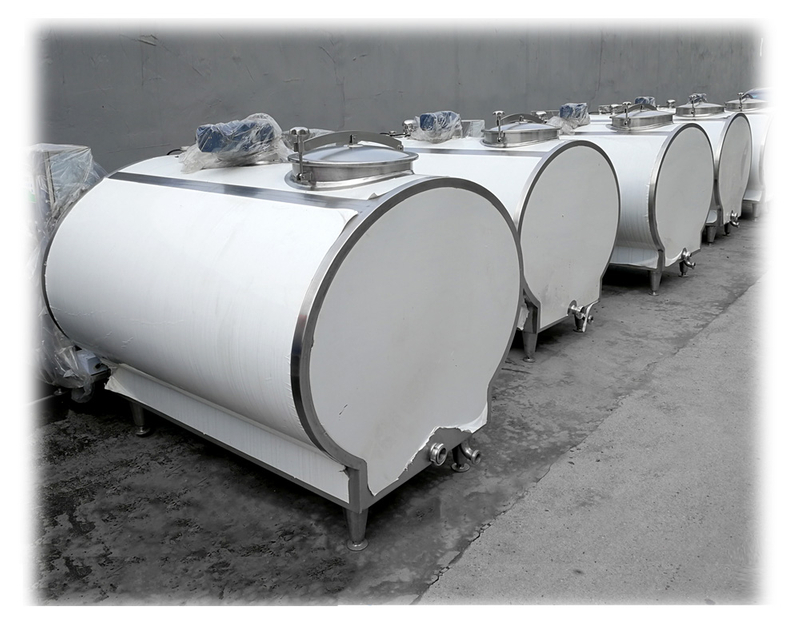

Cooling tank body (horizontal oval shape) The pillowplate outside the inner vessel ensured a direct expansion and rapid cooling. Sanitary manhole cover(s) which overlap the opening(s) on top of the milk cooling tank allowed easy routine inspection and maintenance. High quality CFC free polyurethane isolation will be injected between the inner vessel and the outer casing for the purpose of maximal efficiency and energy saving. |

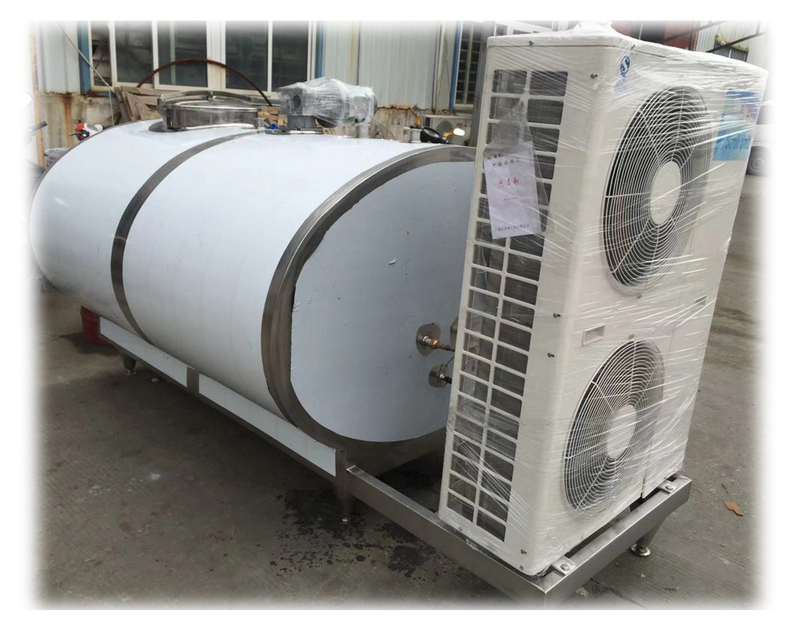

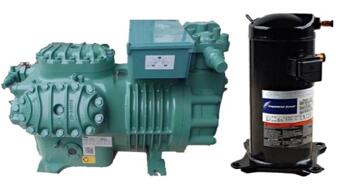

Refrigeration unit
|

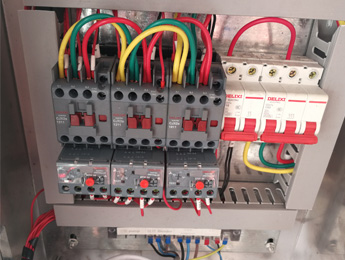

Temperature conmtroller & voltage Power supply for our horizontal direction expansion milk cooler can be 220V 50 Hz single phase, 380V/ 400V / 415V 50 Hz three phase or 220V 60Hz 3phase. Temperature control system consists of controller with temperature digital indicator and integrated electronic thermostat with program for interval mixing of milk for purpose of keeping same milkfat. |
Milk Cooling Tank Details

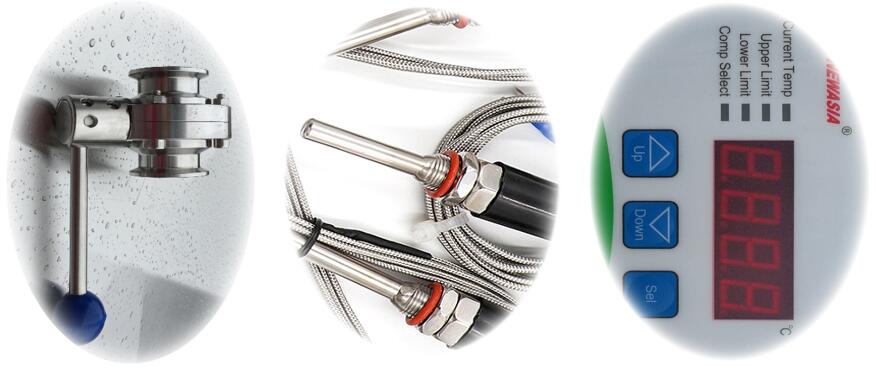

Drainage valve | Temperature sensor | English edition Temp. controller |
Main Specification and Prices
Model | MCT-1TH | MCT-2TH | MCT-3TH | MCT-5TH | Remark | |
milk cooling tank price | ||||||
Capacity | 1000 Liter | 2000 Liter | 3000 Liter | 5000L | ||
Material | SS304 | SS304 | SS304 | SS304 | ||
Structure | horizontal, oval | horizontal, oval | horizontal, oval | horizontal, oval | ||
Weight by estimate | 300 kg | 390 kg | 450 kg | 580 kg | by estimate | |
Thickness mm | Inner wall | 2 | 2 | 2 | 2.5 | |
Pillowplate | 0.9 | 0.9 | 0.9 | 0.9 | ||
Outer casing | 1.2 | 1.2 | 1.2 | 1.2 | ||
Agitators | Qty | 1 | 1 | 1 | 1 | customized |
Power kw | 0.55 | 0.75 | 1.1 | 1.1 | ||
Voltage | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | customized | |
Speed rpm | 25 | 25 | 25 | 25 | ||
Type | Propeller | Propeller | Propeller | Propeller | ||
Insulation | Material | PU foam | PU foam | PU foam | PU foam | |
Thickness | 2” | 2” | 2” | 2” | ||
Density | 40 kg/m3 | 40 kg/m3 | 40 kg/m3 | 40 kg/m3 | ||
Compressor | Brand | Copeland | Copeland | Copeland | Copeland | |
Size | 3HP | 5HP | 6HP | 6HP | ||
Qty | 1 | 1 | 1 | 2 | ||
Type | Air cooled | Air cooled | Air cooled | Air cooled | ||
Type of refrigerant fluid | R404 | R404 | R404 | R404 | ||
Packing size estimated | 230*140*18cm | 320*180*170cm | 380*180*180cm | 390*200*210cm | by estimate |
About information is subject to change without prior notice.
Please contact our sales team to get the latest specification.
