3T/H sanitary lobe pump rotary lobe pump

Sanitary Lobe pump
2.2kw, 3000L/H, inlet and outlet φ38
contact part SS304 / SS316
Model:
Material:
Flow rate:
Availability:
Quantity:

Rotary lobe pump description

Rotary lobe pumps are widely used in a variety of industries including, pulp and paper, chemical, food, beverage, pharmaceutical, and biotechnology due to its ultra-low shear feeding.

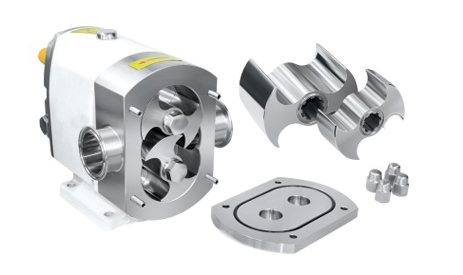

lobe pump

sanitary lobe pump are self-priming, valveless, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 150,000CP.



The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the rotary lobe pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.

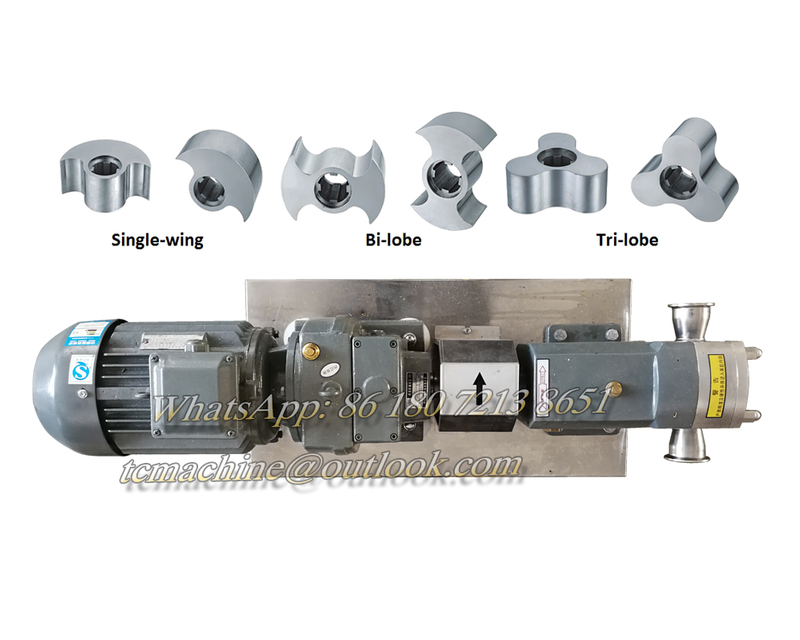

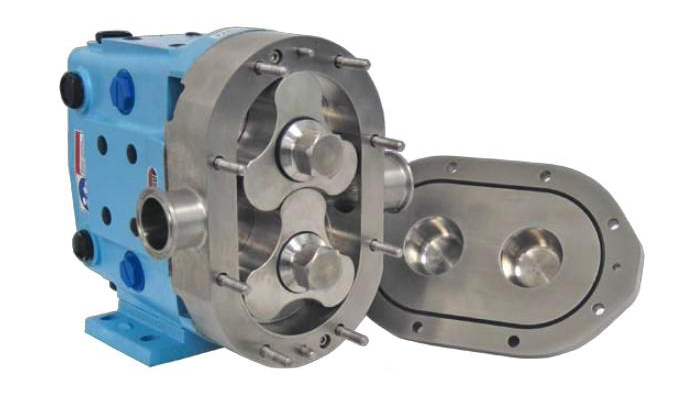

tri-lobe for lobe pump

Tri lobe

Name: tri-lobe

Material: stainless steel 304 / 316L

Tri-lobe are fixed between the front coverand the pump housing. All the lobes that we offered are made of SS304 and SS316L based on user's reqeust. All the lobes are sanitary polished and corrosion resistance. tri-lobe is the most commen lobes in rotary lobe pump of both low viscosity and high viscosity fluid

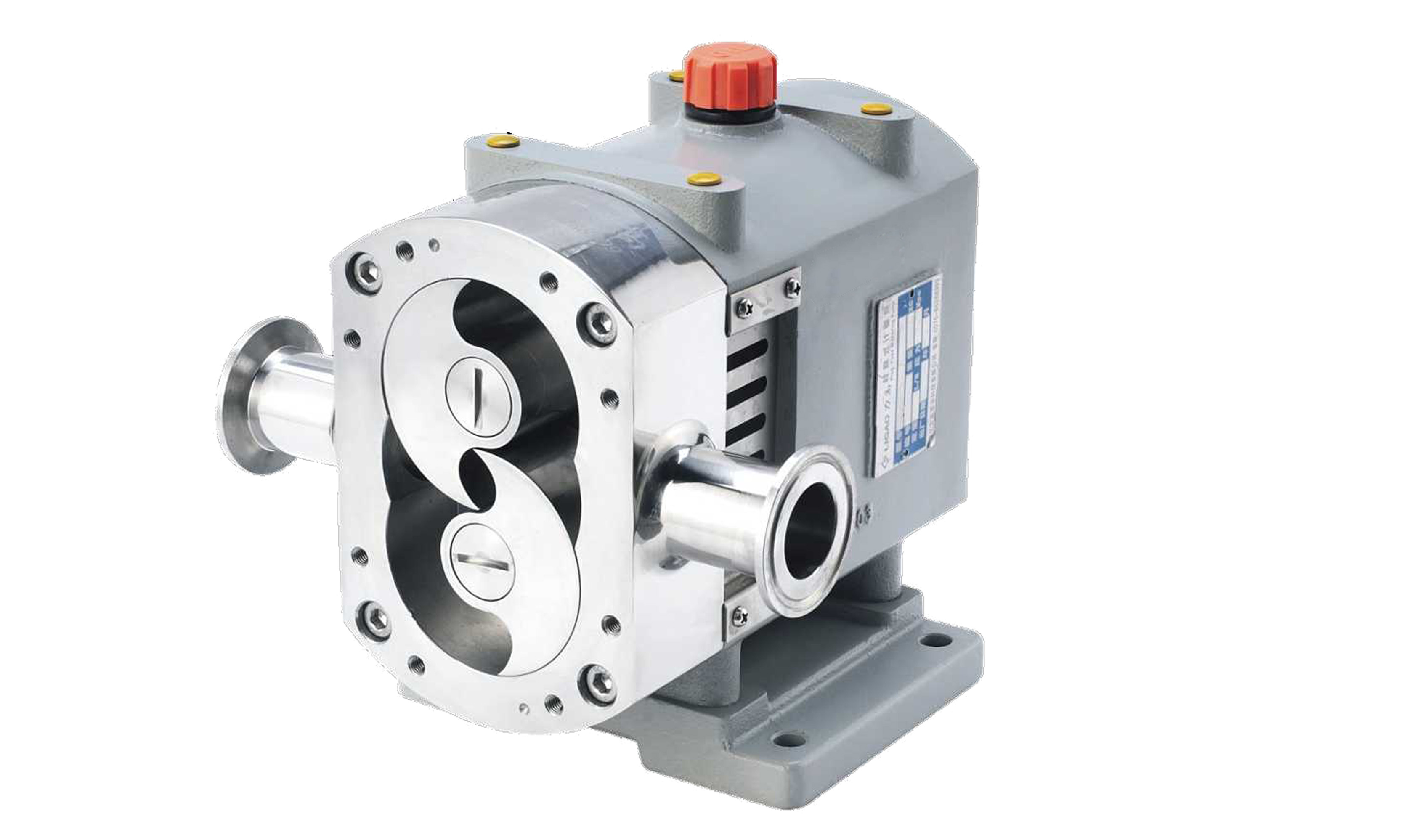

single wing lobe

Single wing lobe


Name:
single lobe
Material:  stainless steel 304 / 316L

Single lobes are used to the rotary pumps for thick fluid such as yogurt with fruit berry. The Single lobe allowing lobe pump to handle solids such as cherries or olives without damage. They are also used to handle slurries, pastes, and a wide variety of other liquids

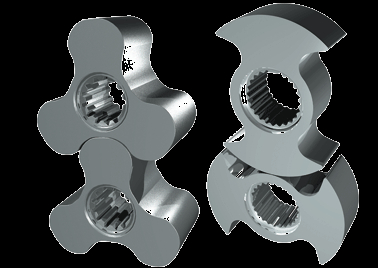

be-wing lobe

Bi-wing lobe


Name: bi-wing lobe
Material: SS304 / SS316L

bi-wing lobes are used for the transfer of suspension liquid with particles or fruit pulps. this special designed lobe will protect the pulp and particles in the processing fluid from damage. if the particle or pulp content is high, single lobe maybe a better choice

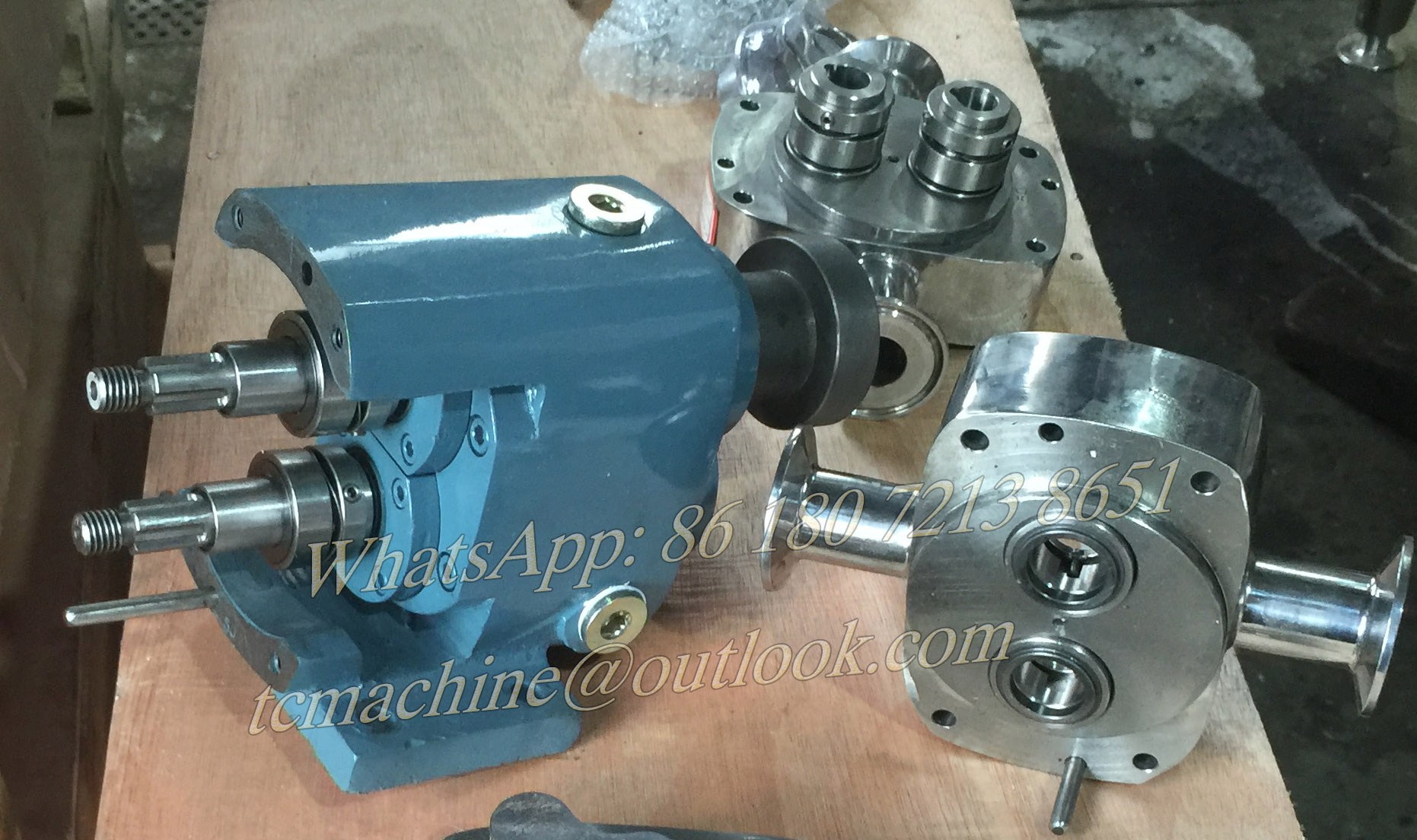

lobe pump parts - mechnical sealMechanical seal


Name: mechanical seal
Material: SS304

Quantity: 2 Nos
all the lobe pumps that we offered are we are going to offer are comes with machnical seal which are made of stainless steel


Main specification of our lobe pumps model Z-12

Model


Z-12(20)

Z-12

Suitable   for


100 degree ketch up

100 degree ketch up

Material


SUS304

SUS304

Discharge capacity

/ 100rpm


20L

12L

Suggest speed range


280pm

200-500rpm

Flow rate


1300-3200L/H

1300-3200L/H

Motor power


2.2KW

2.2KW

Heating jacket


optional

optional

Seal type


Seal with cooling

Seal with cooling

Thermal insulation


By hot water

By hot water

Insulation position


On pump head

On pump head

Connection type


Clamp

Clamp

Connection size


Φ25×1.5

Φ25×1.5

Detail size

L


850mm

850mm

W / W1


190mm / 280mm

190mm / 280mm

H / H1


400mm / 170mm

400mm / 170mm

FOB price
