Refrigerated bulk milk tank 300L 500L 1000L
keywords: milk cooling tank, bulk milk cooler, fresh milk cooling storage tank, milk cooling tank manufacture. Refrigerated bulk milk tank price, direction expansion milk cooling tank | |

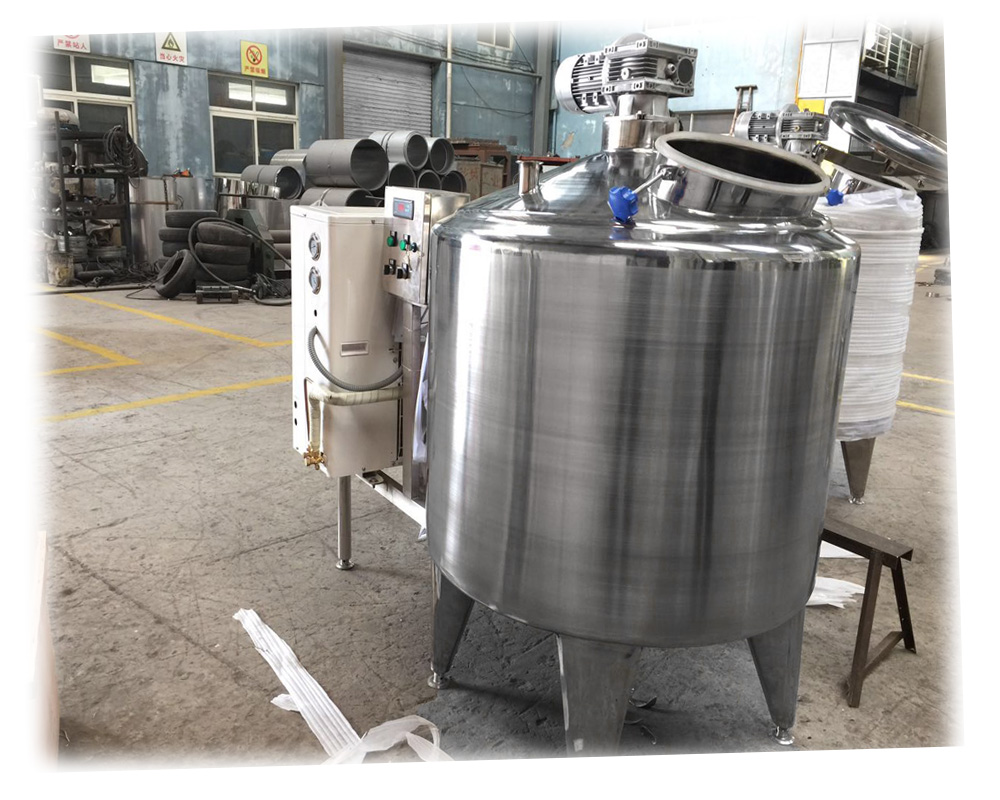

Refrigerated bulk milk tanks are milk tanks for faster cooling of fresh milk and many dairy products. Made of SS304, being durable in quality, superior in performance, our small scale milk coolers are available in the capacity of 100L to 1,000L with various configuration. We do have bigger capacity vertical type, horizontal oval type and open type (U shape) ones to meet various requirements from all over the world. This page minly introduce our vertical milk cooler with 100~1000Liter capacity. It is mainly used on farm and small dairy plant. | |
Cooling tank body The pillowplate outside the inner vessel ensured a direct expansion and rapid cooling. Manhole cover or hinged cover(s) which overlap the opening(s) on top of the vertical milk cooling tank allowed easy routine inspection and maintenance. High quality CFC free polyurethane isolation will be injected between the inner vessel and the outer casing for the purpose of maximal efficiency and energy saving. |
 Refrigeration unit
|
 Temperature conmtroller & voltage Power supply for our milk cooler can be 220V 50 Hz single phase, 380V/ 400V / 415V 50 Hz three phase or 220V 60Hz 3phase. Temperature control system consists of controller with temperature digital indicator and integrated electronic thermostat with program for interval mixing of milk for purpose of keeping same milkfat. |
 | ||||
| Drainage valve | Temperature sensor | English edition Temp. controller | ||
Main Specification and prices
Model | MCT-0.2TV | MCT-0.3TV | MCT-0.5TV | MCT-1TV | Remark | |
milk cooling tank price | ||||||
Capacity | 200L | 300L | 500L | 1000L | ||
Material | SS304 | SS304 | SS304 | SS304 | ||
Structure | vertical, with hinged cover | vertical, with hinged cover | vertical, sealed top with manway | Vertical, sealed top with manway | ||
Weight by estimate | 190 kg | 260 kg | 320 kg | 380 kg | ||
Thickness mm | Inner wall | 2 | 2 | 2 | 2 | |
Pillowplate | 0.9 | 0.9 | 0.9 | 0.9 | ||
Outer casing | 1.2 | 1.2 | 1.2 | 1.2 | ||
Agitators | Qty | 1 | 1 | 1 | 1 | |
Power kw | 0.55 | 0.55 | 0.55 | 0.55 | ||
Voltage | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P | customized | |
Speed rpm | 25 | 25 | 25 | 25 | ||
Type | Propeller | Propeller | Propeller | Propeller | ||
Insulation | Material | PU foam | PU foam | PU foam | PU foam | |
Thickness | 2” | 2” | 2” | 2” | ||
Density | 40 kg/m3 | 40 kg/m3 | 40 kg/m3 | 40 kg/m3 | ||
Compressor | Brand | Copeland | Copeland | Copeland | Copeland | |
Size | 2HP | 3HP | 3HP | 3HP | ||
Qty | 1 | 1 | 1 | 1 | ||
Type | Air cooled | Air cooled | Air cooled | Air cooled | ||
Type of refrigerant fluid | R404 | R404 | R404 | R404 | ||
Packing size estimated | 1600*90*140cm | 160*90*140cm | 190*100*190cm | 230*100*190cm | ||
