Open Top Milk Cooler

direct expansion type milk cooler with open top
U shaped milk storage tank with high quality refrigeration unit
capacity 100~3000Liter

Capacity:	500Liter / 0.5T 1000Liter / 1T 1500L / 1.5T 2000L / 2.5T 3000Liter / 3T
Optional device:	milk reception tank milk pump
Availability:

Quantity:



Inquire Add to Basket

Product Description

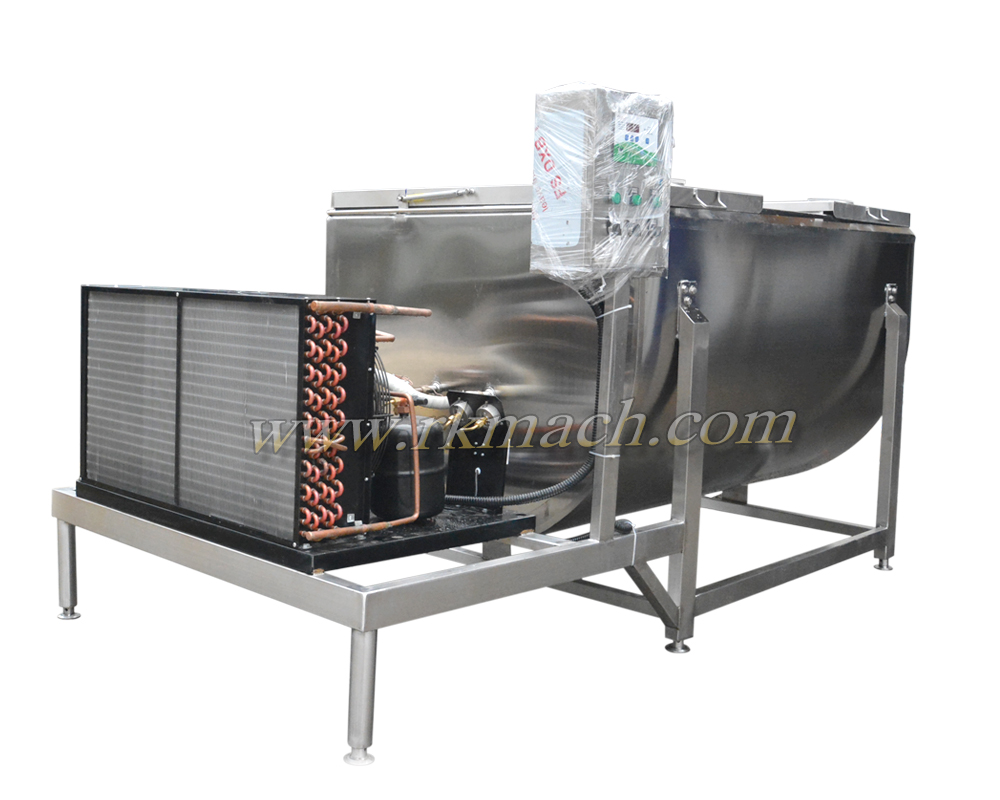

Open top milk cooler Open Type Milk Cooler

Open milk coolers are horizontal U shape milk cooling tanks for faster cooling of fresh milk and many dairy products. The U shape semi-cylindrical tank design offers a perfect radius for easy cleaning.

keywords: oepn top milkl cooler, open top milk cooling tank, U shape milk cooler, U shaped milk cooler, U shaped milk cooling tank, direct expansion milk cooling tank price

Main Specification and prices

Model		MCT-U1.5T	MCT-U2.5T	MCT-U3T
Unit price
Capacity		1500L	2500L	2000L
Material		SS304	SS304	SS304
Structure		Open type	Open type	Open type
Weight by estimate		400 kg	520 kg	520 kg
Thickness mm	Inner wall	2	2.5	2.5
	Pillowplate	0.9	0.9	0.9
	Outer casing	1.2	1.5	1.5
Agitators	Qty	1	1	1
	Power kw	0.75	0.75	0.75
	Voltage	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P
	Speed rpm	25	25	25
	Type	Propeller	Propeller	Propeller
Insulation	Material	PU foam	PU foam	PU foam
	Thickness	2”	2”	2”
	Density	40 kg/m3	40 kg/m3	40 kg/m3
Compressor	Brand	Copeland	Copeland	Copeland
	Size	3HP	5HP	6HP
	Qty	1	1	1
	Type	Air cooled	Air cooled	Air cooled
Type of refrigerant fluid		R404	R404	R404
Packing size estimated
