ILM-4-5.5
1
5000L/H
2m
water cooling
1
Multi stage online shear mxier with castor
Here is a picture of our single stage online mixer / inline mixer with castor.
Multi-stage Sanitary online continuous Mixer/Emulsifier is designed as high speed, high shear mixer and emulsifier for emulsion processing. Constructed of SS304 / SS316L, Inline shear mixer is mainly composed of internal rotor-stator, housing, shafting, motor and base. Water cooling unit, powder hopper, circulation pipeline and trolley are optional.
The unique designed rotor-stator assembly provide optimal throughout and flow. In addition, the shear rates generated ensure droplet and particles size reduction down to 5μm with excellent distribution.
Application
Single Stage movable online mixers are mainly used in the aseptic process in dairy, beverage, pet food, flavor emulsions such as ketchup, salad dressing, mayonnaise, daily chemical such as facial cream, lotion and pharmaceutical processing.
for power and water mixing, the hopper and circulation pipeline on our single stage movable online mixer have very good mixing and shearing effect.
Multi stage online shear mxier with castor
Here is a picture of our single stage online mixer / inline mixer with castor.
Multi-stage Sanitary online continuous Mixer/Emulsifier is designed as high speed, high shear mixer and emulsifier for emulsion processing. Constructed of SS304 / SS316L, Inline shear mixer is mainly composed of internal rotor-stator, housing, shafting, motor and base. Water cooling unit, powder hopper, circulation pipeline and trolley are optional.
The unique designed rotor-stator assembly provide optimal throughout and flow. In addition, the shear rates generated ensure droplet and particles size reduction down to 5μm with excellent distribution.
Application
Single Stage movable online mixers are mainly used in the aseptic process in dairy, beverage, pet food, flavor emulsions such as ketchup, salad dressing, mayonnaise, daily chemical such as facial cream, lotion and pharmaceutical processing.
for power and water mixing, the hopper and circulation pipeline on our single stage movable online mixer have very good mixing and shearing effect.

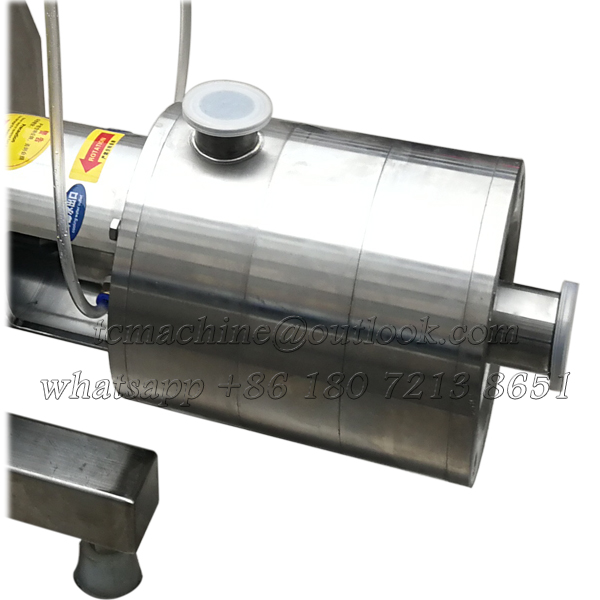

3 stage emulsifying pump head | Rotot-stator |
why choose a 3 stage inline shear mixer? |
In order to make smaller droplets, higher shear is generally required. High shear rotor-stator mixers are commonly used.
These operate by pumping the emulsion phases through the narrow gap between a perforated cylinder (the stator) and the blades of a rapidly rotating stirrer housed inside it (the rotor) where the forces are sufficient to make droplets as small as around 1 μm.
Stainless steel hopper a stainless steel hopper with about 10 to 15 liter capacity is widely used on movable and unmovable inline mixers. Powder and liquid will be "sucked" into the inline mixer together with water during the working process of the continuous high shear mixer. a hopper usually installed on the emulsion inlet port on the inline mixer. A circulation pipe is a better choise together with the hopper. |

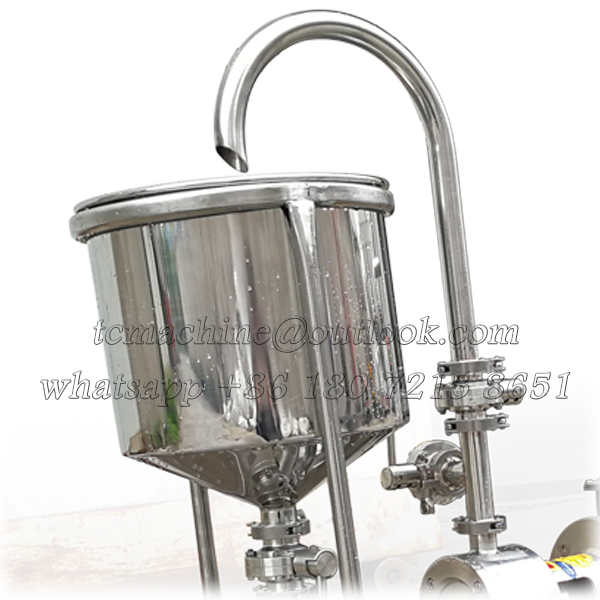

Circulation pipe It is always a good idea to use a circulation pipe together with the stainless steel hopper for on inline mixer. Circulation pipe usually installed on the emulsion outlet port with clamp fittings and valves. Emlsuion goes into the pump housing, passes through the rotor-stator head, and get into the hopper though circulation pipe, and flow into the emulsifying pump housing again. Such circulation can be used for powder water mixing and solutions with particles. Its a high effiency accessories wich can readce the working time and minnise the waste during emulsion processing. |

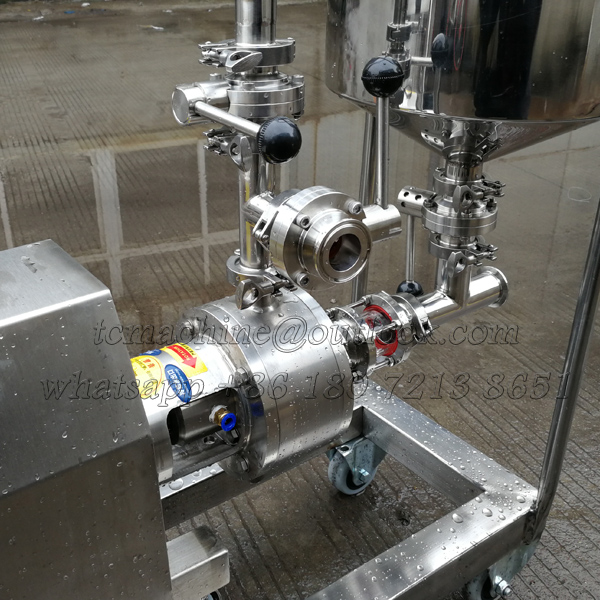

Sight galssa sight glass on a inline mixer will show you the e,ulsifying process directly. It is a good idea to add a sight glass on a in line shear mixer / emulsifying pump especially when theit is used for liquid with powder or solid particles. Usually a sight glass will be installed on the emlsion inlet port of a inline mxier. |
Accessories on inline shear mxier 1. butterfly valve 2. stainless steel Tee 3. gasket and clamp ferrule 4. cooling pump 5. cooling water tank 6. circulation pump 7. drainage valve 8. castors 9. trolley |
3 stage emulsifying pump head | Rotot-stator |
why choose a 3 stage inline shear mixer? |
In order to make smaller droplets, higher shear is generally required. High shear rotor-stator mixers are commonly used.
These operate by pumping the emulsion phases through the narrow gap between a perforated cylinder (the stator) and the blades of a rapidly rotating stirrer housed inside it (the rotor) where the forces are sufficient to make droplets as small as around 1 μm.
Stainless steel hopper a stainless steel hopper with about 10 to 15 liter capacity is widely used on movable and unmovable inline mixers. Powder and liquid will be "sucked" into the inline mixer together with water during the working process of the continuous high shear mixer. a hopper usually installed on the emulsion inlet port on the inline mixer. A circulation pipe is a better choise together with the hopper. |
Circulation pipe It is always a good idea to use a circulation pipe together with the stainless steel hopper for on inline mixer. Circulation pipe usually installed on the emulsion outlet port with clamp fittings and valves. Emlsuion goes into the pump housing, passes through the rotor-stator head, and get into the hopper though circulation pipe, and flow into the emulsifying pump housing again. Such circulation can be used for powder water mixing and solutions with particles. Its a high effiency accessories wich can readce the working time and minnise the waste during emulsion processing. |
Sight galssa sight glass on a inline mixer will show you the e,ulsifying process directly. It is a good idea to add a sight glass on a in line shear mixer / emulsifying pump especially when theit is used for liquid with powder or solid particles. Usually a sight glass will be installed on the emlsion inlet port of a inline mxier. |
Accessories on inline shear mxier 1. butterfly valve 2. stainless steel Tee 3. gasket and clamp ferrule 4. cooling pump 5. cooling water tank 6. circulation pump 7. drainage valve 8. castors 9. trolley |
here below is the specification table of our movable high shear inline mixer / movable emulsion pump. The most hot sell ones are
4kw high shear online mixer with castors,
5.5kw movable in-line shear mixer,
7.5kw high shear emulsifier with castor,
11 kw and 15kw high shear mixer on wheels
with single stage or multiple stage stator rotor assembly
Model | ILM-3-1.5 | ILM-3-2.2 | ILM-3-3 | ILM-3-4 | ILM-3-5.5 | ILM-3-7.5 | ILM-3-11 | ILM-3-15 |
Castors | yes | yes | yes | yes | yes | yes | yes | yes |
Motor power | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Stator-Rotor QTY | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets |
Voltage (3phase AC) | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V |
Rotation speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
Flow rate m³/h | 0~2 | 0~2 | 0~3 | 0~4 | 0~5 | 0~8 | 0~11 | 0~13 |
Wet material | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L |
Inlet size | φ25 | φ38 | φ51 | φ51 | φ51 | φ63 | φ63 | φ76 |
Outlet size | φ25 | φ38 | φ51 | φ51 | φ51 | φ63 | φ63 | φ76 |
Connection | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union |
Overall dimension | 380×300 ×550 | 380×30 0×550 | 420×35 0×650 | 450×36 0×650 | 500×38 0×650 | 500×40 0×700 | 600×45 0×700 | 700×50 0×800 |
Inline shear mxier specification is subject to change without prior notice.
here below is the specification table of our movable high shear inline mixer / movable emulsion pump. The most hot sell ones are
4kw high shear online mixer with castors,
5.5kw movable in-line shear mixer,
7.5kw high shear emulsifier with castor,
11 kw and 15kw high shear mixer on wheels
with single stage or multiple stage stator rotor assembly
Model | ILM-3-1.5 | ILM-3-2.2 | ILM-3-3 | ILM-3-4 | ILM-3-5.5 | ILM-3-7.5 | ILM-3-11 | ILM-3-15 |
Castors | yes | yes | yes | yes | yes | yes | yes | yes |
Motor power | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Stator-Rotor QTY | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets | 1~3 sets |
Voltage (3phase AC) | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V | 110V 220V 380V 415V |
Rotation speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
Flow rate m³/h | 0~2 | 0~2 | 0~3 | 0~4 | 0~5 | 0~8 | 0~11 | 0~13 |
Wet material | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L | SS304/316L |
Inlet size | φ25 | φ38 | φ51 | φ51 | φ51 | φ63 | φ63 | φ76 |
Outlet size | φ25 | φ38 | φ51 | φ51 | φ51 | φ63 | φ63 | φ76 |
Connection | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union | clamp(STD) flange thread union |
Overall dimension | 380×300 ×550 | 380×30 0×550 | 420×35 0×650 | 450×36 0×650 | 500×38 0×650 | 500×40 0×700 | 600×45 0×700 | 700×50 0×800 |
Inline shear mxier specification is subject to change without prior notice.
Some optional configerations are avaliable for on line shear mxier.
Motor power | Voltage | Material | Trolley | Cooling unit | Hopper | Circulation pipe | Sight glass | ||
380V | 220V | SS304 | SS316L | ||||||
1.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
2.2kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
3kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
4kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
5.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
7.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
11kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
15kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
... |
Some optional configerations are avaliable for on line shear mxier.
Motor power | Voltage | Material | Trolley | Cooling unit | Hopper | Circulation pipe | Sight glass | ||
380V | 220V | SS304 | SS316L | ||||||
1.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
2.2kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
3kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
4kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
5.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
7.5kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
11kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
15kw | √ | √ | √ | √ | √ | √ | √ | √ | √ |
... |
