Air Operated Pumps - Drum, Barrel, and Pail Pumps

Pneumatic driven
max viscosity 120,000cps / 25 degree c
flow rate 1.2T/H, 3.2T/H, 5.0T/H
used to transfer a vast array of viscous fluid such as, fruit juice, tomato paste, paint, ice cream and many more.

Model:
Quantity:
  • 0~120,000cps
  • SS304
  • 0~10bar
  • 0~100m

Air Operated Dispensing Pumps Pneumatic Pumps

Drum pumps are used in barrels and drums. Air-operated barrel pumps from Ranking Machinery can help to transfer and dispense a wide range of viscous fluids such as paint, chocolate, pastry, diesel fuel, motor oil, corrosive chemicals, flammable liquids, antifreeze, mild solvents, water-based fluids and varnishes, etc from 55-gallon drums

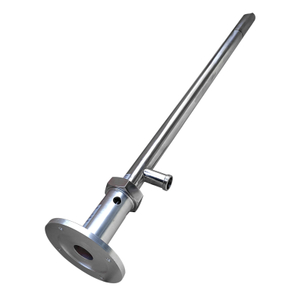

 pneumatic barrel pump piston pump

Adopt corrosion-resistant stainless steel, air operated barrel pumps from Ranking Team have high proformance and long working life. Shop Ranking Machinery first when you need air-operated barrel pumps to help dispense industrial fluids.

Pneumatic barrel pump


Pneumatic barrel pumps main specification

air-operated barrel pump main parts

No.

Model

P1.2T-1
  for open barrel

P1.2T-2
  for sealed barrel

P3.2T-1
  for open barrel

P3.2T-2
  for sealed barrel

1

Dimension

φ100×H1450mm

φ100×H140   mm

φ120×H1600   mm

φ120×H1500   mm

2

Weight

16kg

16 kg

23 kg

23 kg

3

Flow rate

10-20L/min

10-30L/min

20-70L/min

15-50L/min

4

Max particle size allowed

φ1.2 mm

φ1.2 mm

φ3 mm

φ1.2 mm

5

Lift Head

0~100m

0~100m

0~100m

0~100m

6

Viscosity

120,000cps/25

120,000cps/25

120,000cps/25

120,000cps/25

7

Inlet / outlet

60 mm 32 mm

57 mm 32   mm

72 mm 38   mm

57 mm 32   mm

8

Discharge pipe

1 1/4”

1 1/4”

1 1/2”

1 1/2”

9

Air supply port

3/8”

3/8”

3/8”

3/8”

10

Required air pressure

0.3-1.0MPa/min

0.3-1.0MPa/min

0.3-1.0MPa/min

0.3-1.0MPa/min

11

Discharge pressure

3-10MPa

3-10MPa

3-10MPa

3-10MPa

12

Air consumption

0.3-1.0M²/min

0.3-1.0 M²/min

0.3-1.0 M²/min

0.3-1.0 M²/min
