1.1kw 50,000cps 15gpm portable barrel pump

HPHV series drum pump
high viscosity, high lift
continuous duty application
screw type portable barrel pump

Model:
Tube length:
Gasket:
Connection:
Motor holder:
Quantity:
  • 25,000cps~100,000cps
  • 900rpm
  • 6
  • 2
  • 38lpm / 60lpm
  • 5
Main features

25,000cps~10,000cps High viscosity liquid usd barrel pump, electric operated portable drum puump, screw type barrel pump,

  • Max 100,000cps at 25 degree c

  • 36LPM & 60Liter per mintues flow rate

  • with screw type rotor and stator

  • pump tube made by 316L stainless steel

  • Electric operated

optional

  • FDA-Compliant materials with tri-clamp connection

  • clamp fittings

  • hose barb

  • customized hanger bracket

Product Description

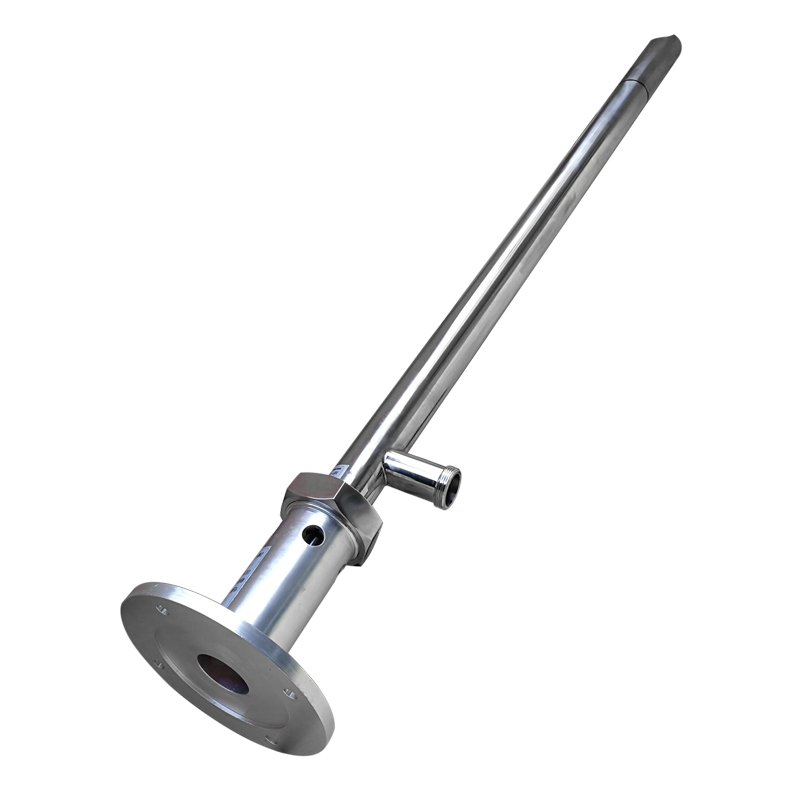

This portable barrel / drum pump is a hygienic vertical progressive cavity pumps. It is specially designed to transfer high viscosity liquid from tanks and barrels by means of a stainless steel tube placed into the drum.

HP-0.55KW-25KV
Packaging & Shipping

Packing of this barrel pump usually to be paper carton or wooden case according to the shipping method.

usually pumps send by air (TNT, DHL, UPS, FEDEX) will use only oaoer carton to sace the air freight.

but better to use wooden case in order to avoid any damage durign the way.

we do not charge any cost for the wooden case of our drum pumps, but the total weight will increase a lot after packed in wooden case. thus, the air freight will increase accordinly. buyer will need to pay for extra air freight in they choose wooden case for their barrel pump.

Specification
No. Items  Specification
1 Model HP-0.55KW-25KV HP-0.55KW-50KV HP-0.75KW-35KV HP-0.75KW-70KV HP-1.1KW-50KV HP-1.1KW-100KV
2 Viscosity  25,000cps 50,000cps 35,000cps 70,000cps 50,000cps 100,000cps
3 Flow rate 60L/min 38L/min 60L/min 38L/min 60L/min 38L/min
4 Output pressure 6 bar 6 bar 6 bar 6 bar 6 bar 6 bar
5 Motor type electric driven electric driven electric driven electric driven electric driven electric driven
6 Power supply 110V~415V customized 110V~415V customized 110V~415V customized 110V~415V customized 110V~415V customized 110V~415V customized
7 Motor power 550W 550W 750W 750W 1100W 1100W
8 Potation speed 900 rpm 900 rpm 900 rpm 900 rpm 900 rpm 900 rpm
9 Pump tube

1m

1m

1m

1m

1m

1m

10 Pump tube size φ51 φ51 φ51 φ51 φ51 φ51
11 Pump tube material Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L
12 Outlet tube φ25 with hose barb φ25 with hose barb φ25 with hose barb φ25 with hose barb φ25 with hose barb φ25 with hose barb
13 Rotor Material Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L
14 Rotor seal material NBR / KFM / PTFE  NBR / KFM / PTFE  NBR / KFM / PTFE  NBR / KFM / PTFE  NBR / KFM / PTFE  NBR / KFM / PTFE
15 Working mode Continuous working Continuous working Continuous working Continuous working Continuous working Continuous working


Application



Pumping is characterised by a gentle transfer of media with shear sensitive particles. Some of the most important applications of this pump type is transferring of fruit concentrates for the beverage production, tomato concentrate for the ketchup production, transferring of creams, honey, oils, resins, solvents, adhesives, polymers, gear lube, glycerin and other high viscosity liquid.



50,000cps 15 gallon per minutes flow rate portable barrel pump

continuous working, HP-1100W+500HV-1000 (HP-1.1kw-50KV-1m)
