| Model: | |
|---|---|
| Tube material: | |
| Tube length: | |
| Quantity: | |
HP-A1,A2
300cps
7000~15000rpm
SS304, SS316, PVDF, PPHT
7~15bar
60~90LPM
7~15m
HP-A1 and HP-A2 model barrel pumps are pneumatic drive type drum pump.

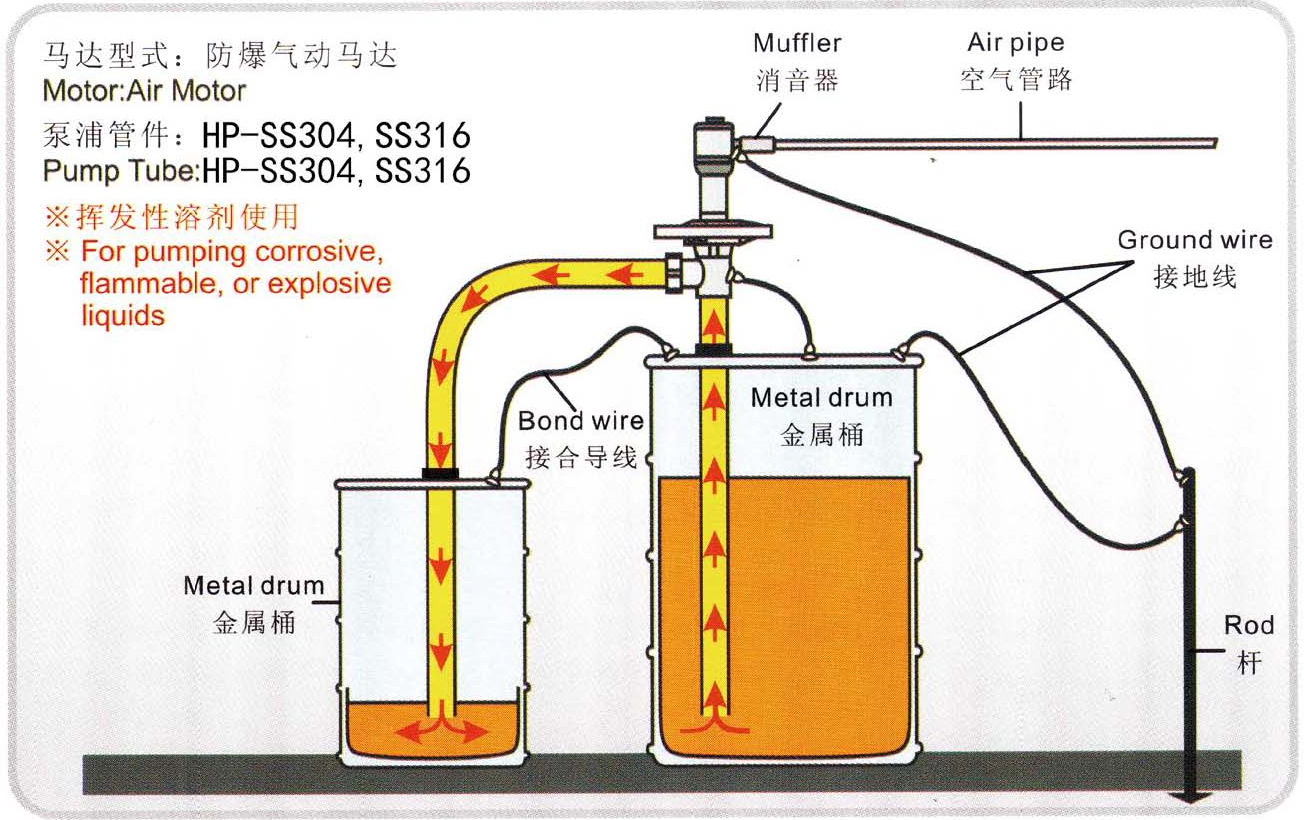

Designed for Flammable and Explosive Liquids such as ethanol, acetone and Toluene etc.
Max 300cps, 60L/min & 90L/min avalaible
Tube material to be stainless steel, PVDF, PPHT
No. | Model | HP-A1 | HP-A2 |
1 | Dimension | ||
2 | Weight | 8kg | 9kg |
3 | Flow rate | 60L/min | 60L/min |
4 | Max particle size allowed | Φ1 mm (soft) | Φ1 mm (soft) |
5 | Lift Head | 7m | 15m |
6 | Power | 370W | 640W |
7 | Rotation speed | 7000rpm | 15000rpm |
8 | Viscosity | ≤300cps/25℃ | ≤300cps/25℃ |

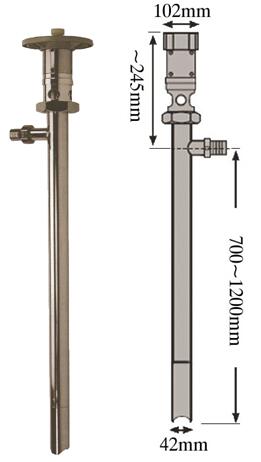

9 | Tube diameter | 42mm | 42mm |
10 | Tube material | SS304 / SS316L / PVDF / PPHT | SS304 / SS316L / PVDF / PPHT |
11 | Tube length | 0.7m, 1m, 1.2m, 1.5m | 0.7m, 1m, 1.2m, 1.5m |
12 | transmission shaft | SS316 | SS316 |
13 | Discharge pipe | 25mm | 25mm |
14 | Air supply port | 3/8” | 3/8” |
15 | Required air pressure | 0.3~1 MPA | 0.3~1 MPA |
16 | Discharge pressure | MAX 0.7Mpa | MAX 0.7Mpa |
17 | Air consumption | 0.3-1.0M3/min | 0.3-1.0M3/min |
18 | Specific weight | ≤1.3 | ≤1.3 |
HP-A1 and HP-A2 model barrel pumps are pneumatic drive type drum pump.
Designed for Flammable and Explosive Liquids such as ethanol, acetone and Toluene etc.
Max 300cps, 60L/min & 90L/min avalaible
Tube material to be stainless steel, PVDF, PPHT
