| Model: | |
|---|---|
| Tube lengh: | |
| Shaft material: | |
| Quantity: | |
HP-EX2
800~1000cps
0~1000rpm
3
1
10~22bar
130lpm /80lmp
10m / 22m
2

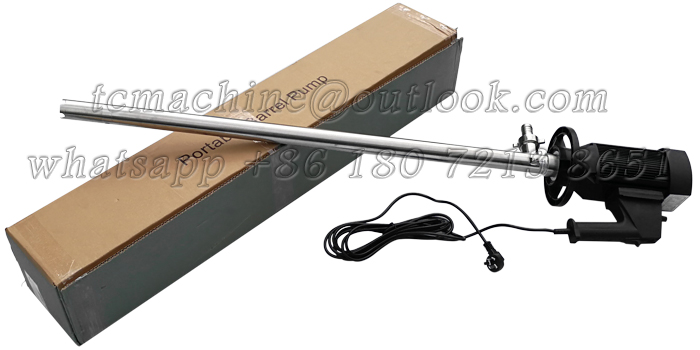

 HP-EX2 for 800cps ~1000cps flamble liquid HPEX2 series barrel pumps are designed to transfer a variety of materials from 55 gallon drums and tanks. The pump tube which is made stainless steel will be placed into the drum or barrel verticallyduring the working process. HP-EX2 have 80L/min and 130L/min flow rate, for liquid gravity less then 1.8. HP-EX2 series barrel pump suitable for Strong acid strong base and organic solvent. |

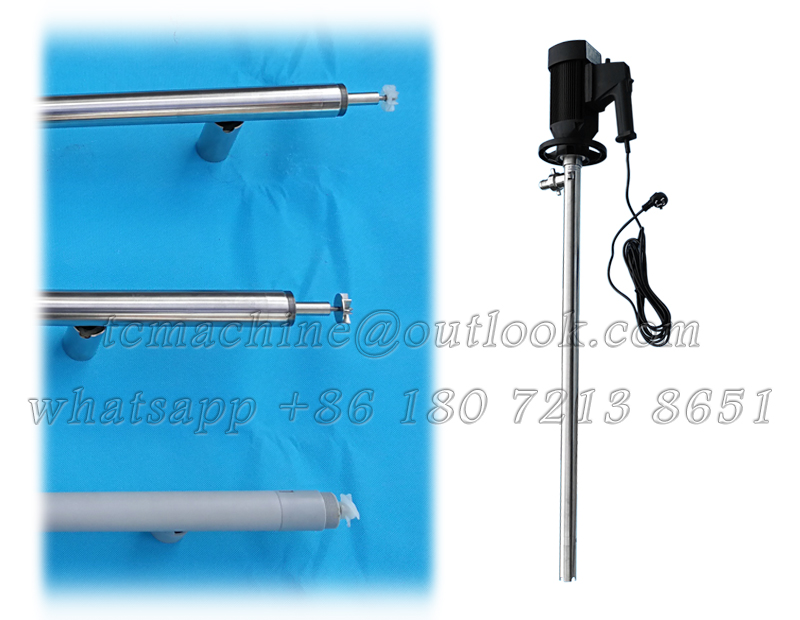

 Propeller HP-EX2 series barrel pump is designed for low viscosity liquid. Different like our HP-EX2-V series barrel pumps(for high viscosity liquid), HP-EX2 series barrel pumps are ideal for 800cps and 1000cps liquid. The propellers will vary depending on the pumping tube. |

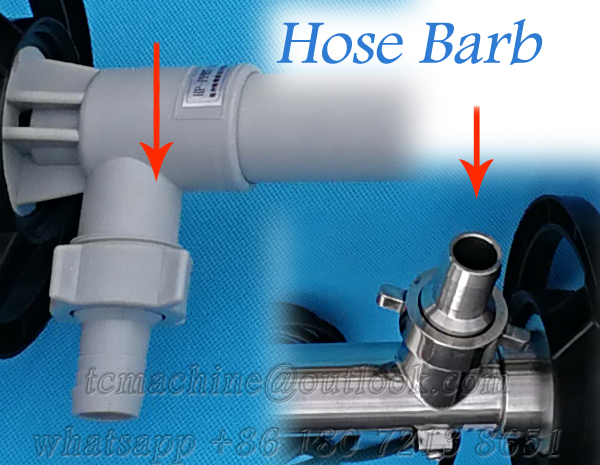

 Hose barb Hose barb for HP-EX2 series pump the left picture is the standard hose barb and PPHT hose barb. on PVDF pumping tube, the hose barb will be PVDF material. |
Specification
No. | Items | Description & specification | |
1 | Model | HP-EX2-SS304 / SS316 / PPHT / PVDF | HP-EX2-SS304 / SS316 / PPHT / PVDF |
2 | Max viscosity | 1000cps | 800cps |
3 | Flow rate | 80L/min | 130L/min |
4 | Output pressure | 10 bar | 22 bar |
5 | Motor type | electric driven | electric driven |
6 | Power supply | 220V 50Hz / 60Hz | 220V 50Hz / 60Hz |
7 | Motor power | 825W | 825W |
8 | Potation speed | 0~10,000 rpm adjustaboe speed | 0~10,000 rpm adjustaboe speed |
9 | Pump tube | 0.7m / 1m / 1.2m / 1.5m | 0.7m / 1m / 1.2m / 1.5m |
10 | Pump tube size | φ42 | φ42 |
11 | Pump tube material | Stainless steel 316L / SS304 / PPHT / PVDF | Stainless steel 316L / SS304 / PPHT / PVDF |
12 | Outlet tube | φ25 with hose barb | φ25 with hose barb |
13 | Propeller Material | Stainless steel 316L / Hastelloy | Stainless steel 316L / Hastelloy |
| 14 | Lift head | 22m | 10m |
| 15 | Gravity | < 1.8 | < 1.8 |
 mirror polish pump tube
|  handwhlle and coupling |  Customized clamp type hose barb |
HP-EX1-V series and HP-EX2-V series barrel pumps offered by Ranking Machinery have the same structure. the only difference is : 110V motor for HP-EX1-V and 220V motor for HP-EX2-V series drum pump.
