ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L
Share to:

ISO Sanitary Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L

Stainless steel ferrule
SS304 /SS316L ISO 1127
Material:
SS304 SS316L
Standard:
ISO1127 DN20~DN200
Quantity:
Inquire Add to Basket

FERRULES FOR FOOD, DAIRY, AND BEVERAGE

Sanitary ferrules fittings made by stainless steel 304, 316L, ISO DIN SMS 3A standard from size 1/2″ to 10″

sanitary ferrules are precision-machined in CNC, sanitary ferrule fittings are conform to ISO, DIN, SMS and 3A standard





ISO1127 standard tri-clamp lasferrule

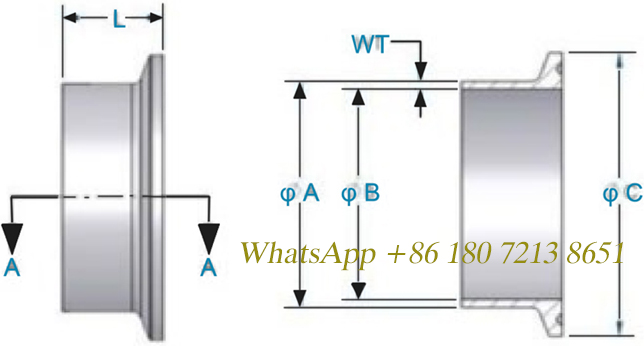

ISO DN25

Size
A
B
C
WT
L
inch
mm
mm
mm
mm
A
     mark
mark 2
DN25
 33.7

29.7

 50.5 2 21.5

DN32
 42.4 38.4 50.5 2 21.5

DN40
 48.3 44.3 64 2 21.5

DN50
 60.3 56.3 77.5 2 21.5

DN65
 76.1 72.1 91 2 21.5

DN80
 88.9 84.9 106 2 21.5

DN100 114.3 110.3 130 2 28

DN200 219.1 213.9 233.5 2.6 28

DN250






DN300














...






the ISO standard ferrule can be stainless steel 304 material and SS316L material under reequest.


weld ferrule tri-clover clamp welded-on clamp ferrule sanitary ferrule ISO ferrule DIN ferrule 3A ferrule stainless steel pipe and fittings sanitary pipe and fittings
