3A Stainless Steel Weld Ferrule Tri Clamp Flange SUS304 SS316L

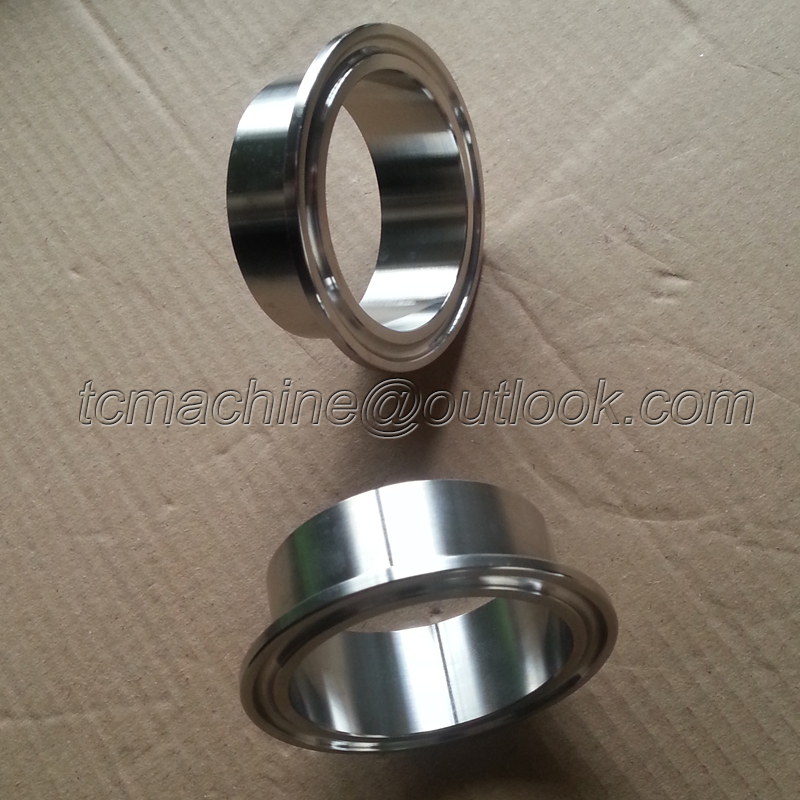

Stainless steel ferrule
standard SMS, 3A, DIN
SS304 /SS316L
Material:
SS304
SS316L
Standard:
SMS
3A
Availability:
Quantity:
Inquire Add to Basket

FERRULES FOR FOOD, DAIRY, AND BEVERAGE

Sanitary ferrules fittings made by stainless steel 304, 316L, ISO DIN SMS 3A standard from size 1/2″ to 10″

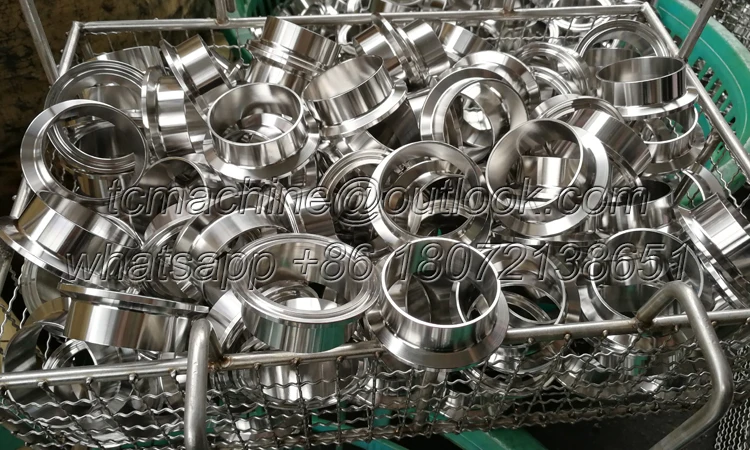

sanitary ferrules are precision-machined in CNC, sanitary ferrule fittings are conform to ISO, DIN, SMS and 3A standard

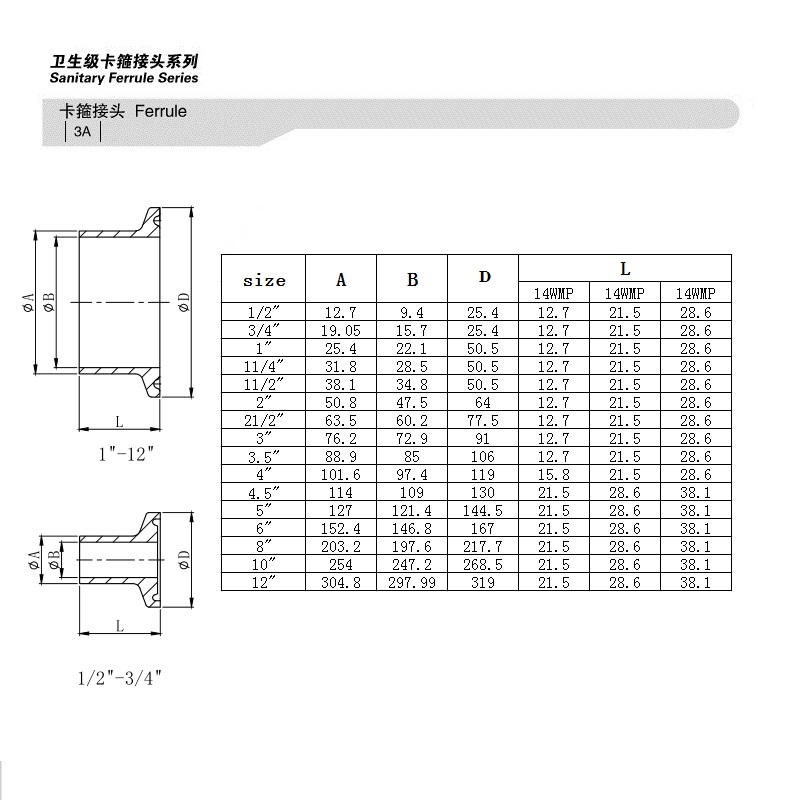

3A tri-clamp ferrule specification

3A tri-clamp ferrule ferrule

SMS standard ferrule dimension as below


Size
D1
D2
D3
D4
H mm
inch
mm
mm
mm
mm
mm
21.5
14AMP
1"
25.4
22.1
43.5
50.5
12.7
21.5
28.6
1.5"
38.1
34.8
43.5
50.5
12.7
21.5
28.6
2"
50.8
47.5
56.5
64
12.7
21.5
28.6
2.5"
63.5
60.2
70.5
77.5
12.7
21.5
28.6
3"
76.3
72.9
83.5
91
12.7
21.5
28.6
4"
101.6
97.6
110
119
15.9
21.5
28.6
...






the SMS standard ferrule 1"~4"can be stainless steel 304 material and SS316L material under reequest.
