IBC mixer with hydraulic lift stainless steel high speed mixer for IBC tote

hydraulic driven IBC mixer, for both low speed mixing and high speed mixing
0~3600rpm adjustable speed or fixed speed made to order
voltage:
220V 50Hz 1 phase
380V 50Hz 3phase
220V 60Hz 3 phase
415V 50Hz 3phase
other
motor power:
2.2kw
3kw
4kw
5.5kw
7.5kw
11kw
speed:
0~3000rpm
0~1450rpm
0~350rpm
0~180rpm
other speed range
impeller type:
folding blade
dispersing disk
propeller
impeller
Availability:
Quantity:
Inquire Add to Basket

IBC mixer (electric driven type)

Main specification

No.

Item

Specification

1

Model

HT3HV

HT4HV

HT5HV

2

Power

3kw

4kw

5.5kw

3

Voltage

380V   50Hz 3phase

380V   50Hz 3phase

380V   50Hz 3phase

4

Rotation torque

19.9N·m

26.3N·m

36.1N·m

5

Process ability

1000L

1000L

1000L

6

Max viscosity

3000cps

3000cps

8000cps

7

Working speed

0~1450rpm

0~1450rpm

0~1450rpm

8

Speed controller

VFD   control

VFD   control

VFD   control

9

Mixing shaft

25mm

25mm

25mm

10

Lift space

About   1m

About   1m

About   1m

11

Impeller qty

3   Nos

3   Nos

3   Nos

12

Impeller size

400-25

300-25

150-25   (disc)

400-25

300-25

150-25   (disc)

400-25

300-25

150-25   (disc)

13

Impeller material

SS304

SS304

SS304

14

Shaft material

SS304

SS304

SS304

15

Frame material

SS304

SS304

SS304

16

Packing size

132x99x128cm

132x99x128cm

132x99x128cm

17

Estimated weight

340kg

350kg

360kg

18

Unit price

3,350USD

3,420usd

3,480usd

here are some of our IBC mixer pictuers

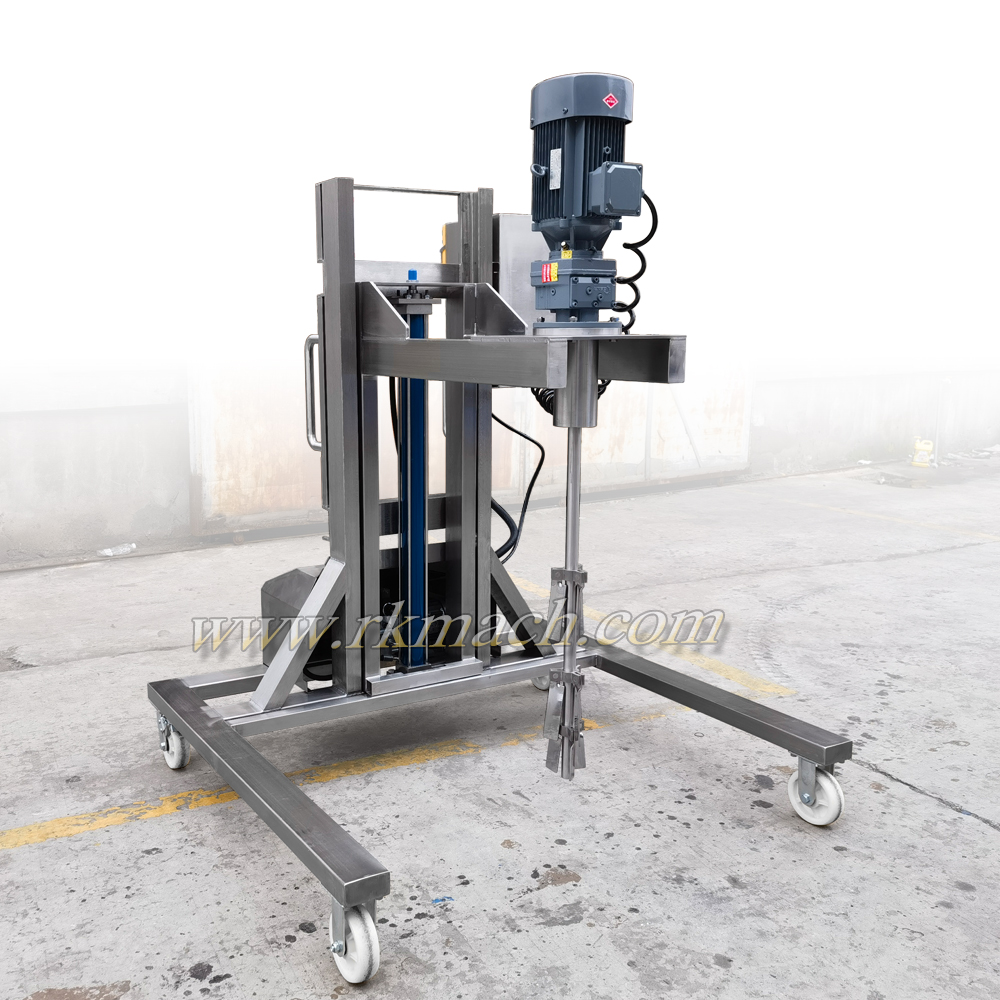

3kw IBC mixer FROM RANKING MACHINERY

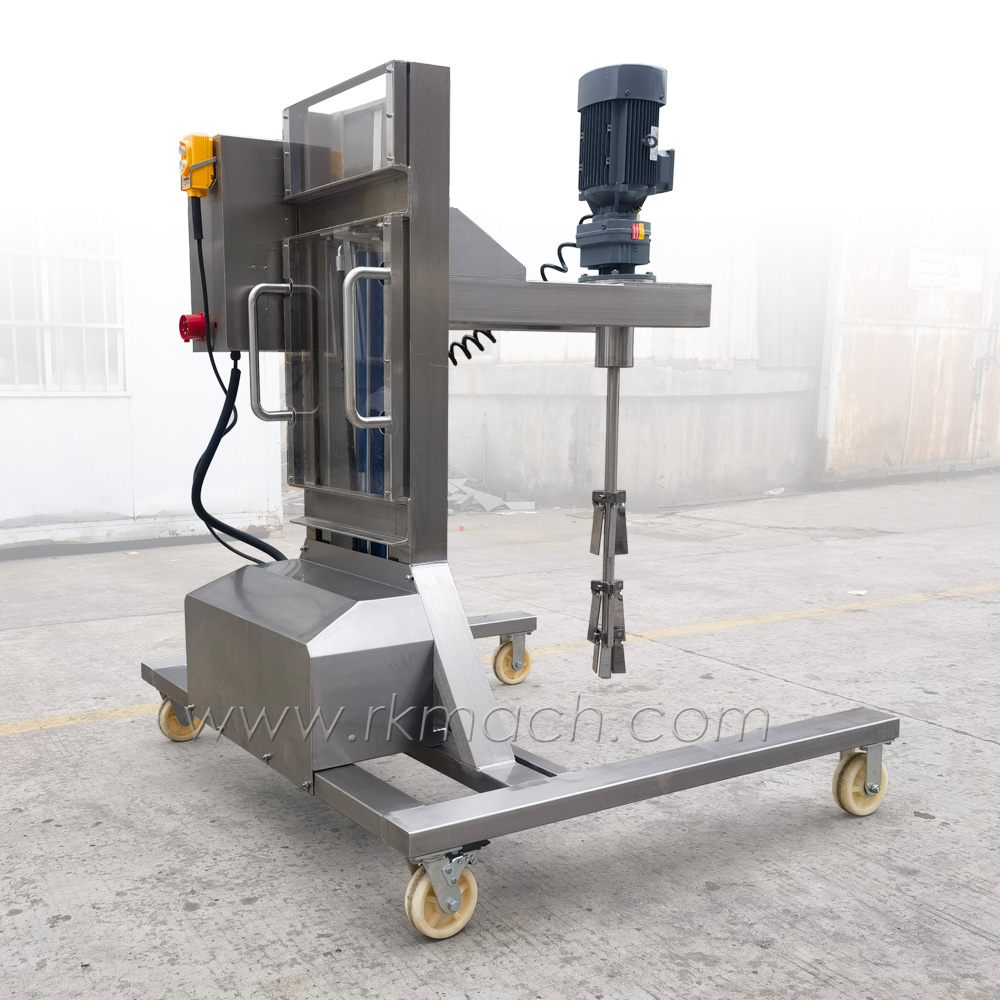

hydraulic IBC mixer

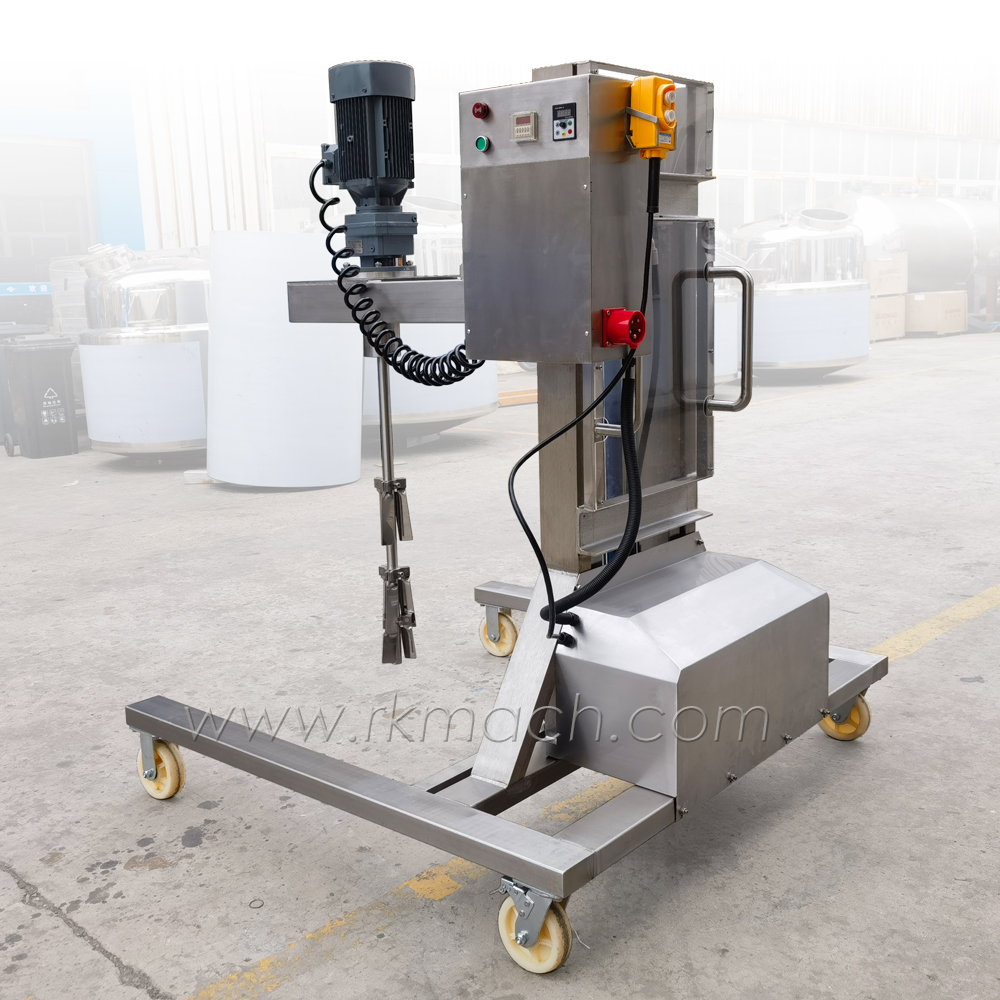

5.5HP IBC mixer

a video of high speed mixer (folding mixer) on lift stand

if you can not see the video, please cope the youtube video URL to your browser : https://youtu.be/veFYIu5n5iw
