| Motor power: | |
|---|---|
| MOC: | |
| Shaft Dia.: | |
| Quantity: | |
IBC mixer (pneumatic driven type)
Main features
① stainless steel contact part,
② 0~800rpm adjustable speed,
③ pneumatic driven motor,
④ 1/4~1HP motor power,
⑤ with 70~120cm stretchable bridge to fix the motor onto the IBC

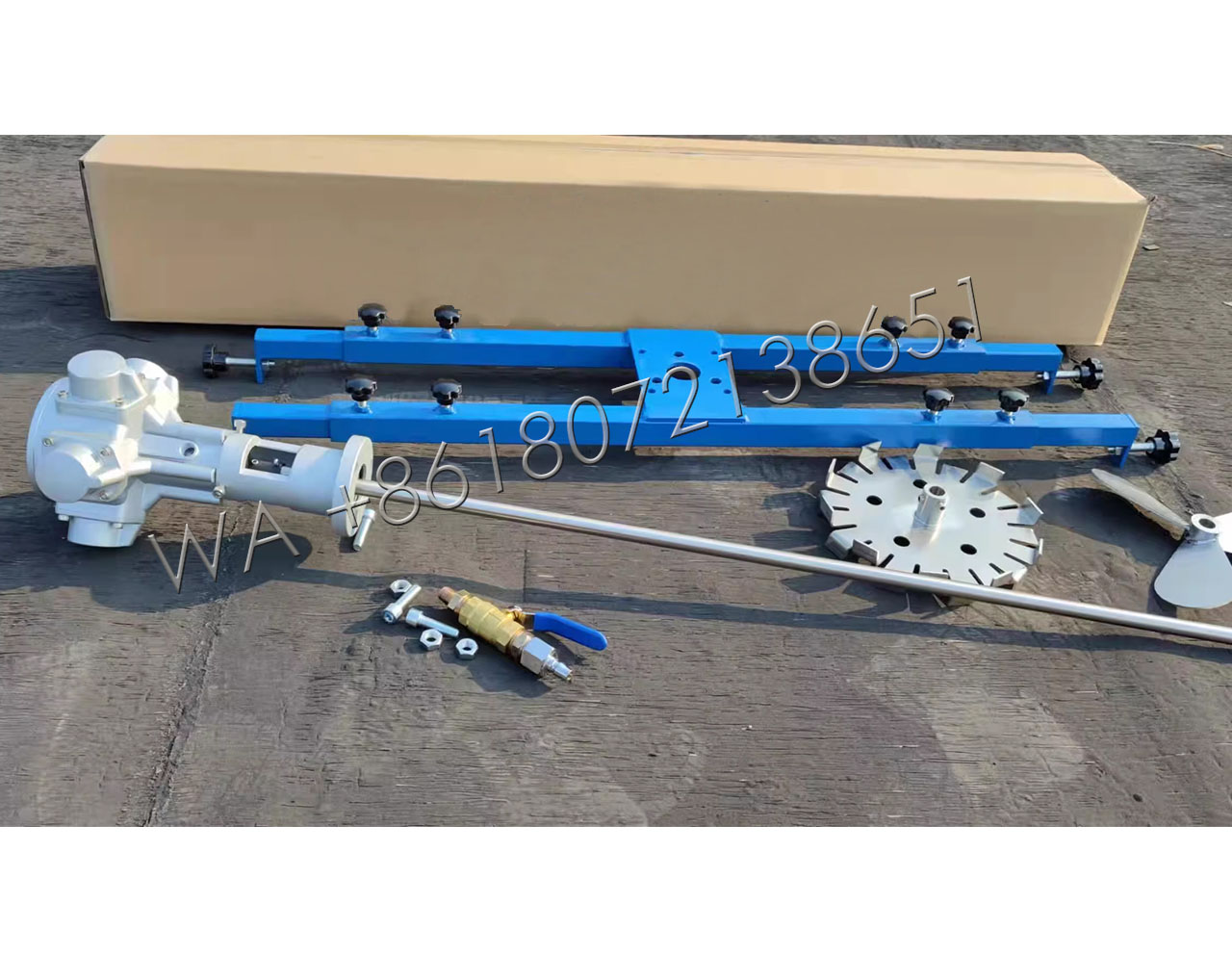

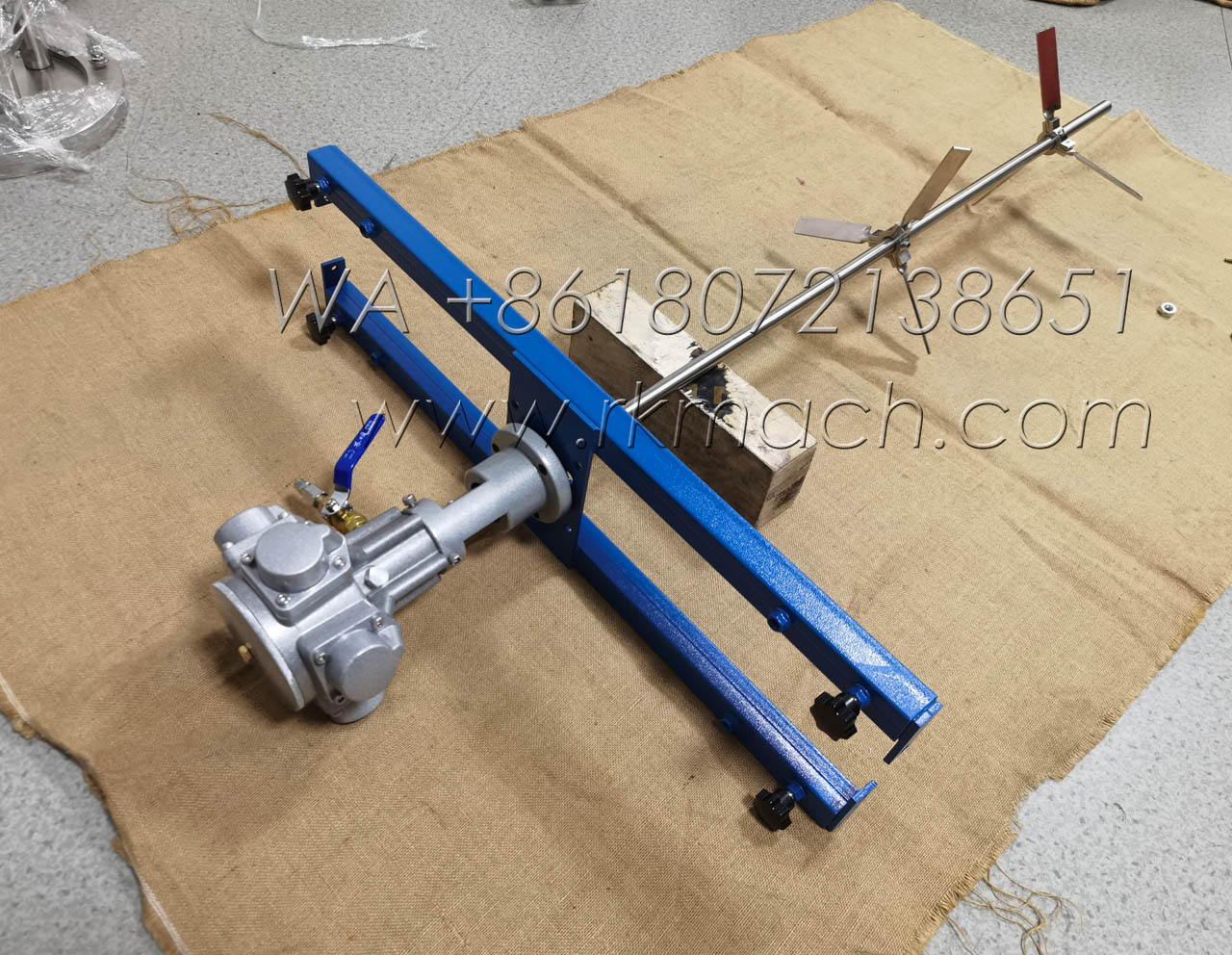

Product image
Applications:
mixing, dispersing, blending of oils, resins, solvents, waxes, adhesives, silicone, lotions, polymers, honey, juice concentrate, hair & bath gel, corn syrup, etc.
Package: carton or wooden case package suitable for sea transport and air transport.
the mixing baldes on our IBC mixer can be different to fit various drums and IBC totes | ||
Dispersing propeller |
Marine propeller |

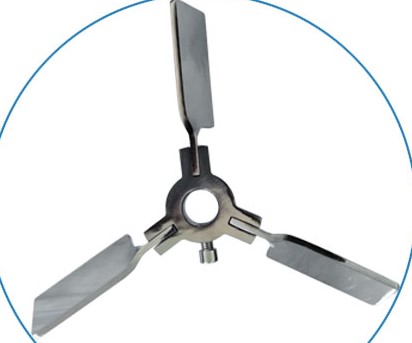

Folding propeller |
Users can choose one of the propeller type from the above 3 listed design. | ||
Specification:

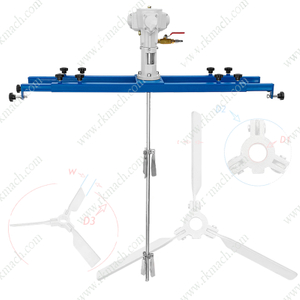

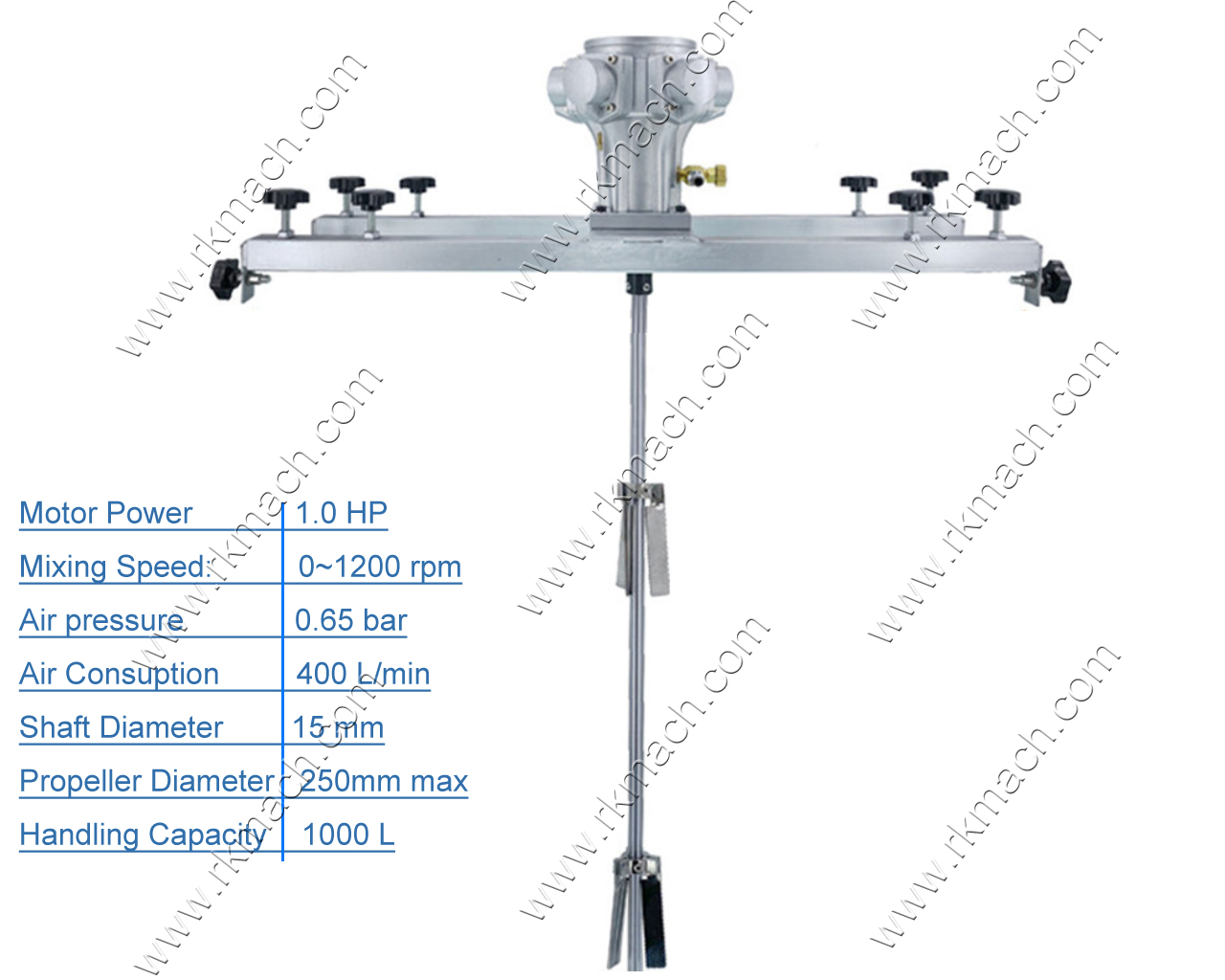

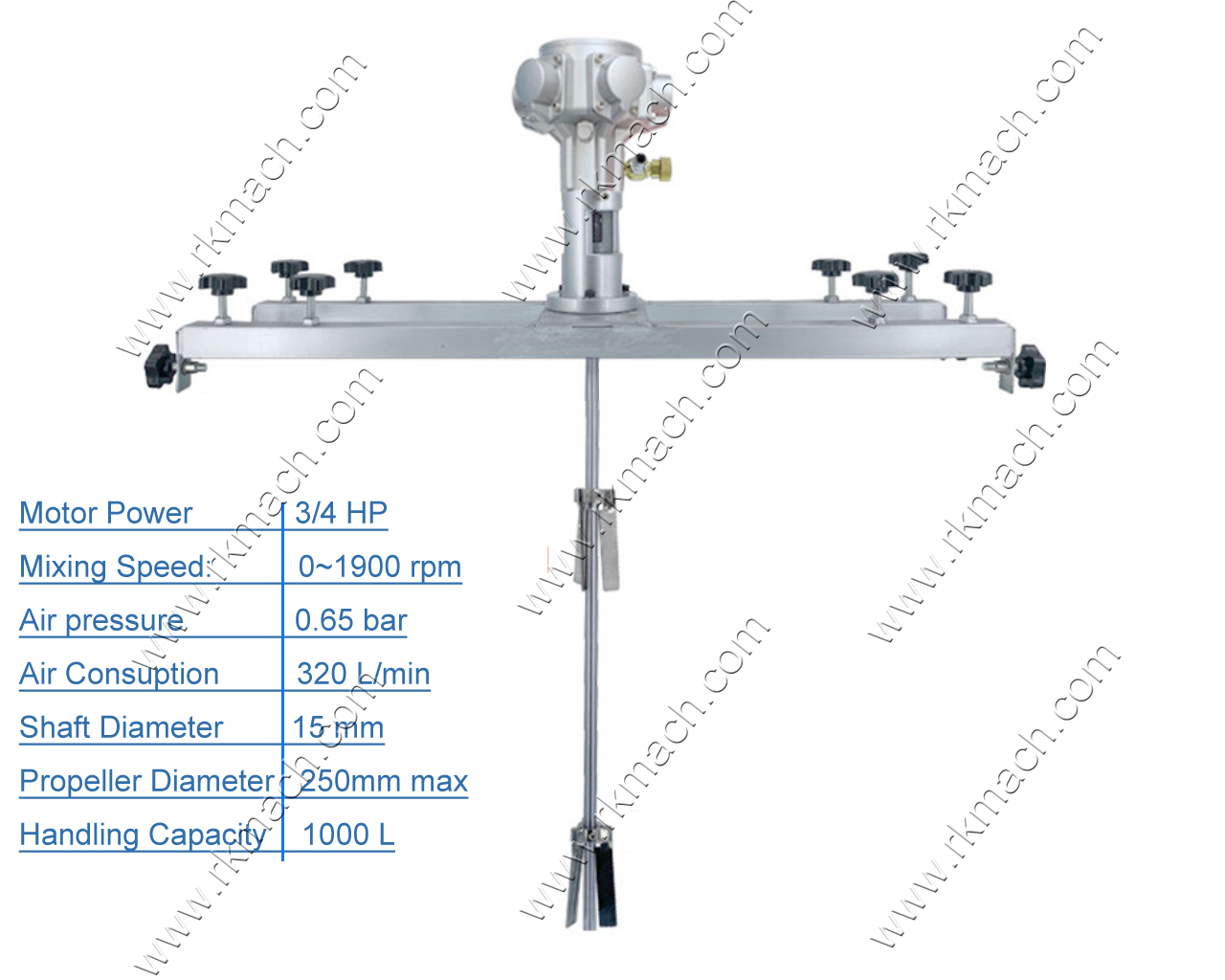

No. | Model | IBC-H5-1015 | IBC-H5S-3415 | IBC-H3S-1215 |
1 | Mixing capacity | 200~1000L | 200~1000L | 200~1000L |
2 | Suitable for | IBC tanks / drum | IBC tanks / drum | IBC tanks / drum |
3 | Mixing speed | 0~700rpm ideal Non-loading speed 1200rpm | 0~900rpm ideal Non-loading speed 1900rpm | 0~900rpm ideal Non-loading speed 2600rpm |

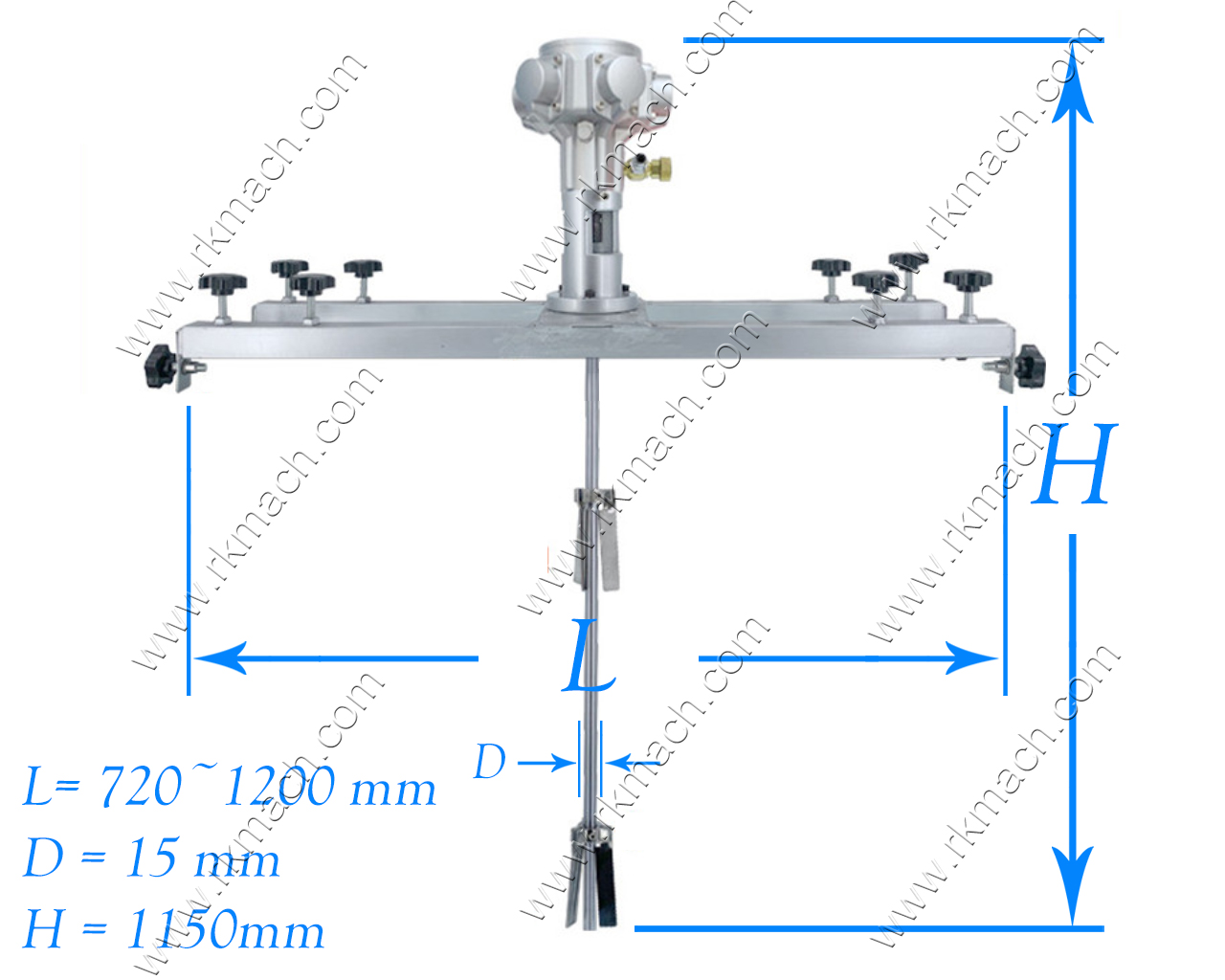

4 | Support type | Stretchable bridge 70~120cm | Stretchable bridge 70~120cm | Stretchable bridge 70~120cm |
5 | Support material | Carbon steel with anti-rust paint | Carbon steel with anti-rust paint | Carbon steel with anti-rust paint |
6 | Motor power | 1HP | 3/4HP | 1/2HP |
7 | Motor type | Piston type air motor | Piston type air motor | Piston type air motor |
8 | Shaft length | 900 mm | 900 mm | 900 mm |
9 | Shaft diameter | φ15 mm | φ15 mm | φ15 mm |
10 | Shaft material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
11 | Mixing propeller | 2 Nos folding propeller | 2 Nos folding propeller | 2 Nos folding propeller |
13 |
Lead time: 10 to 14 days based on order quantity.
Warranty: 12 months from the first day of use or the day goods arrived at user’s worksite.
