Jetstream Mixer High Shear Emulsifier
Product Description

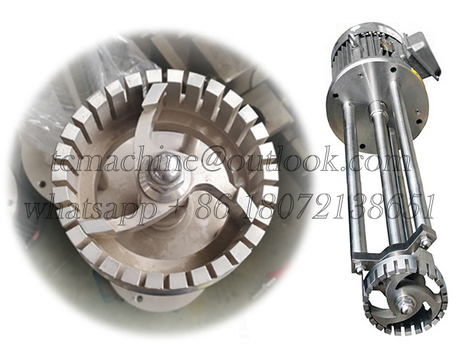

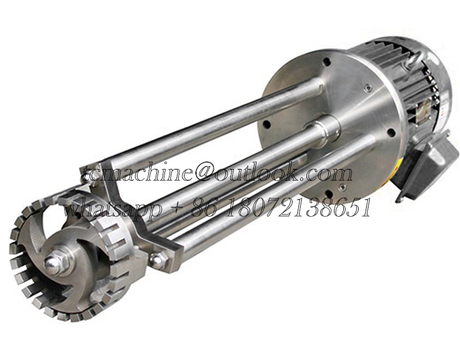

Jet Type High Shear Mixer disperses liquid, solid or gas into another liquid or gas, with which it would normally be immiscible. A rotor together with a stator is used either in a tank containing the solution to be mixed, or in a pipe through which the solution passes, to create shear. The products could be widely applied in cosmetics,food, beverage, chemical, pharmaceutical, paint & ink industry etc. Four types of different stators are suited to different working conditions.
jet type high shear emulsifier, industrial homo mixer
used on stainless steel mixing vessel / pressure vessel
220V / 380V / 415V voltage
contact part to be SS304 / SS316L
Specification
（please contact our sales team to get specification for other models of our high shear mixer)
No. | Description | Specification | |
1 | Model | ||
2 | Motor power | 3kw | 4kw |
3 | Voltage | 115V 60Hz single phase 220V 60Hz 3phase 380V 50Hz 3phase 415V 50Hz 3phase | |
4 | Motor Flange diameter | 250mm | |
5 | Install type | B35 | |
6 | Rotation speed | 3000rpm | |
7 | Shaft length mm | 700 | 750 |
8 | Contact part material | SS304 | |
9 | Process capacity | 100~200L | 100~300L |
10 | Working mode | Batch ype | |
11 | Unit price | ||
12 | Terms | FOB Ningbo China | |
